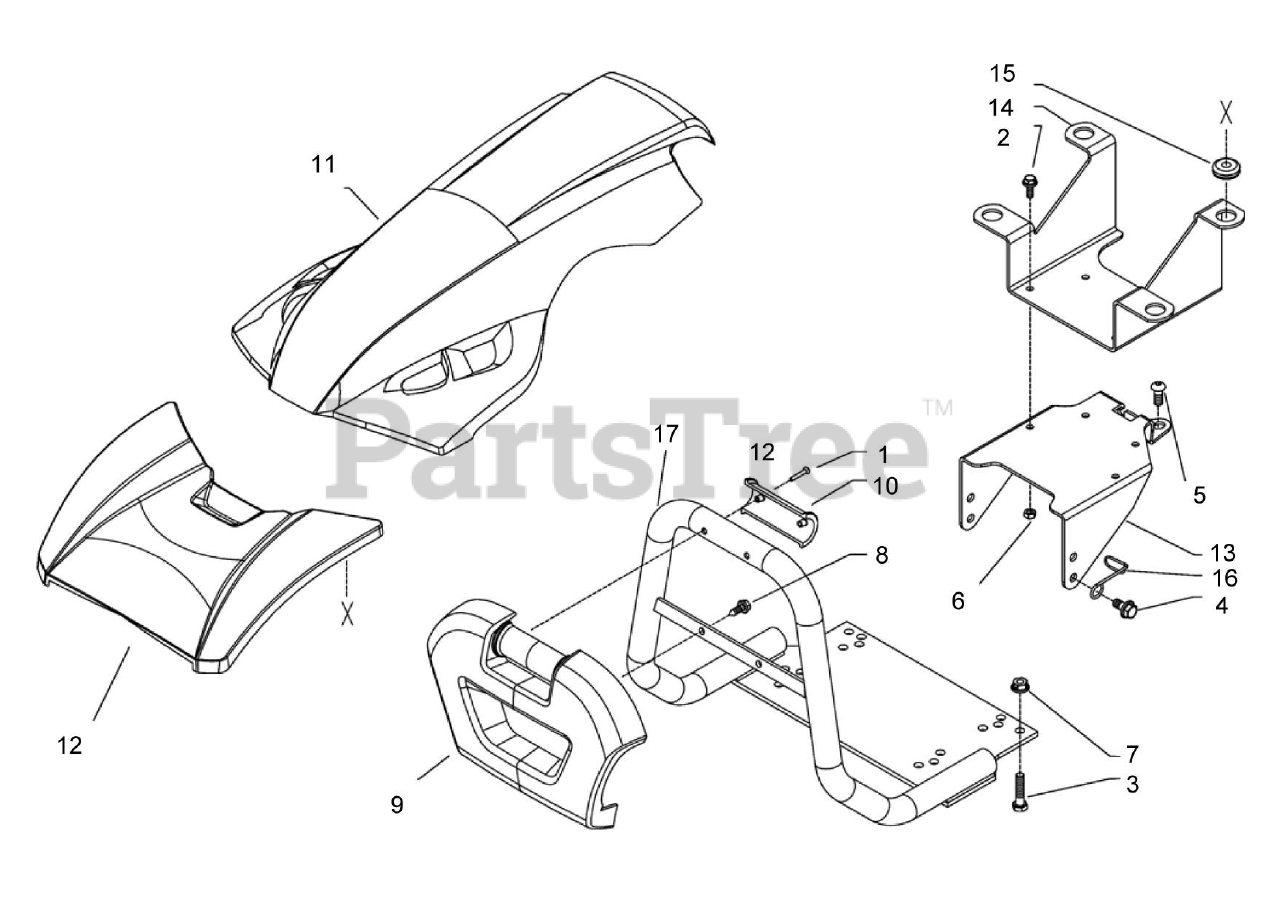

739 (739 PS) - BCS America Two-Wheeled Tractor, Power Safe Bumper & Accessories (SN: 918324 & 963639) Parts Diagram

Two-Wheeled Tractor, Power Safe

Bumper & Accessories (SN: 918324 & 963639) Parts Diagram

  • Title

1

BCS America 31100451

SCREW, 5X25

Note:

$0.99

$

In Stock, Qty 12

0

2

BCS America 31112085

SCREW, HEX M6X16

Note:

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 31112154

CAPSCREW, M8X40

Note:

$1.99

$

In Stock, Qty 5

0

4

BCS America 31112171

SCREW, TE M8X16

Note:

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31121008

SCREW, M10X16

Note:

$2.99

$

Usually ships in 5-8 days

0

6

BCS America 31241060

LOCKNUT, M6 STANDARD

Note:

$0.99

$

In Stock, Qty 8

0

7

BCS America 31241084

LOCKNUT, M8 FLANGED

Note:

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 31510100

SCREW ,TAPPING M6 3X19

Note:

$1.49

$

In Stock, only 2 left!

0

9

BCS America 55257521

BUMPER, FRONT

Note:

$58.99

$

Usually ships in 5-8 days

0

10

BCS America 55257522

HALF BEARING

Note:

$28.99

$

In Stock, only 1 left!

0

11

BCS America 55257620

COVER, HANDLE BAR

Note:

$125.99

$

Usually ships in 5-8 days

0

12

BCS America 55257621

GUARD, LOWER

Note:

$73.99

$

Usually ships in 5-8 days

0

13

BCS America 56156246N

BRACKET

Note:

$

$

Currently unavailable

14

BCS America 56157399

SUPPORT, GUARD

Note:

$81.99

$

Usually ships in 5-8 days

0

15

BCS America 58056991

SUPPORT, CAP BODY GUARD

Note:

$4.99

$

Usually ships in 5-8 days

0

16

BCS America 58057266

GUIDE, CABLE

Note:

$8.49

$

In Stock, only 1 left!

0

17

BCS America 59053021R

BUMPER HONDA GX340

Note:

$

$

Currently unavailable
