74022 (4000) - Toro 72" Z Master Zero-Turn Mower (SN: 412000000 - 414070031) Caster Wheel and Fork Assembly Parts Diagram

72" Z Master Zero-Turn Mower

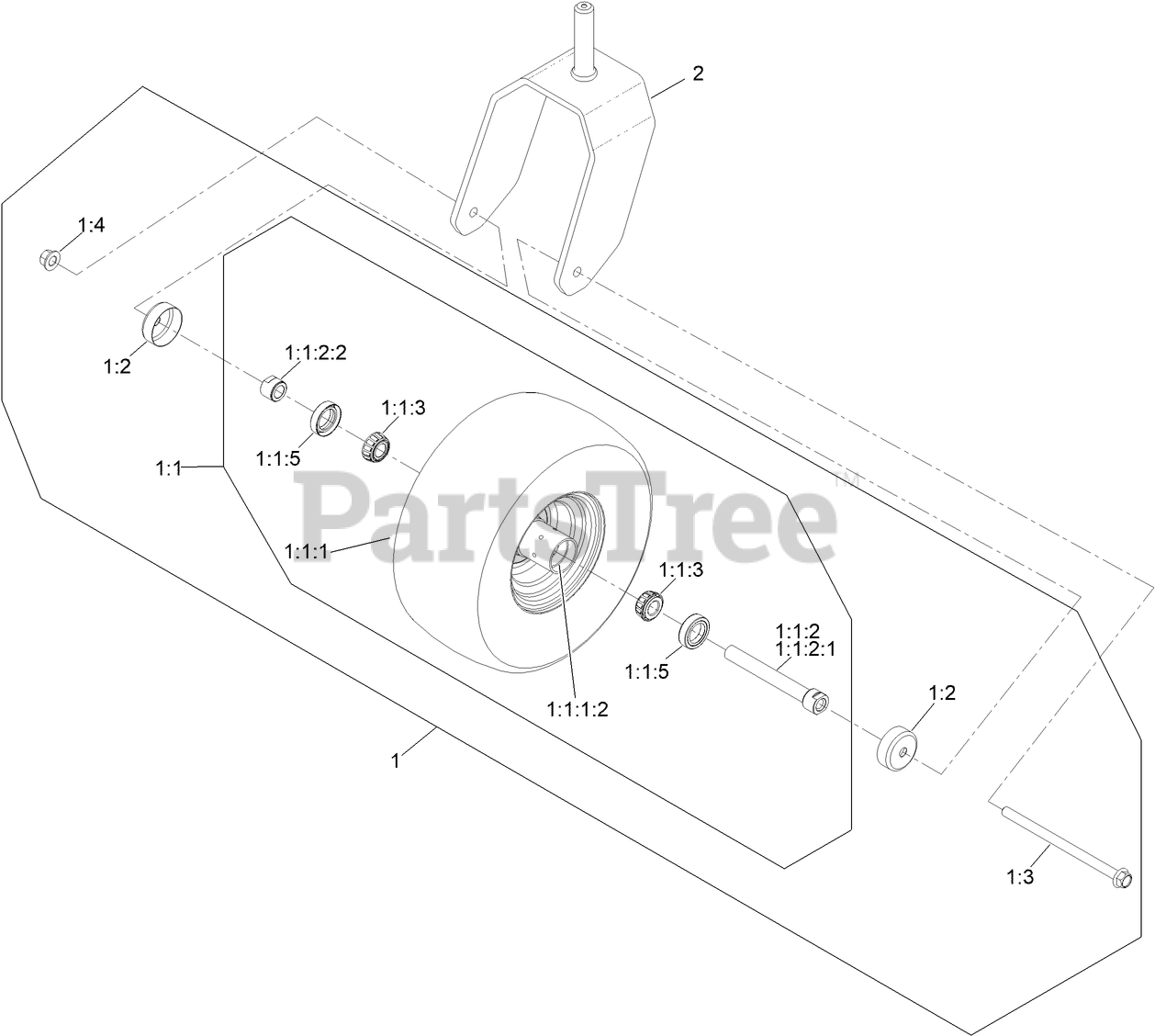

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Toro 145-1919

ASM-WHEEL BRGS AXLE 15X6.5-6

$363.99

$

Usually ships in 3-6 days

0

1:1

ASM WHL/BRGS 15X6.5-6

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 145-1921

WHEEL AND TIRE ASM 15X6.5-6 SP

$

$

Currently unavailable

1:1:1:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

1:1:2

CASTER AXLE ASM

Note: Not serviced separately

$

$

Not available

1:1:2:1

Toro 126-5220

AXLE-CASTER

$

$

Currently unavailable

1:1:2:2

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

1:1:3

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

1:1:5

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

1:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

1:3

Toro 126-5389

SCREW-HHF

$8.99

$

In Stock, Qty 20+

0

1:4

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

2

Toro 147-0295-01

15IN CASTER FORK

$147.99

$

In Stock, only 2 left!

0
