74028 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 999999999) Fuel System Assembly 2 Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

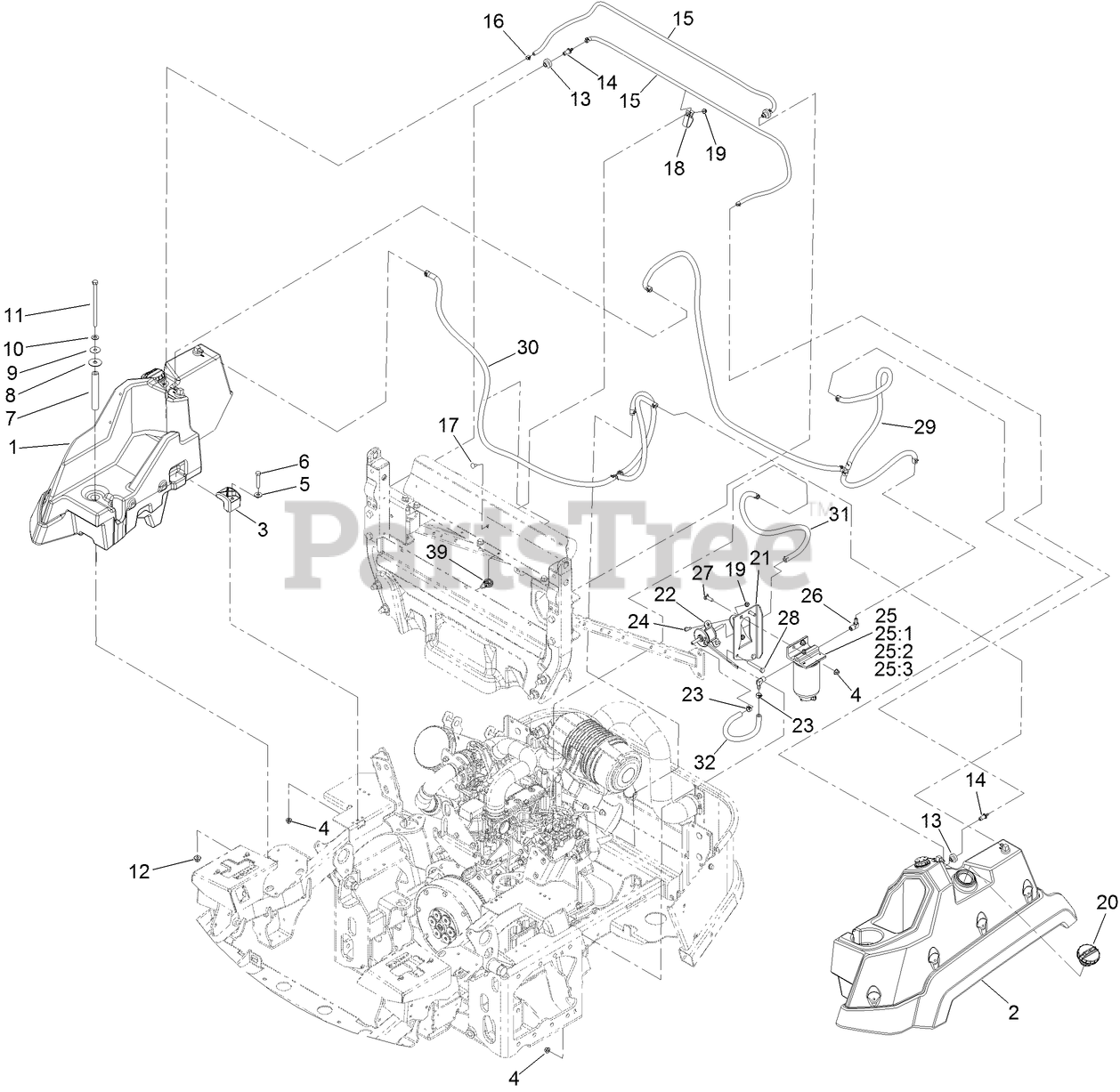

Fuel System Assembly 2 Parts Diagram

  • Title

1

Toro 126-8651

RH FUEL TANK ASM
(Superseded to 142-8638)

$387.99

$

Usually ships in 3-6 days

0

2

Toro 126-8652

LH FUEL TANK ASM

$460.99

$

Usually ships in 3-6 days

0

3

Toro 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 126-8335

TUBE-SPACER

$15.99

$

Usually ships in 3-6 days

0

8

Toro 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 8

0

9

Toro 105-6814

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-22

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

14

Toro 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

15

Toro 117-6395

HOSE-VENT, TANK

$20.99

$

Usually ships in 3-6 days

0

16

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

17

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 92-5753

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 135-2715

CAP-FUEL, DIESEL

$21.99

$

In Stock, Qty 6

0

21

Toro 135-0166-03

BRACKET-FILTER AND PUMP, FUEL

$31.99

$

Usually ships in 3-6 days

0

22

Toro 121-5613

PUMP-FUEL, ELECTRIC

$328.99

$

Usually ships in 3-6 days

0

23

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

24

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0

25

Toro 110-9044

SEPARATOR-FILTER

$98.99

$

Usually ships in 3-6 days

0

25

Toro 116-0290

FUEL FILTER ASM

$169.99

$

Usually ships in 3-6 days

0

25:1

Toro 110-9049

FILTER-SPIN ON

$32.99

$

In Stock, only 2 left!

0

25:2

Toro 116-0289

FILTER,FUEL

$58.99

$

In Stock, Qty 6

0

25:3

Toro 116-1559

DECAL-FILTER

$7.49

$

Usually ships in 3-6 days

0

26

Toro 353-781

FITTING-HYD, 90

$27.99

$

Usually ships in 3-6 days

0

27

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

28

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

29

Toro 135-0510

LINE-FUEL, SUCTION

$71.99

$

Usually ships in 3-6 days

0

30

Toro 135-0511

LINE-FUEL, RETURN

$67.99

$

Usually ships in 3-6 days

0

31

Toro 109-0308

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

32

Toro 110-4105

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

39

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0
