74035 (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 411435544 - 412599999) Electrical Assembly Parts Diagram

60" Z Master Zero-Turn Mower

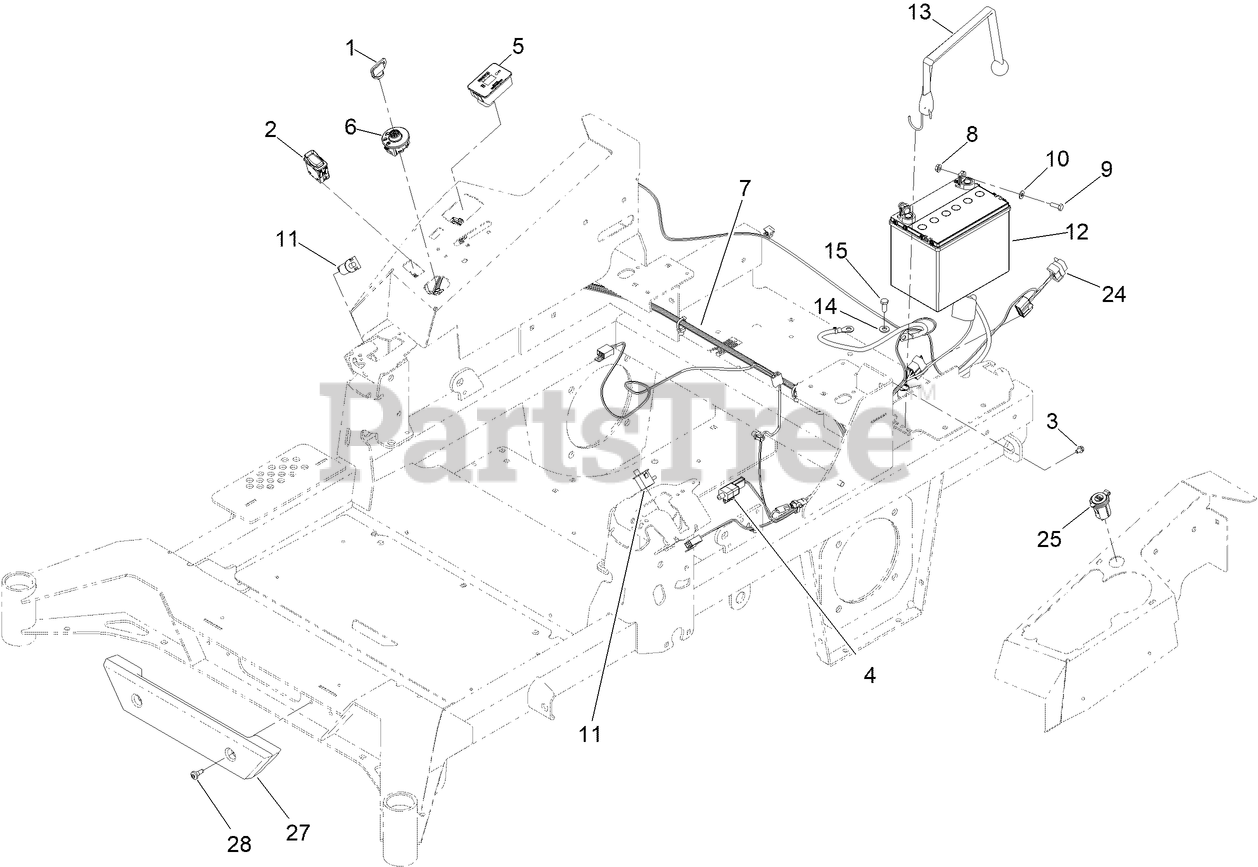

Electrical Assembly Parts Diagram

  • Title

1

Toro 1-603511

KEYS-IGNITION (SPARE PAIR)

$2.49

$

In Stock, Qty 20+

0

1

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

2

Toro 139-6368

SWITCH-ROCKER, ON-NONE-ON

$36.99

$

In Stock, Qty 12

0

3

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

4

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

5

Toro 116-5609

MODULE ASM

$174.99

$

In Stock, only 2 left!

0

6

Toro 137-4100

SWITCH-IGNITION

$29.99

$

In Stock, Qty 20+

0

7

Toro 139-8078

HARNESS-WIRE

$505.99

$

Usually ships in 3-6 days

0

8

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

12

Toro 104-8162

BATTERY-DRY

$

$

Not available

13

Toro 126-7627

STRAP-BUNGEE

$14.99

$

In Stock, only 3 left!

0

14

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

15

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 140-4960

HARNESS-WIRE, ADAPTER

$74.99

$

Usually ships in 3-6 days

0

25

Toro 140-7955

PORT-POWER, USB

$38.99

$

Usually ships in 3-6 days

0

27

Toro 140-4996

BUMPER-FRONT
(Superseded to 147-7852)

$41.99

$

Usually ships in 0 days

0

28

Toro 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0
