74041 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

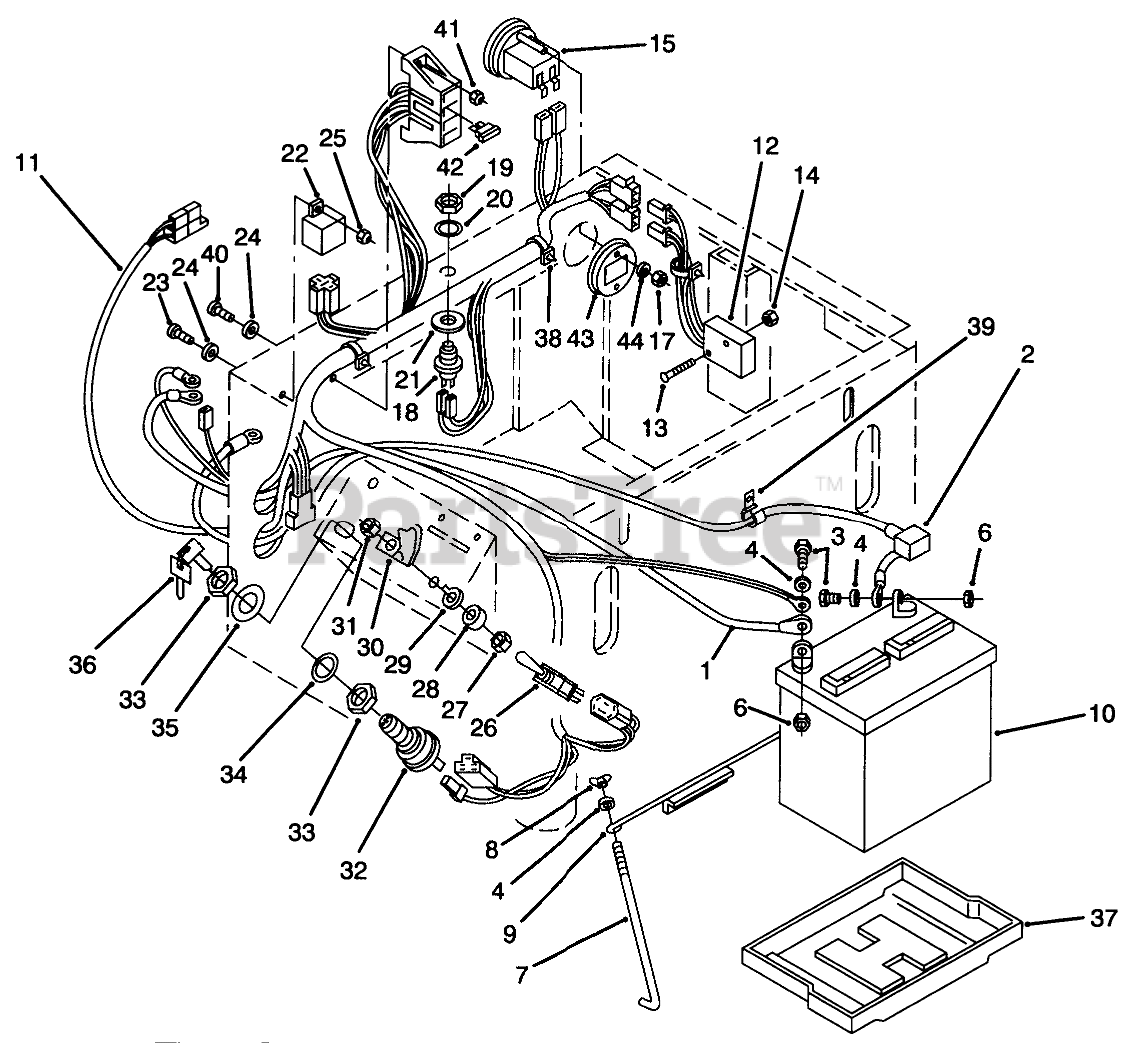

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 111075

WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 3 left!

0

8

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 1 left!

0

9

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

10

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

11

Toro 78-5840

WIRE HARNESS ASSY

$

$

Not available

12

Toro 116237

SWITCH-ASS'Y NEUTRAL

$

$

Not available

13

Toro 3250-23

SCREW-PPH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 78-0020

Hourmeter
(Superseded to 66-2950)

$

$

Not available

17

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

18

Toro 116194

SWITCH-PLUNGER

$

$

Not available

19

Toro 116238

HEX-NUT 5/8-24 F/W 116194

$7.99

$

Usually ships in 3-6 days

0

20

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

21

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

22

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

23

Toro 910794

BOLT

$

$

Not available

24

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 116716

SWITCH-TOGGLE DPDT

$83.99

$

In Stock, only 1 left!

0

27

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

28

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

30

Toro 113050

COVER-PTO SWITCH

$71.99

$

Usually ships in 3-6 days

0

31

Toro 113179

DISC

$

$

Not available

32

Toro 117292

SWITCH, KEY ASS'Y

$86.99

$

Usually ships in 3-6 days

0

33

Toro 116154

HEX-NUT 13/16 UNEF

$

$

Not available

34

Toro 920163

Washer-Lock
(Superseded to 117292)

$86.99

$

Usually ships in 3-6 days

0

35

Toro 920273

WASHER-SPECIAL

$

$

Not available

36

Toro 117048

KEY-PADDED TORO CUT

$17.99

$

Usually ships in 3-6 days

0

37

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

38

Toro 115860

CLIP-SNAP IN

$

$

Not available

Toro 115858

CLIP-SNAP IN

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

39

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

40

Toro 910794

BOLT

$

$

Not available

41

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 114594

FUSE-10 AMP

$

$

Not available

Toro 109101

FUSE-BLADE, 20 AMP

Note: Not illustrated

$2.49

$

In Stock, Qty 6

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

43

Toro 78-3320

CLAMP-HOUR METER

$10.99

$

Usually ships in 3-6 days

0

44

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0
