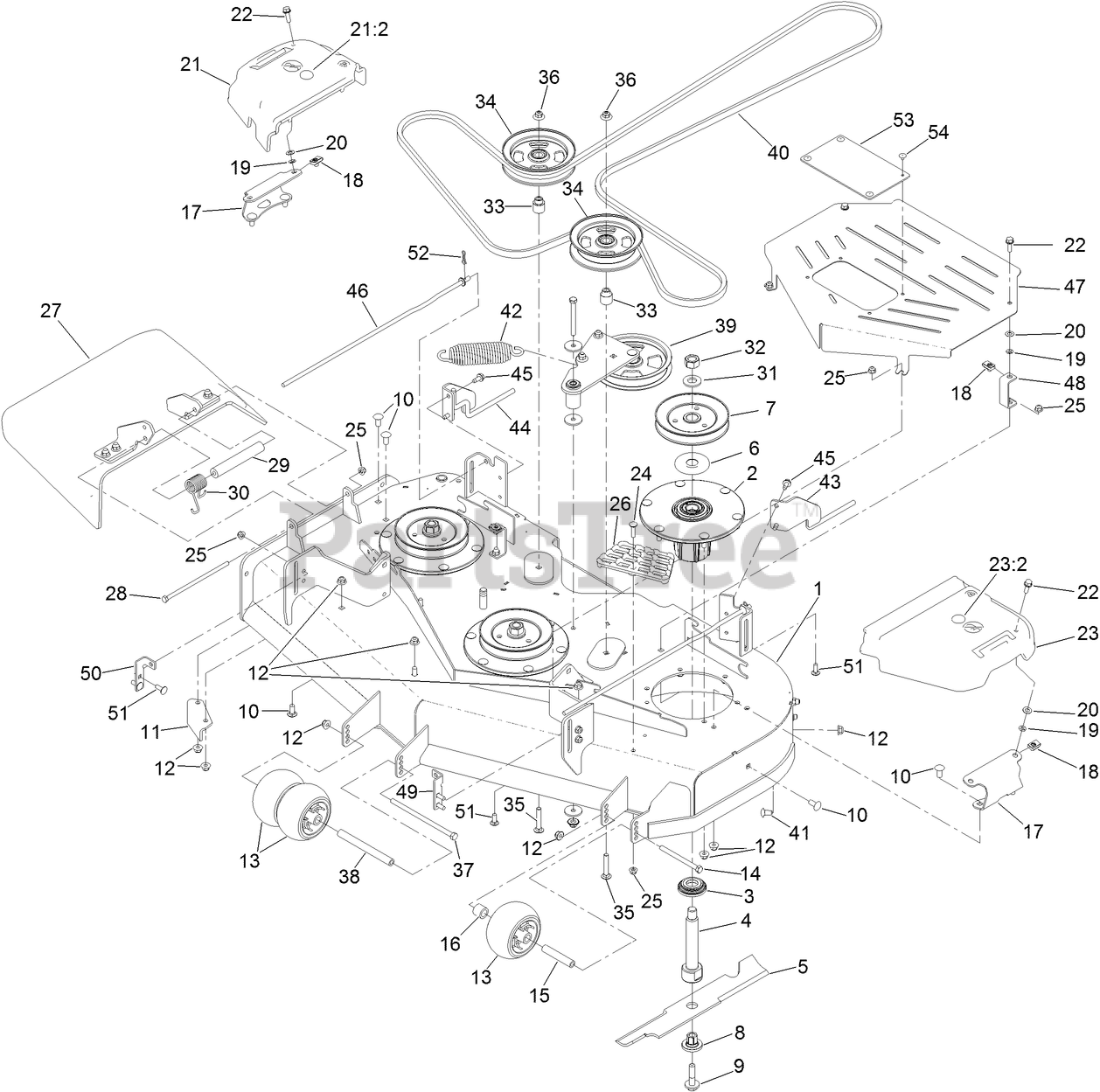

74048 TE (4000) - Toro 122cm Z Master Zero-Turn Mower (SN: 410170000 - 411435567) Deck Assembly Parts Diagram

122cm Z Master Zero-Turn Mower

Deck Assembly Parts Diagram

  • Title

1

Toro 144-6586

DECK DECAL ASM

$1608.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$156.99

$

In Stock, Qty 7

0

3

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, Qty 12

0

4

138-6045

SHAFT-SPINDLE

$

$

Not available

5

Toro 140-1243

BLADE-16.50 HIGH FLOW

$35.99

$

In Stock, Qty 16

0

6

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 20+

0

7

Toro 138-6065

SHEAVE,BLADE DRIVE 5.91

$23.99

$

In Stock, only 2 left!

0

8

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

9

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

10

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

11

Toro 107-8541-01

BAFFLE-DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

14

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

15

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

16

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

17

Toro 126-9121-01

BRACKET-COVER, BELT

$33.99

$

Usually ships in 3-6 days

0

18

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

0

19

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

21

Toro 117-7813

RH BELT COVER ASM

$44.99

$

Usually ships in 3-6 days

0

21:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Toro 117-7814

LH BELT COVER ASM

$44.99

$

Usually ships in 3-6 days

0

23:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

24

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

27

Toro 144-2635

RUBBER DEFLECTOR ASM

$175.99

$

Usually ships in 3-6 days

0

28

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 10

0

29

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

30

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

31

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

32

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

33

Toro 139-8061

BUSHING, IDLER

$6.99

$

In Stock, Qty 12

0

34

Toro 132-9425

PULLEY-IDLER, FLAT

$49.99

$

In Stock, Qty 20+

0

35

Toro 3231-7

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

36

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 15

0

38

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

39

Toro 139-1087

IDLER ARM ASM

$152.99

$

In Stock, only 1 left!

0

40

Toro 144-0358

BELT-V

$176.99

$

Usually ships in 3-6 days

0

41

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

42

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

43

Toro 140-4913

SUPPORT-LOWER LH

$192.99

$

Usually ships in 3-6 days

0

44

Toro 140-4914

SUPPORT-LOWER RH

$192.99

$

Usually ships in 3-6 days

0

45

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

46

Toro 140-8027

ROD-SKIRT, LOWER

$32.99

$

Usually ships in 3-6 days

0

47

Toro 145-1266-03

GUARD-CENTER BELT 48

$165.99

$

Usually ships in 0 days

0

48

Toro 126-9646

BRACKET-GUARD

$28.99

$

Usually ships in 3-6 days

0

49

Toro 140-8032

BRACKET-SUPPORT, LH

$18.99

$

Usually ships in 3-6 days

0

50

Toro 140-8033

BRACKET-SUPPORT, RH

$18.99

$

Usually ships in 3-6 days

0

51

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

52

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 5

0

53

Toro 144-0420

SHIELD-RUBBER

$18.99

$

Usually ships in 3-6 days

0

54

Toro 132-5064

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0
