74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 400000000 - 409999999) Frame Assembly Parts Diagram

96" Z Master Zero-Turn Mower

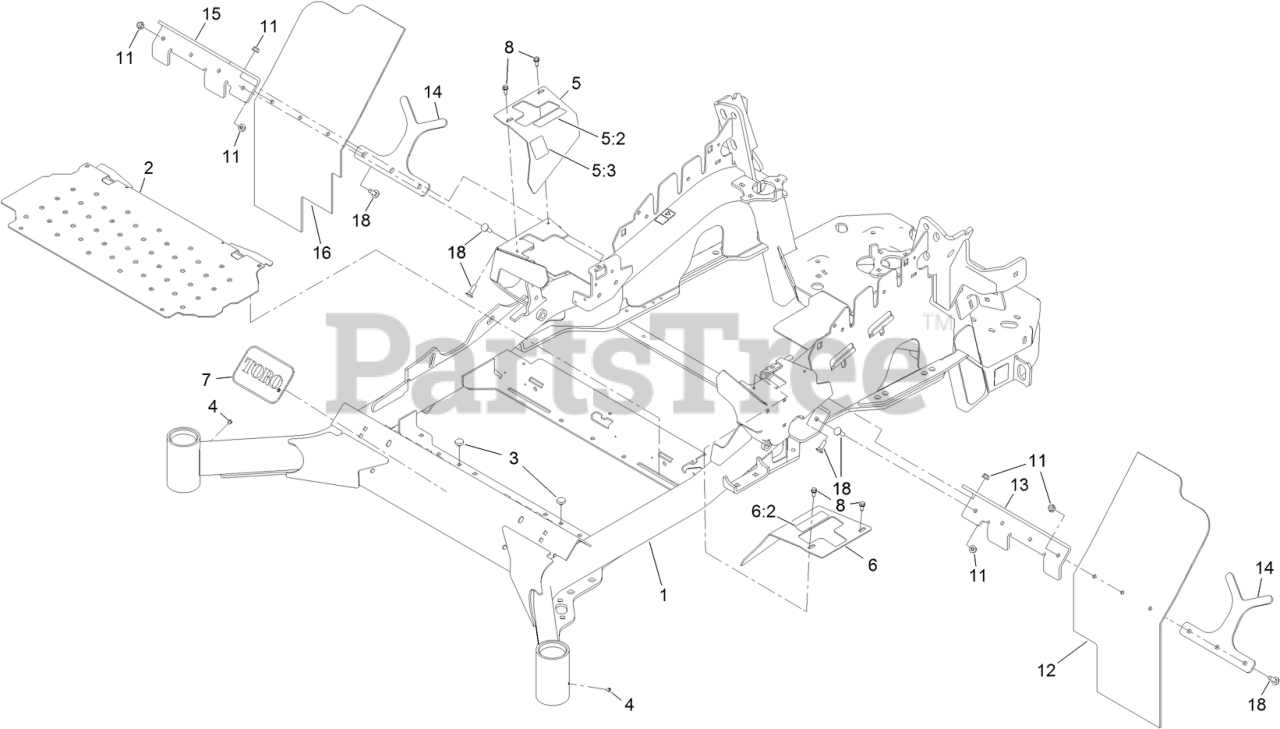

Frame Assembly Parts Diagram

  • Title

1

Toro 142-2671

MAINFRAME ASM

$3858.99

$

Usually ships in 3-6 days

0

2

Toro 116-8898-01

FLOORPAN

$118.99

$

Usually ships in 3-6 days

0

3

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

4

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

5

Toro 116-5899

RH MOTION CONTROL COVER ASM

$54.99

$

In Stock, only 2 left!

0

5:2

Toro 99-8936

DECAL-CONTROL, MOTION

$25.99

$

Usually ships in 3-6 days

0

5:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

6

Toro 116-0580

LH MOTION CONTROL COVER ASM

$31.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-8936

DECAL-CONTROL, MOTION

$25.99

$

Usually ships in 3-6 days

0

7

Toro 68-3640

DECAL

$22.99

$

In Stock, Qty 9

0

8

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 135-4947

MUD FLAP

$49.99

$

Usually ships in 3-6 days

0

13

Toro 135-4950-03

BRACKET-MUD FLAP, LH

$44.99

$

Usually ships in 3-6 days

0

14

Toro 135-4952-03

SUPPORT-MUD FLAP, REAR

$28.99

$

Usually ships in 3-6 days

0

15

Toro 135-4955-03

BRACKET-MUD FLAP, RH

$44.99

$

Usually ships in 3-6 days

0

16

Toro 135-4957

MUD FLAP

$49.99

$

Usually ships in 3-6 days

0

18

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0
