74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 400000000 - 409999999) Power Unit Assembly No. 135-1582 Parts Diagram

96" Z Master Zero-Turn Mower

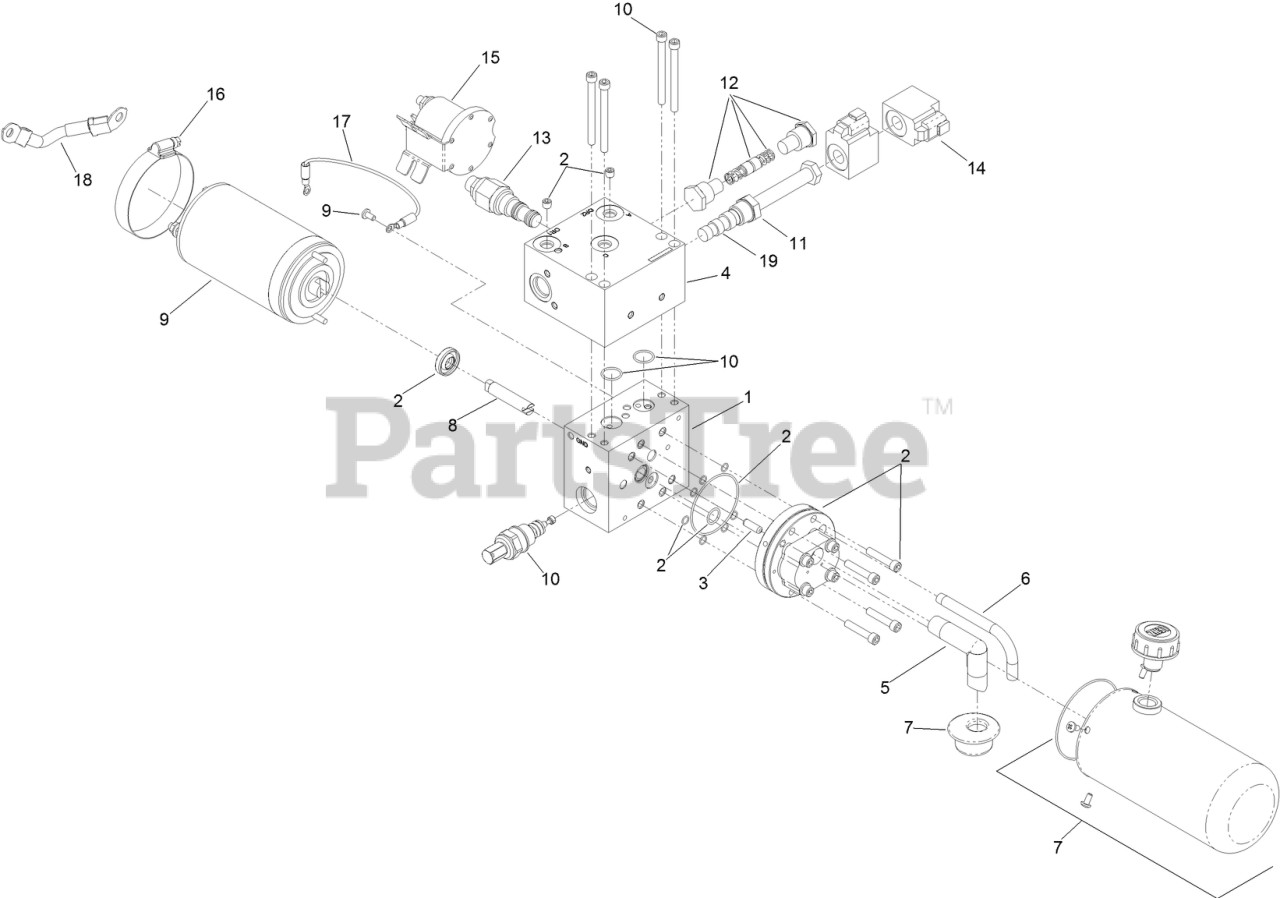

Power Unit Assembly No. 135-1582 Parts Diagram

  • Title

1

Toro 135-7603

BASE ASSY, M3298, 3.0 MTR

$539.99

$

Usually ships in 3-6 days

0

2

Toro 135-7604

P ASSY,KIT,I,M3298,-100

$402.99

$

Usually ships in 3-6 days

0

3

Toro 135-7605

PIN, DOWEL, 1/4 X 3/4

$1.99

$

Usually ships in 3-6 days

0

4

Toro 135-7606

VALVE,RELIEF,VM01,210-320 BAR

$106.99

$

Usually ships in 3-6 days

0

5

Toro HYD09361

INLET TUBE,BU

$3.49

$

Usually ships in 3-6 days

0

6

Toro 135-7608

TUBE, RETURN, 90DEG, 1/8NPTF

$12.99

$

Usually ships in 3-6 days

0

7

Toro 135-7609

PARTS KIT,RESV,STL,3.375 X 7.0

$293.99

$

Usually ships in 3-6 days

0

8

Toro 135-7610

SHAFT, INTERMEDIATE, MICRO, DC

$106.99

$

Usually ships in 3-6 days

0

9

Toro 135-7611

MOTOR, DC, 12V, 3IN, 1 TERM

$734.99

$

Usually ships in 3-6 days

0

10

Toro 135-7612

PARTS KIT,MANIFOLD ASSY,M3200

$928.99

$

Usually ships in 3-6 days

0

11

Toro 135-7613

CARTRIDGE, 4W/3P, 3000PSI, MC, #8

$439.99

$

Usually ships in 3-6 days

0

12

Toro 135-7614

PARTS KIT,DBL PO CK VLV,4INMAN

$440.99

$

Usually ships in 3-6 days

0

13

Toro 135-7615

COUNTERBALANCE, 08, 5000-PSI

$250.99

$

Usually ships in 3-6 days

0

14

Toro 135-7616

COIL, 12VDC, 16W, RECT, DEUTSCH

$156.99

$

Usually ships in 3-6 days

0

15

Toro HYD13624

POWER UNIT SOLENOID KIT,ATV/MS-UTV

$102.99

$

Usually ships in 3-6 days

0

16

Toro HYD13634

CLAMP,HOSE,WORM GR,2.3-3.25

$30.99

$

Usually ships in 3-6 days

0

17

Toro 135-7619

WIRE ASSY, CNTRL, 16AWG, HS, RING

$28.99

$

Usually ships in 3-6 days

0

18

Toro 135-7620

CABLE, INSULATED, W/LUGS, 5IN, 6GA

$44.99

$

Usually ships in 3-6 days

0

19

Toro 135-7880

PARTS KIT, SEAL, 4W/3P VALVE

$77.99

$

Usually ships in 3-6 days

0

99

Toro 135-2834

RUBY TRAN-1 GAL

Note: Not illustrated

$

$

Not available

99

Toro 135-2834

RUBY TRAN-1 GAL

Note: Optional Equipment

$

$

Not available
