74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Electrical Harness Assembly No. 142-8168 Parts Diagram

96" Z Master Zero-Turn Mower

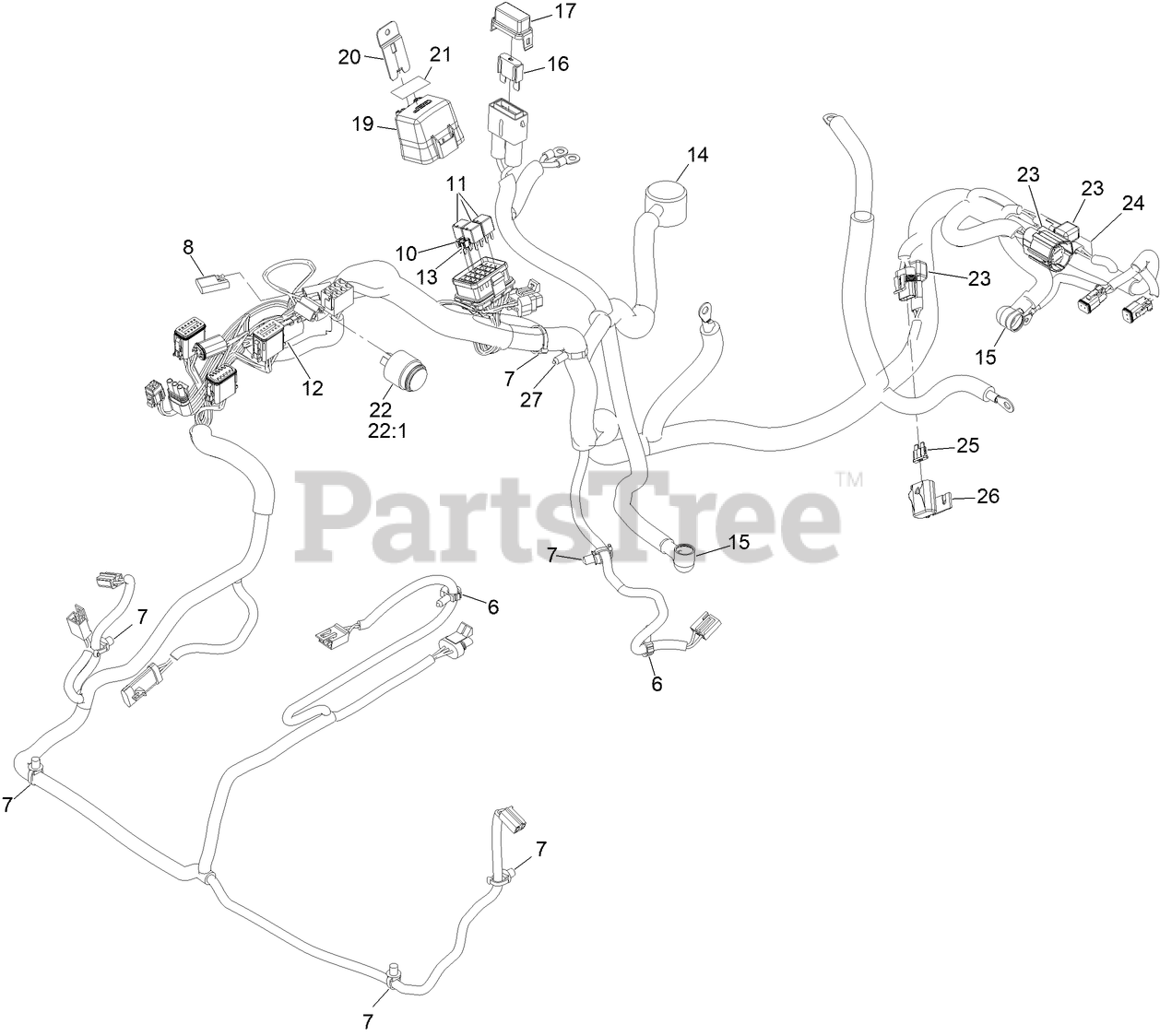

Electrical Harness Assembly No. 142-8168 Parts Diagram

  • Title

6

Toro 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

7

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

0

8

Toro 32180-197

CAP-PLUG

$18.99

$

In Stock, only 1 left!

0

10

Toro 121-8868

FUSE-MINI BLADE, 20 AMP

$6.49

$

Usually ships in 3-6 days

0

11

Toro 126-3991

RELAY-MICRO

$43.99

$

In Stock, Qty 11

0

12

Toro 32180-156

CAP-PLUG, 6 WAY

$10.99

$

Usually ships in 3-6 days

0

13

Toro 121-8867

FUSE-MINI BLADE, 15 AMP

$1.49

$

Usually ships in 3-6 days

0

14

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 2 left!

0

15

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

16

Toro 94-8002

FUSE-BLADE, 50 AMP

$28.99

$

Usually ships in 3-6 days

0

17

Toro 32181-014

COVER-FUSE HOLDER, MAXI

$26.99

$

In Stock, only 2 left!

0

19

Toro 32181-013

COVER-FUSEBLOCK, 24F, GEP

$27.99

$

Usually ships in 0 days

0

20

Toro 32180-177

CLIP-MOUNTING

$5.99

$

In Stock, only 1 left!

0

21

Toro 135-7226

DECAL-FUSE

$

$

Currently unavailable

22

Toro 80-9330

AUDIO ALARM ASM

$155.99

$

Usually ships in 3-6 days

0

22:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

23

Toro 100-4918

DIODE

$23.99

$

In Stock, Qty 12

0

24

Toro 135-1366

RESISTOR - 30K OHMS 2W 5% OVERMOLDED

$9.99

$

Usually ships in 3-6 days

0

25

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 12

0

26

Toro 32180-019

COVER-FUSE, SINGLE

$4.49

$

Usually ships in 3-6 days

0

27

Toro 32180-067

CLIP-HARNESS,TUBING (16MM)

$

$

Currently unavailable
