74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 414087804 - 415299999) Frame Assembly Parts Diagram

96" Z Master Zero-Turn Mower

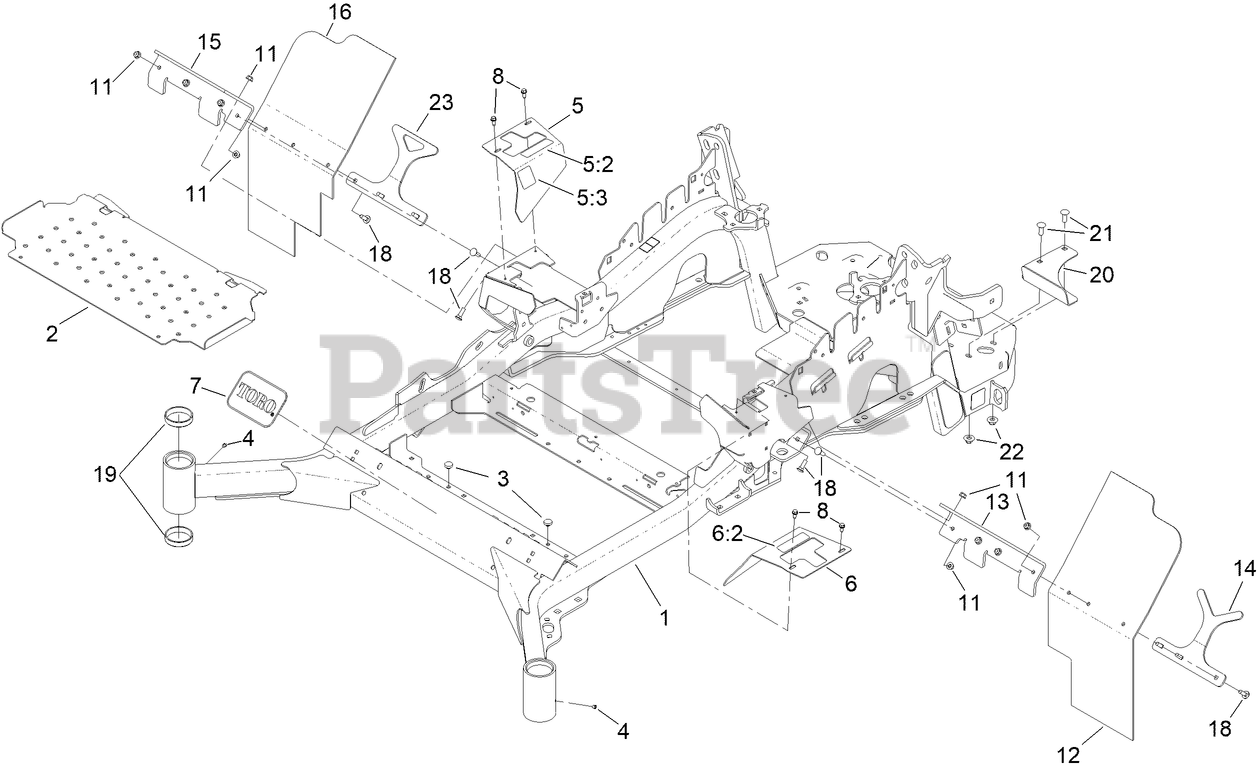

Frame Assembly Parts Diagram

  • Title

1

Toro 142-2671

MAINFRAME ASM

$3750.99

$

Usually ships in 3-6 days

0

2

Toro 142-2872-01

FLOOR PAN

$314.99

$

Usually ships in 3-6 days

0

3

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

4

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

5

Toro 116-5899

RH MOTION CONTROL COVER ASM

$52.99

$

Usually ships in 3-6 days

0

5:2

Toro 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

5:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

6

Toro 116-0580

LH MOTION CONTROL COVER ASM

$29.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

7

Toro 68-3640

DECAL

$21.99

$

In Stock, Qty 16

0

8

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 20+

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 135-4947

MUD FLAP

$46.99

$

Usually ships in 3-6 days

0

13

Toro 135-4950-03

BRACKET-MUD FLAP, LH

$41.99

$

Usually ships in 3-6 days

0

14

Toro 135-4952-03

SUPPORT-MUD FLAP, REAR

$26.99

$

Usually ships in 3-6 days

0

15

Toro 135-4955-03

BRACKET-MUD FLAP, RH

$41.99

$

Usually ships in 3-6 days

0

16

Toro 135-4957

MUD FLAP

$46.99

$

Usually ships in 3-6 days

0

18

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

19

Toro 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 17

0

20

Toro 142-2927-01

SHIELD-HEAT

$21.99

$

Usually ships in 3-6 days

0

21

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

22

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 142-3344-03

SUPPORT-MUD FLAP RH

$27.99

$

Usually ships in 3-6 days

0
