74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 418000000 - 999999999) Center Deck Hydraulic and Electrical Assembly Parts Diagram

96" Z Master Zero-Turn Mower

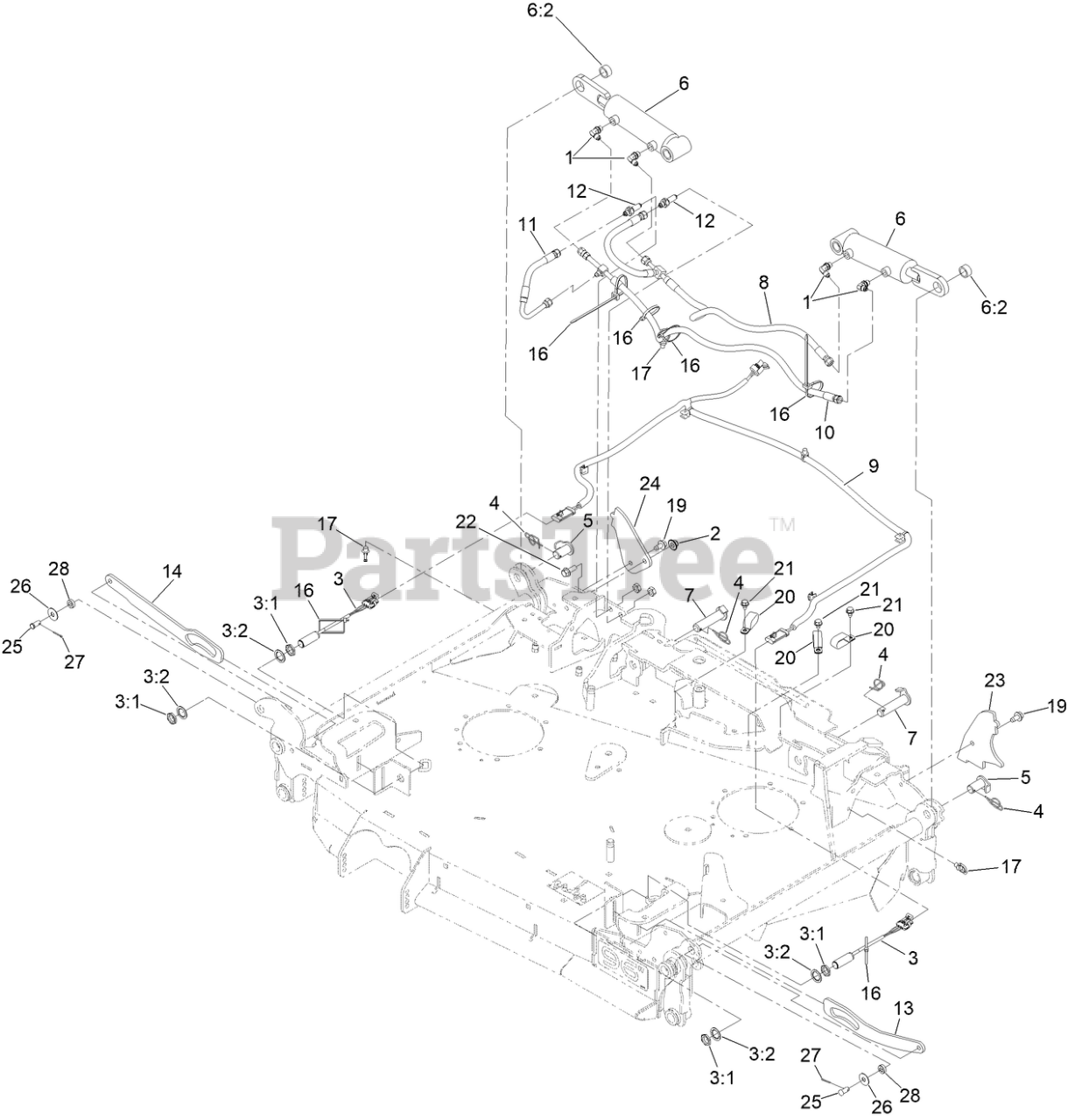

Center Deck Hydraulic and Electrical Assembly Parts Diagram

  • Title

1

Toro 109-0760

Adapter, 90?

$28.99

$

Usually ships in 3-6 days

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 20+

0

3:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

3:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

In Stock, only 4 left!

0

4

Toro 142-4002

PIN-LOCKING COTTER

$2.99

$

In Stock, Qty 5

0

5

Toro 142-3999

PIN-CYLINDER

$36.99

$

In Stock, Qty 5

0

6

Toro 142-6609

CYL-DECK FOLD

$711.99

$

In Stock, only 2 left!

0

6:2

Toro 142-5808

BUSHING-0.75X1.00X0.50 LONG

$21.99

$

In Stock, Qty 14

0

7

Toro 142-5437

ASM-CYL PIN BASE

$36.99

$

Usually ships in 3-6 days

0

8

Toro 142-6790

HOSE ASM

$258.99

$

Usually ships in 3-6 days

0

9

Toro 146-4773

HARNESS-WIRE

$

$

Currently unavailable

10

Toro 142-6789

HOSE ASM

$235.99

$

Usually ships in 3-6 days

0

11

Toro 135-4526

HOSE ASM

$101.99

$

Usually ships in 3-6 days

0

12

Toro 135-5077

FITING-STRAIGHT

$19.99

$

Usually ships in 3-6 days

0

13

Toro 146-4575

STRAP- LH FLAG

$

$

Currently unavailable

14

Toro 146-4534

STRAP-RH FLAG

$

$

Currently unavailable

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

17

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

19

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, only 1 left!

0

20

Toro 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

21

Toro 9266934

SCREW

$9.49

$

In Stock, only 4 left!

0

22

Toro 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

23

Toro 135-2628-01

BRACKET-DECK STOP, LH

$23.99

$

Usually ships in 3-6 days

0

24

Toro 135-2629-01

BRACKET-DECK STOP, RH

$23.99

$

Usually ships in 3-6 days

0

25

Toro 283-85

PIN-CLEVIS

$21.99

$

In Stock, only 1 left!

0

26

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

27

Toro 120-9716

PIN-COTTER

$

$

Currently unavailable

28

Toro 142-6724

BUSHING

$13.99

$

In Stock, Qty 5

0
