74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 403247446) LH Wing Deck Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

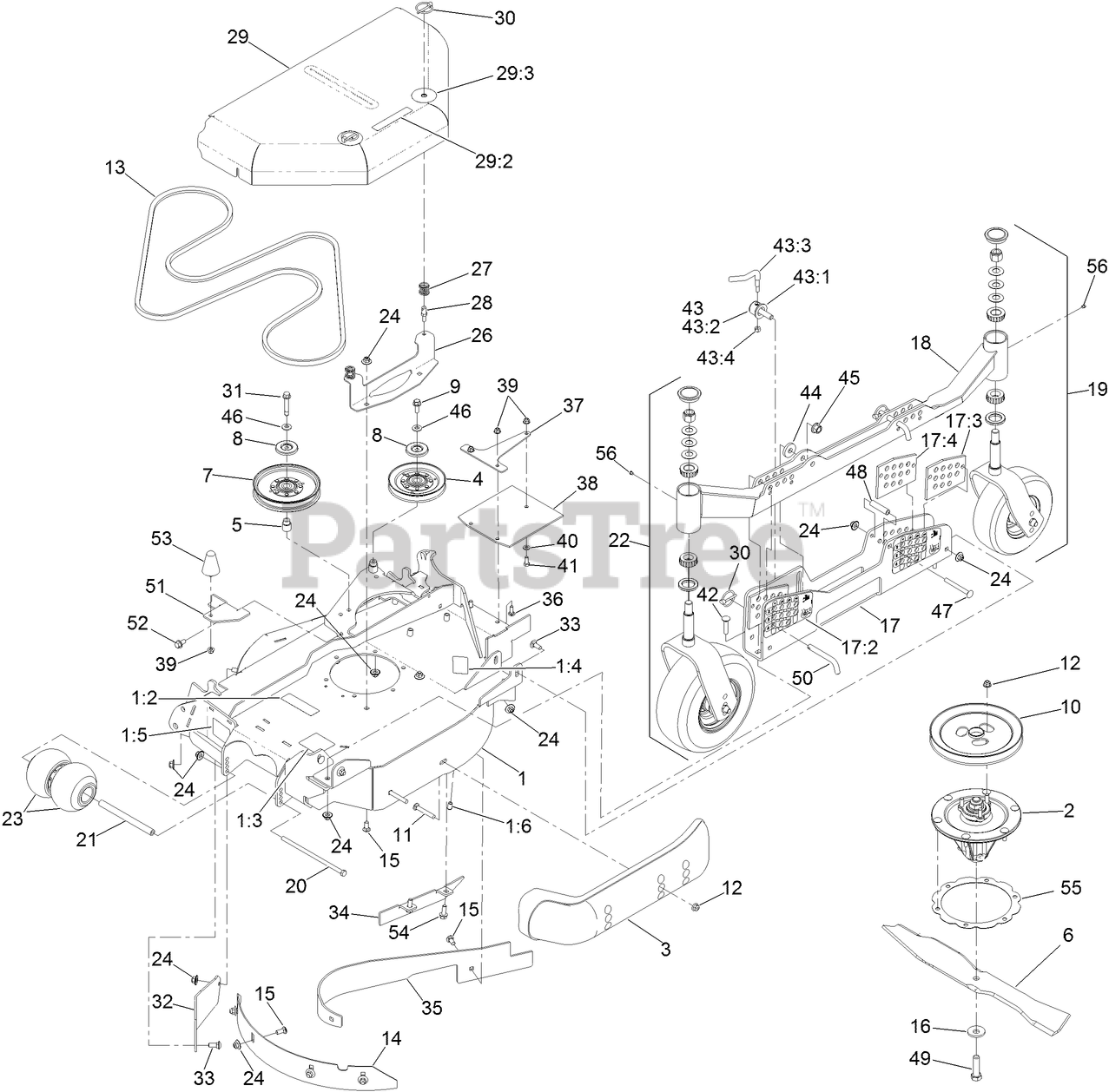

LH Wing Deck Assembly Parts Diagram

  • Title

1

Toro 135-0722

LH WING DECK DECAL ASM

$2281.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-9028

DECAL-COVER, MISSING

$20.99

$

In Stock, only 2 left!

0

1:3

Toro 135-0664

DECAL-DANGER, THROWN OBJECT

$18.99

$

Usually ships in 3-6 days

0

1:4

Toro 116-8283

DECAL-BOLT TORQUE

$1.99

$

In Stock, Qty 20+

0

1:5

Toro 135-0670

DECAL-WARNING, PINCH POINT

$5.49

$

Usually ships in 3-6 days

0

1:6

Toro 32148-10

NUT-CLINCH

$8.49

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$514.99

$

In Stock, Qty 10

0

3

Toro 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

4

Toro 126-2960

IDLER-V

$66.99

$

In Stock, only 4 left!

0

5

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

6

Toro 135-2446

BLADE-MULCH, 24.5IN

$49.99

$

In Stock, only 4 left!

0

7

Toro 126-7685

IDLER-PULLEY

$63.99

$

In Stock, Qty 20+

0

8

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

9

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 17

0

10

Toro 135-0745-03

SHEAVE-SINGLE 96 RD (TORO)
(Superseded to 135-0745)

$194.99

$

Usually ships in 3-6 days

0

11

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 18

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 126-6442

BELT-V

$123.99

$

In Stock, Qty 6

0

14

Toro 135-2459-01

BAFFLE-DEPTH, LH

$33.99

$

Usually ships in 3-6 days

0

15

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

16

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 20+

0

17

Toro 135-2433

LH HOC CHANNEL ASM

$674.99

$

Usually ships in 3-6 days

0

17:2

Toro 126-8597

DECAL-HEIGHT OF CUT-LH

$13.99

$

Usually ships in 3-6 days

0

17:3

Toro 135-2422

PLATE-GUIDE, HOC (LH)

$76.99

$

In Stock, only 1 left!

0

17:4

Toro 135-2423

PLATE-GUIDE, HOC (RH)

$76.99

$

In Stock, only 2 left!

0

18

Toro 135-2436-01

TUBE-HOC, LH

$479.99

$

Usually ships in 3-6 days

0

19

REAR CASTER WHEEL ASM

Note: Not serviced separately

$

$

Not available

20

Toro 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 6

0

21

Toro 126-6115

SPACER-WHEEL

$11.99

$

Usually ships in 3-6 days

0

22

CASTER WHEEL ASM

Note: Not serviced separately

$

$

Not available

23

Toro 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 10

0

24

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 135-2653-03

BRACKET-SHIELD MOUNT, OUTER

$24.99

$

Usually ships in 3-6 days

0

27

Toro 126-1503

SPRING

$2.99

$

In Stock, Qty 5

0

28

Toro 126-1504

PIN-SPRING
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

29

Toro 135-1815

LH WING SHIELD ASM

$288.99

$

Usually ships in 3-6 days

0

29:2

Toro 93-6687

DECAL-NO STEP

$18.99

$

Usually ships in 3-6 days

0

29:3

Toro 135-3165

DECAL-SCRATCH COVER

$3.49

$

Usually ships in 3-6 days

0

30

Toro 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 12

0

31

Toro 126-2956

SCREW-HHF W/ PATCH

$6.49

$

In Stock, only 4 left!

0

32

Toro 126-9757-01

PLATE-FILL, LH DECK

$25.99

$

Usually ships in 3-6 days

0

33

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Toro 135-1824-01

FIN-BAFFLE, DISCHARGE WING (LH)

$22.99

$

Usually ships in 3-6 days

0

35

Toro 135-0794-01

BAFFLE-DOGLEG, CENTER (RH)

$70.99

$

In Stock, only 1 left!

0

36

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

37

Toro 135-0618-03

SUPPORT-FLAP, LH

$11.99

$

Usually ships in 3-6 days

0

38

Toro 135-1849

GUARD-TIRE, LH

$15.99

$

Usually ships in 3-6 days

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 19

0

43

Toro 107-1664

LEVER ASM

$72.99

$

In Stock, only 4 left!

0

43:1

Toro 106-3239

SCREW-LOCK

$52.99

$

In Stock, only 2 left!

0

43:2

Toro 107-1644

CAP-LOCK

$18.99

$

Usually ships in 3-6 days

0

43:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$72.99

$

In Stock, only 4 left!

0

43:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Toro 30-8770

WASHER

$11.99

$

In Stock, only 3 left!

0

45

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

46

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

47

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

48

Toro 135-2424

SPACER

$15.99

$

Usually ships in 3-6 days

0

49

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

50

Toro 135-2073

PIN-HOC

$27.99

$

In Stock, Qty 18

0

51

Toro 135-2611-01

BRACKET-COVER RETAINER

$17.99

$

Usually ships in 3-6 days

0

52

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

53

Toro 114-1925

BUMPER-RUBBER

$25.99

$

In Stock, Qty 18

0

54

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 15

0

55

Toro 135-2639

RING-SPACER, HOUSING
(Superseded to 140-0986)

$17.99

$

Usually ships in 3-6 days

0

56

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0
