74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 403247447 - 999999999) Hydraulic Lift and Fold Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

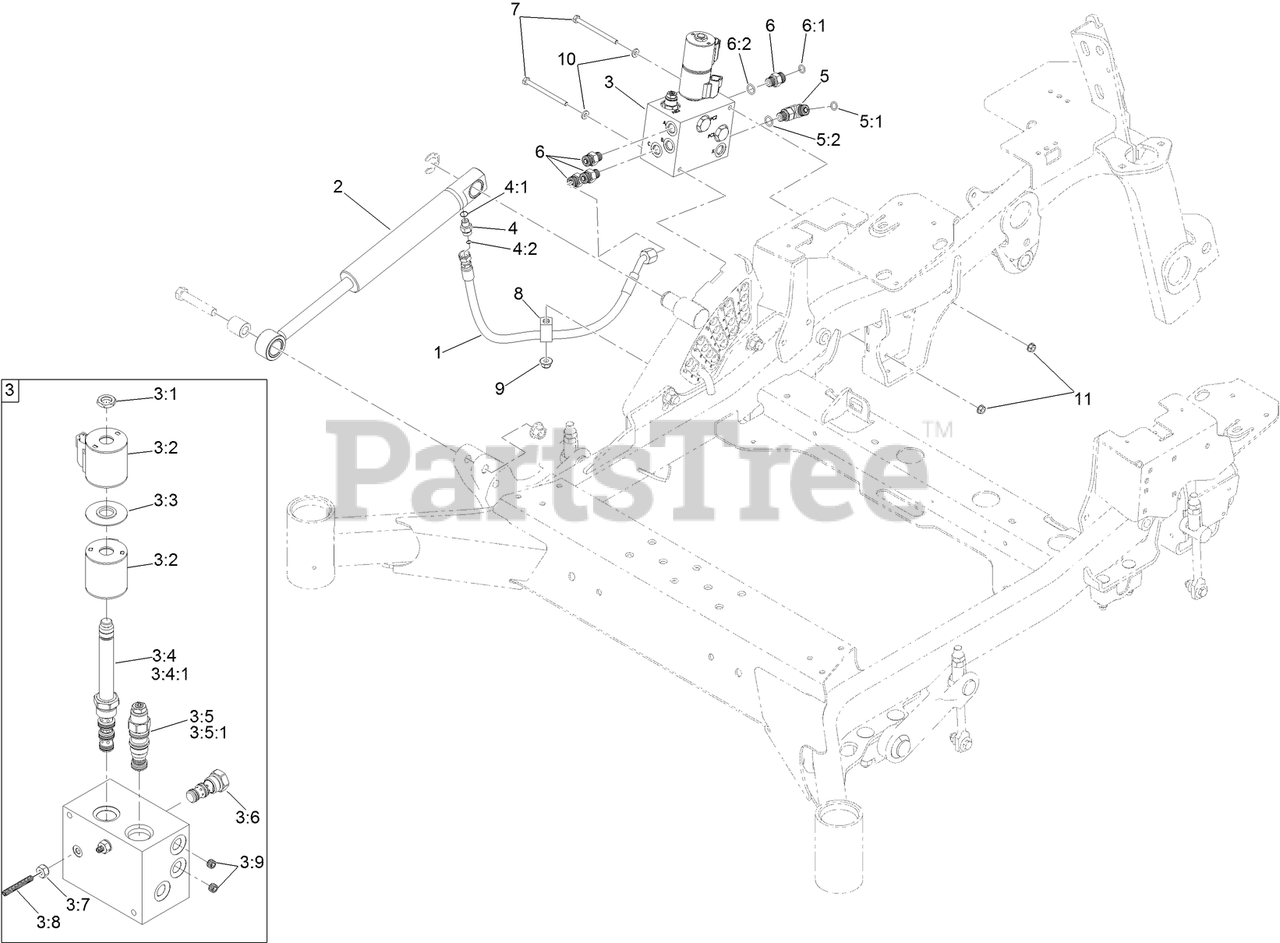

Hydraulic Lift and Fold Assembly Parts Diagram

  • Title

1

Toro 126-8683

HOSE ASM

$72.99

$

Usually ships in 3-6 days

0

2

Toro 126-7841

CYLINDER-LIFT

$580.99

$

Usually ships in 3-6 days

0

3

Toro 135-4560

LIFT AND HOLD VALVE ASM
(Superseded to 142-4922)

$1629.99

$

Usually ships in 3-6 days

0

3:1

Toro 110-2634

NUT-COIL

$7.99

$

Usually ships in 3-6 days

0

3:2

Toro 115-3021

COIL-12V

$138.99

$

Usually ships in 3-6 days

0

3:3

Toro 117-8316

SPACER-E COIL

$36.99

$

Usually ships in 3-6 days

0

3:4

Toro 135-4546

SOLENOID VALVE ASM

$331.99

$

Usually ships in 3-6 days

0

3:4:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$39.99

$

Usually ships in 3-6 days

0

3:5

Toro 135-4543

VALVE-COUNTERBALANCE

$368.99

$

Usually ships in 3-6 days

0

3:5:1

Toro 114-5083

SEAL KIT

$90.99

$

Usually ships in 3-6 days

0

3:6

Toro 135-4547

VALVE-CHECK, PO

$158.99

$

In Stock, Qty 5

0

3:7

Toro 135-4544

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

3:8

Toro 135-4545

NUT-SEALING, HEX

$22.99

$

Usually ships in 3-6 days

0

3:9

Toro 110-8889

PLUG-ORIFICE (0.020)

$16.99

$

Usually ships in 3-6 days

0

4

Toro 126-8692

FITTING-HYD, STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 3 left!

0

4:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 6

0

5

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

5:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

6:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Toro 321-19

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

8

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
