74105 (Z 118) - Toro Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) ELECTRICAL SYSTEM ASM Parts Diagram

Zero-Turn Mower, Drive Unit Only

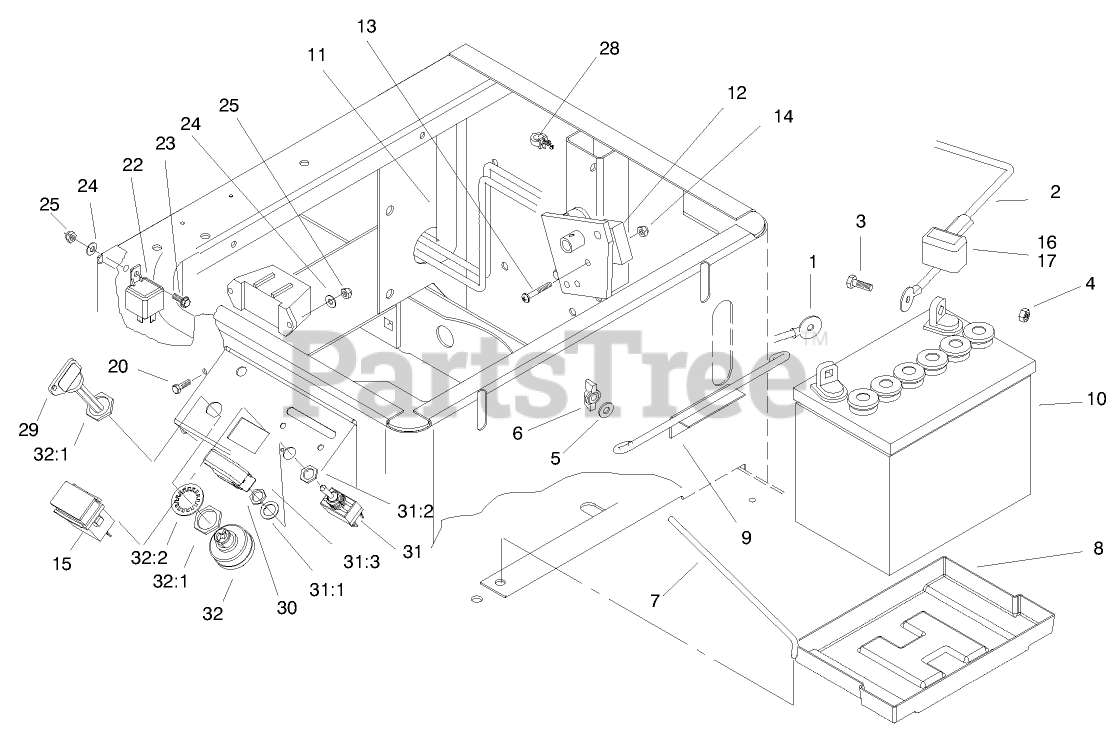

ELECTRICAL SYSTEM ASM Parts Diagram

  • Title

1

Toro 28-3893

WIRE ASM

$24.99

$

Usually ships in 3-6 days

0

2

Toro 54-3090

WIRE ASM

$36.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

7

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 3 left!

0

8

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

9

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

10

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

11

Toro 94-9694

WIRE HARNESS ASSY

$

$

Not available

12

Toro 116237

SWITCH-ASS'Y NEUTRAL

$

$

Not available

13

Toro 3250-23

SCREW-PPH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 7

0

16

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

17

Toro 77-0981

BOOT-TERMINAL, RED

$16.99

$

Usually ships in 3-6 days

0

20

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 6

0

22

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

23

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

24

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 115858

CLIP-SNAP IN

$2.49

$

Usually ships in 3-6 days

0

29

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

30

Toro 113050

COVER-PTO SWITCH

$71.99

$

Usually ships in 3-6 days

0

31

Toro 92-9811

SWITCH-TOGGLE, SEALED
(Superseded to 139-1516)

$53.99

$

In Stock, only 1 left!

0

31:1

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

31:2

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

31:3

Toro 113179

DISC

$

$

Not available

32

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, Qty 11

0

32:1

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

32:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0
