74105 (Z 118) - Toro Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) ENGINE & FUEL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

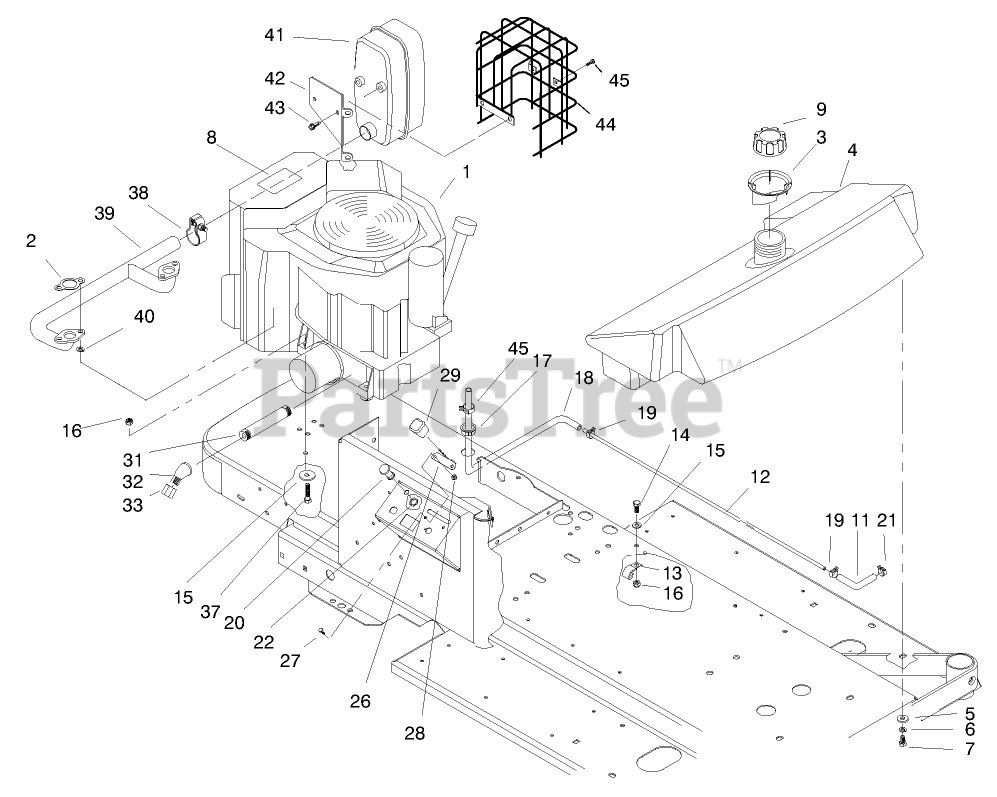

ENGINE & FUEL SYSTEM Parts Diagram

  • Title

1

Toro 94-3331

ENGINE - KOHLER 18

$

$

Not available

2

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

3

Toro 115741

FUNNEL-FUEL TANK

$

$

Not available

4

Toro 116363

TANK-FUEL ASS'Y

$470.99

$

Usually ships in 3-6 days

0

4:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

4:2

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 7

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 95-2823

DECAL - ENGINE

$

$

Not available

9

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 19

0

11

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

12

Toro 115780

TUBE FUEL LINE

$58.99

$

Usually ships in 3-6 days

0

13

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0

18

Toro 94-9682

HOSE - GAS
(Superseded to 109-0275)

$13.99

$

Usually ships in 3-6 days

0

19

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

20

Toro 94-9693

CONTROL-CHOKE

$76.99

$

Usually ships in 3-6 days

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

22

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

26

Toro 94-9692

CONTROL-THROTTLE

$104.99

$

Usually ships in 3-6 days

0

27

Toro 32105-23

SCREW

$1.49

$

In Stock, Qty 5

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 66-0120

KNOB

$5.99

$

In Stock, Qty 9

0

31

Toro 289-19

NIPPLE

$19.99

$

Usually ships in 3-6 days

0

32

Toro 2811-3

ELBOW

$

$

Not available

33

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

37

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 94-9681

1.25" CLAMP ASM

$

$

Not available

39

Toro 94-9662

MANIFOLD - EXHAUST

$

$

Not available

40

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, only 3 left!

0

41

Toro 94-9667

MUFFLER - Z118

$522.99

$

Usually ships in 3-6 days

0

42

Toro 94-9661

Bracket-Muffler
(Superseded to 94-9661-03)

$

$

Not available

43

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

44

Toro 94-9689

GUARD - MUFFLER

$359.99

$

Usually ships in 3-6 days

0

45

Toro 32144-42

SCREW-THD FORM, HWH

$0.99

$

Usually ships in 3-6 days

0
