74105 (Z 118) - Toro Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) FRAME & FRONT WHEEL FORK ASM Parts Diagram

Zero-Turn Mower, Drive Unit Only

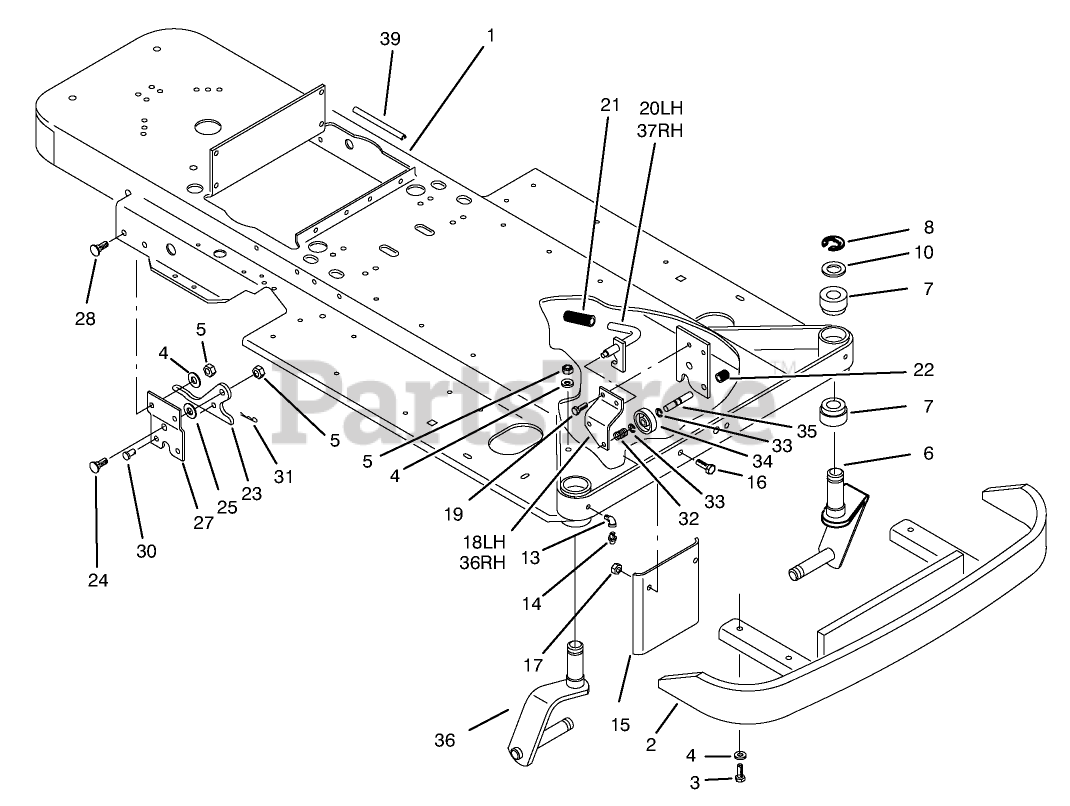

FRAME & FRONT WHEEL FORK ASM Parts Diagram

  • Title

1

Toro 92-1758-01

WLDMT-FRAME

$

$

Not available

2

Toro 117455-03

BUMPER WELDMENT

$1031.99

$

Usually ships in 3-6 days

0

3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 79-5990-01

L/H SPINDLE WA

$

$

Not available

7

Toro 92-1714

BUSHING PIVOT

$28.99

$

Usually ships in 3-6 days

0

8

Toro 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

10

Toro 9202514

Washer
(Superseded to 920251)

$2.99

$

Usually ships in 3-6 days

0

11

Toro 116330-01

BRKT LATCH RH

$

$

Not available

13

Toro 2811-7

ELBOW

$40.99

$

Usually ships in 3-6 days

0

14

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 6

0

15

Toro 121290-01

SHIELD

$

$

Not available

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 116331-01

BRKT LATCH LH

$15.99

$

Usually ships in 3-6 days

0

19

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

20

Toro 116245-01

WLDMT-LATCH L.H.

$

$

Not available

21

Toro 9038

GRIP

$5.99

$

In Stock, Qty 5

0

22

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

23

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 115123

WASHER

$

$

Not available

27

Toro 79-5970-01

PLATE-HITCH(NS)

$

$

Not available

28

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 11

0

30

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

32

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

33

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 7

0

34

Toro 101017

LOCK

$26.99

$

Usually ships in 3-6 days

0

35

Toro 116244

ROD-LOCK

$17.99

$

Usually ships in 3-6 days

0

36

Toro 79-6000-01

R/H SPINDLE WA

$306.99

$

Usually ships in 3-6 days

0

37

Toro 116246-01

WLDMT-LATCH R.H.

$

$

Not available

38

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 14

0

39

Toro 115200

EDGE TRIM

$

$

Not available
