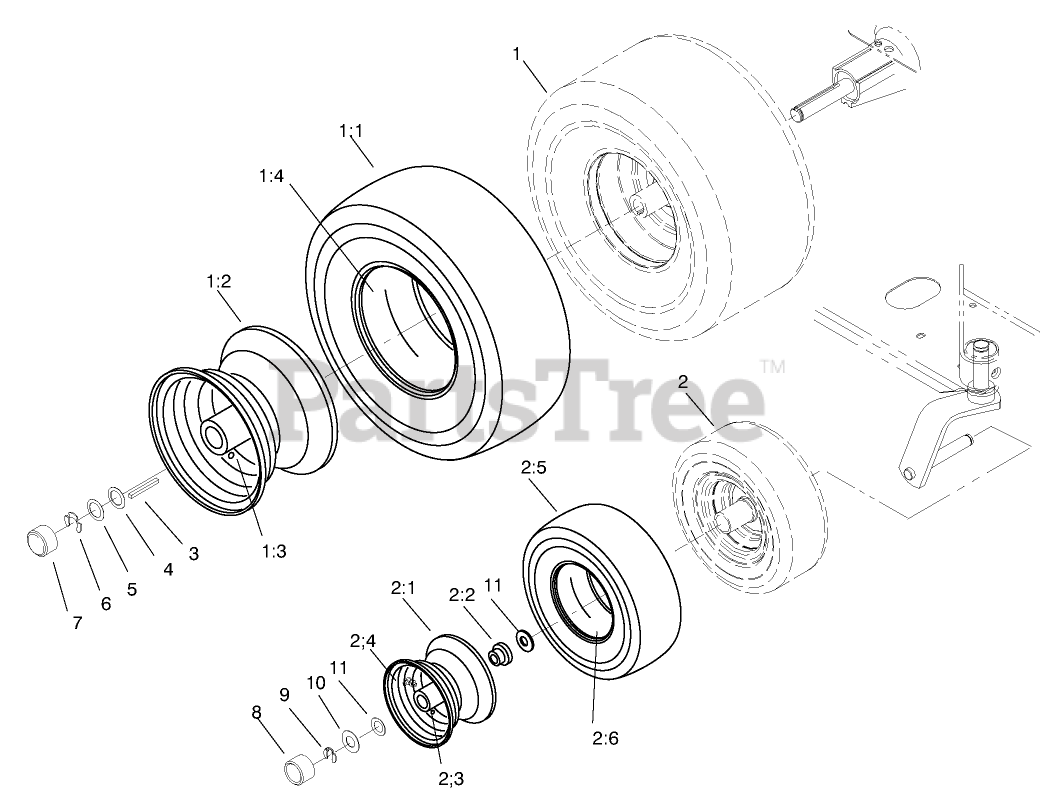

74105 (Z 118) - Toro Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) WHEEL & TIRE ASM Parts Diagram

Zero-Turn Mower, Drive Unit Only

WHEEL & TIRE ASM Parts Diagram

  • Title

1

Wheel/Tire Asm Rear

$

$

Not available

1:1

Toro 116880

TIRE-18X9.50-8 TT RS

$

$

Not available

1:2

Toro 94-9677

ASSEMBLY - REAR WHEEL

$

$

Not available

1:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

1:4

Toro 106396

TUBE-TIRE

$41.99

$

Usually ships in 3-6 days

0

2

Wheel/Tire Asm Front

$

$

Not available

2:1

Toro 117279

Wheel
(Superseded to 94-9679)

$

$

Not available

2:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 20+

0

2:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

2:4

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

2:5

Toro 117391

TIRE 11 X 400-5 RIB

$

$

Not available

2:6

Toro 107963

TUBE-TIRE 11X4.00-5

$

$

Not available

3

Toro 79-2000

KEY-SQUARE

$4.99

$

Usually ships in 3-6 days

0

4

Toro 9202514

Washer
(Superseded to 920251)

$2.99

$

Usually ships in 3-6 days

0

5

Toro 9202524

WASHER

$1.49

$

In Stock, only 1 left!

0

6

Toro 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

7

Toro 111951

HUBCAP

$14.99

$

In Stock, Qty 5

0

8

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

9

Toro 115882

KLIP-RING .75"

$

$

Not available

10

Toro 78-7410

WASHER-WHEEL

$3.49

$

Usually ships in 3-6 days

0

11

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0
