74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) ATTACHMENT HEIGHT CONTROL Parts Diagram

Zero-Turn Mower, Drive Unit Only

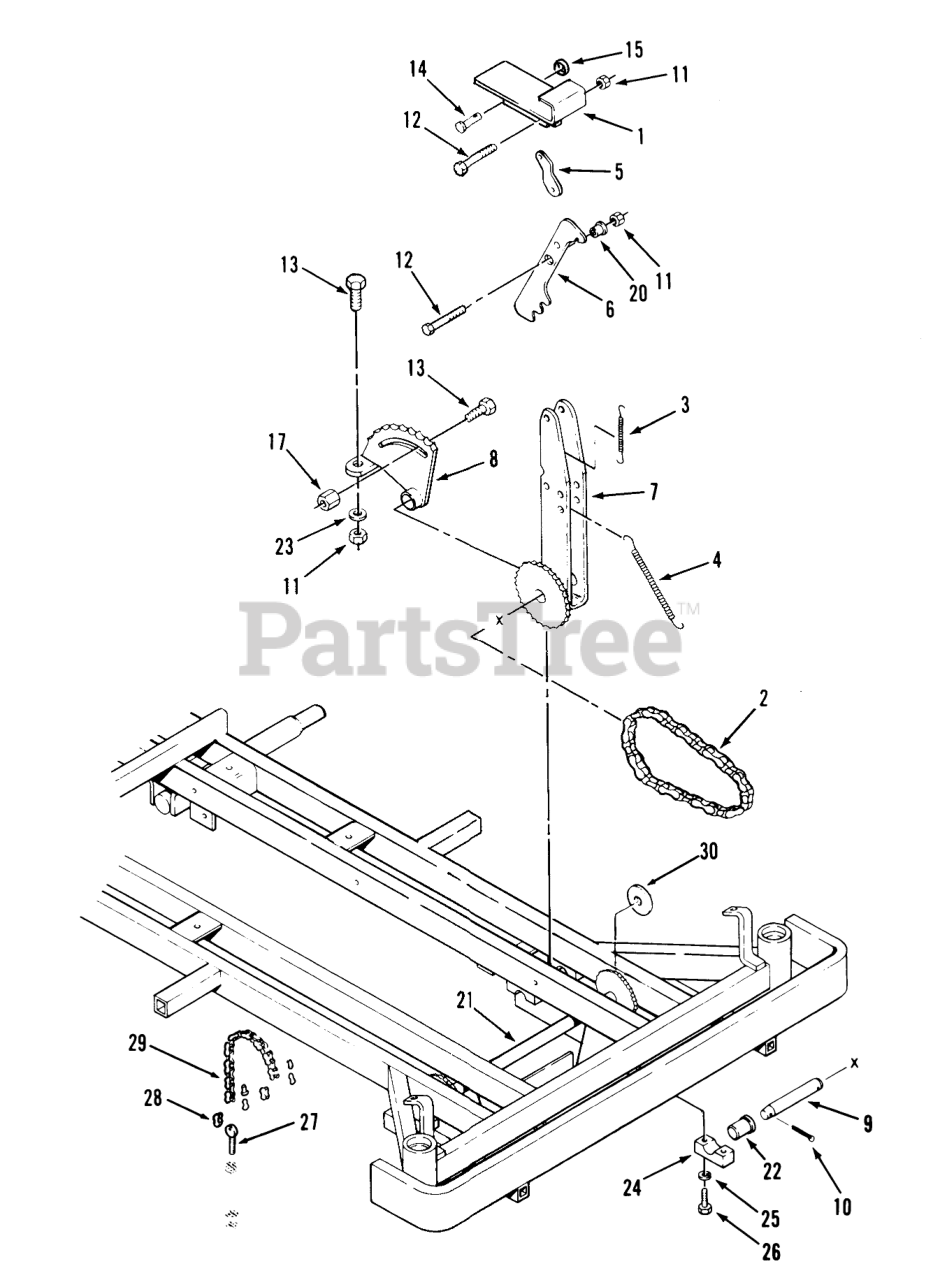

ATTACHMENT HEIGHT CONTROL Parts Diagram

  • Title

1

Toro 112954

PEDAL-FOOT 10218- B

$

$

Not available

2

Toro 115855

CHAIN-FOOT PEDAL DR

$

$

Not available

3

Toro 113081

SPG-NEUTRAL 20217-35

$13.99

$

In Stock, only 1 left!

0

4

Toro 114183

SPRING - EXTENSION

$92.99

$

Usually ships in 3-6 days

0

5

Toro 112955

PIVOT-LINK B

$

$

Not available

6

Toro 112956

LIFT-ARM PWL B

$

$

Not available

7

Toro 112957

ASSY-LVR ARM 1022 B

$120.99

$

Usually ships in 3-6 days

0

8

Toro 112958

HEIGHT CONTROL SP B

$

$

Not available

9

Toro 113149

PIN-PEDAL

$

$

Not available

10

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 32121-114

SPIROL PIN H D

$1.99

$

Usually ships in 3-6 days

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 114613

PIN-LOCK

$

$

Not available

15

Toro 100307

E RING

$

$

Not available

17

Toro 112941

HEX-STOP NUT N-140

$

$

Not available

20

Toro 113146

BUSHING-PDL

$

$

Not available

21

Toro 113684

ASM-Sprocket
(Superseded to 113684-03)

$295.99

$

Usually ships in 3-6 days

0

22

Toro 113687

BEARING-FLANGED

$

$

Not available

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

24

Toro 113562

Clamp-Cross Shaft (Incl. w/frame)
(Superseded to 114294)

$

$

Not available

25

Toro 3256-21

Washer-Lock 3/8 (Incl. w/frame)

$0.99

$

Usually ships in 3-6 days

0

26

Toro 323-7

Bolt (Incl. w/frame)

$2.99

$

In Stock, Qty 20+

0

27

Toro 113697

EYE-BOLT 3/8-16X2.50

$

$

Not available

28

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$5.99

$

In Stock, only 1 left!

0

29

Toro 113699

CHAIN-DECK LIFT

$46.99

$

Usually ships in 3-6 days

0

30

Toro 920225

Washer
(Superseded to 9202254)

$3.49

$

In Stock, only 2 left!

0
