74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) HYDROSTATIC TRANSMISSION Parts Diagram

Zero-Turn Mower, Drive Unit Only

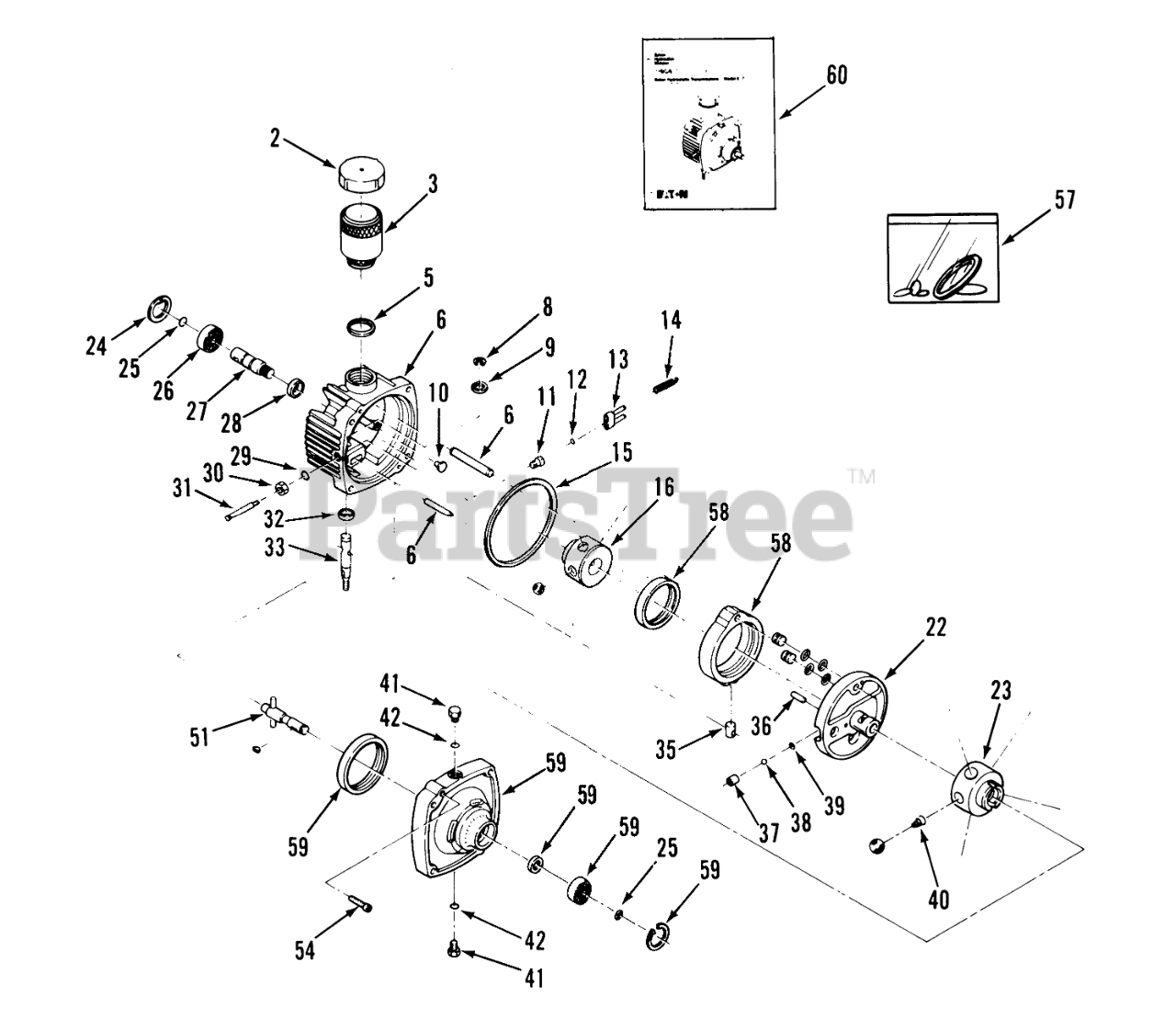

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

2

Toro 112589

RESERVOIR COVER

$

$

Not available

3

Toro 112590

BODY-RESERVOIR

$72.99

$

Usually ships in 3-6 days

0

5

Toro 112591

Seal-Ring, Sq (Incl. Item #57)

$3.99

$

Usually ships in 3-6 days

0

6

Toro 112625

Kit-Cover Service (Incl. Items # 8, 9, 28, 32 & 33)

$

$

Not available

8

Toro 112593

Ring-External Retaining (Incl. Item #6)

$

$

Not available

9

Toro 112594

Washer-Control Shaft (Incl. Item #6)

$

$

Not available

10

Toro 112595

Button
(Superseded to 56-2880)

$

$

Not available

11

Toro 112626

Fitting-Guide Assembly, O-Ring (Incl. Item #12)

$

$

Not available

12

Toro 112627

Valve-Bracket (Incl. Items #11 & 57)

$

$

Not available

13

Toro 112628

SUB-ASS'Y BRACKET

$

$

Not available

14

Toro 112629

SPRING-VALVE

$

$

Not available

15

Toro 112596

Seal-Ring, Sq (Incl. Item #57)

$

$

Not available

16

Toro 112597

SUB-ASS'Y PUMP ROTOR

$

$

Not available

22

Toro 112630

Pintle Assembly-Used in CCW rotation trans. Model #00700-023 (Incl. Items #36, 37, 38, & 39)

$

$

Not available

23

Toro 112599

SUB-ASS'Y MOTOR

$

$

Not available

24

Toro 112600

Retaining Ring
(Superseded to 56-3290)

$

$

Not available

25

Toro 112601

SNAP-RING

$

$

Not available

26

Toro 112602

BEARING-BALL (INPUT)

$61.99

$

Usually ships in 3-6 days

0

27

Toro 112603

SHAFT-INPUT

$

$

Not available

28

Toro 112604

Seal-Oil (Incl. in Items #6 & 57)
(Superseded to 56-2820)

$38.99

$

In Stock, only 3 left!

0

29

Toro 112631

O-Ring-Dump Valve (Incl. Item #57)

$

$

Not available

30

Toro 112632

Gasket Assembly (Incl. Item # 57)

$

$

Not available

31

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$118.99

$

Usually ships in 3-6 days

0

32

Toro 112605

Seal-Oil (Incl. in Items #6 & 57)

$17.99

$

Usually ships in 3-6 days

0

33

Toro 112606

Kit-Control Shaft (Incl. in Item #6)

$

$

Not available

35

Toro 112607

INSERT-CAM RING

$

$

Not available

36

Toro 112608

Pin-Coil (Incl. Item # 22)
(Superseded to 56-2980)

$

$

Not available

37

Toro 112609

Body-Check Valve (Incl. Item #22)
(Superseded to 56-3020)

$

$

Not available

38

Toro 112610

Ball-Grade 200 5/16 O.D. (Incl. Item #22)
(Superseded to 56-3010)

$

$

Not available

39

Toro 112611

Ring-Retaining (Incl. Item #22)
(Superseded to 56-3000)

$4.49

$

In Stock, only 2 left!

0

40

Toro 112612

Spring-Piston (Incl. Item #23)

$

$

Not available

41

Toro 112613

Plug Assembly-O-Ring (Incl. Item 42)
(Superseded to 56-3250)

$

$

Not available

42

Toro 112614

O-Ring-Tube Fitting (Incl. Items #41 & 57)
(Superseded to 56-3260)

$

$

Not available

51

Toro 112615

Shaft Assembly-Output (Incl. Item #59)

$

$

Not available

54

Toro 112616

Screw
(Superseded to 56-3100)

$8.99

$

Usually ships in 3-6 days

0

57

Toro 112618

Kit-Overhaul Sealing (Incl. Items #5, 11, 12, 15, 28, 29, 30, 32, & 42)

$205.99

$

Usually ships in 3-6 days

0

58

Toro 112619

Ring Sub-Assembly-Cam (Incl. Pump Race & Cam Ring)

$

$

Not available

59

Toro 112620

Body Assembly (Incl. Body, Oil Seal, Output Ball Bearing, Snap Ring, Retaining Ring, Motor Race, & Item #51)

$1247.99

$

Usually ships in 3-6 days

0

60

Toro 740315

Hydrostatic Transmission Repair Manual

$

$

Currently unavailable
