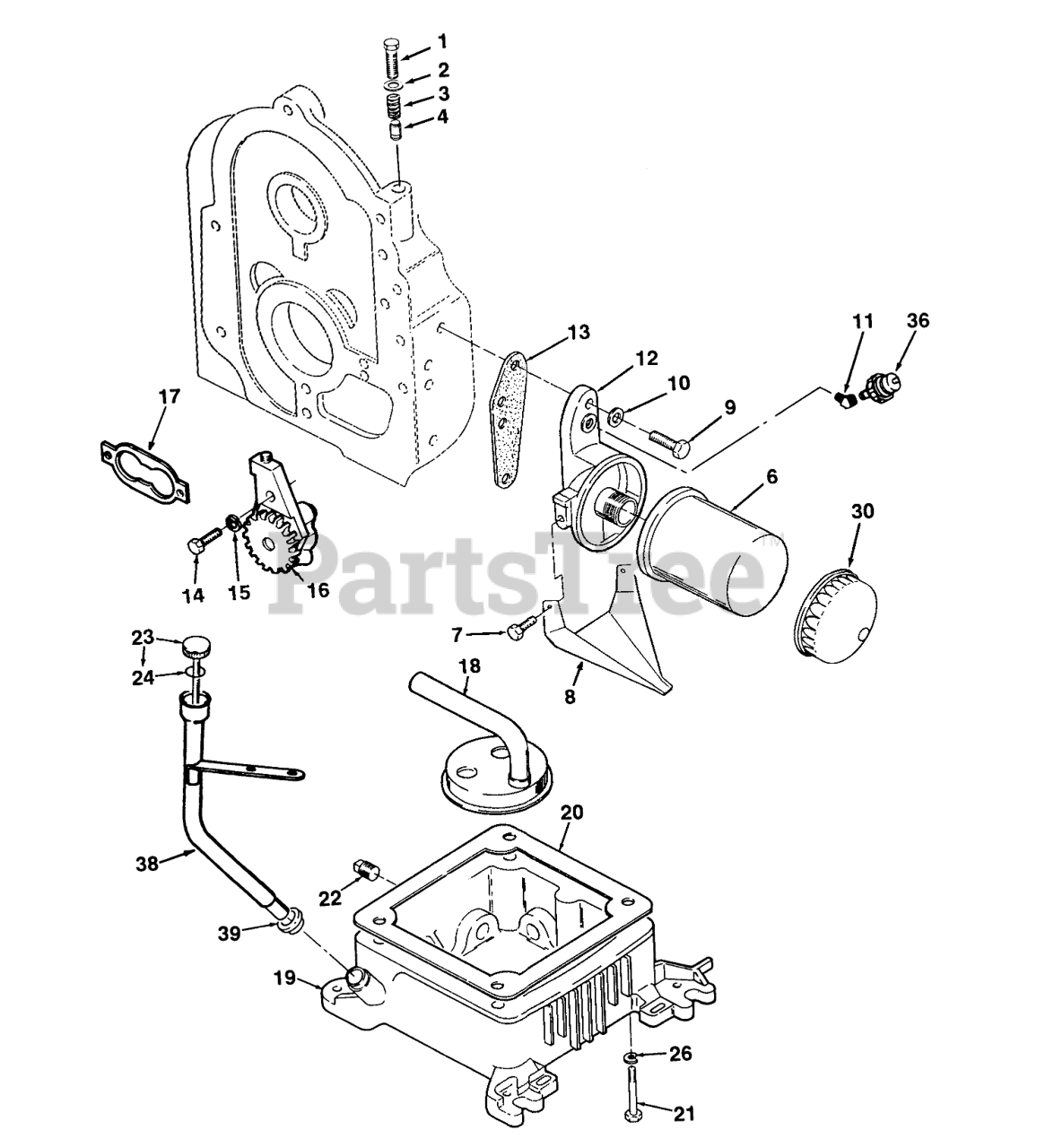

74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) OIL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

OIL SYSTEM Parts Diagram

  • Title

1

Toro NN10384

Bolt
(Superseded to 59-1160)

$

$

Not available

2

Toro NN10361

Washer
(Superseded to 57-9760)

$

$

Not available

3

Toro 57-8500

Spring, Bypass
(Superseded to 59-0280)

$

$

Not available

4

Toro 57-8470

PLUNGER

$

$

Not available

6

Toro 57-8530

FILTER-OIL
(Superseded to 108-3817)

$8.49

$

In Stock, only 4 left!

0

7

Toro 82-1510

SCREW-HH

$

$

Not available

8

Toro 82-0510

DRAIN-OIL FILTER

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

10

Toro 57-9750

WASHER

$

$

Not available

11

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

12

Toro 82-0500

ADAPTER-OIL FILTER

$

$

Not available

13

Toro 79-6470

Gasket
(Superseded to 82-0520)

$

$

Not available

14

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

15

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

16

Toro 57-8480

PUMP

$

$

Not available

17

Toro 57-8460

GASKET KIT

$

$

Not available

18

Toro 92-0944

CUP-OIL PUMP INTAKE

$

$

Not available

19

Toro 92-0942

Base-Oil (Incl. Plugs)

$2147.99

$

Usually ships in 3-6 days

0

20

Toro 57-8090

GASKET

$35.99

$

Usually ships in 3-6 days

0

21

Toro 82-1440

Screw
(Superseded to 323-25)

$14.99

$

Usually ships in 3-6 days

0

22

Toro 92-0943

PLUG

$

$

Not available

23

Toro 82-0590

Oil Fill Cap & Indicator (Incl. O-Ring)
(Superseded to 114-4138)

$78.99

$

Usually ships in 3-6 days

0

24

Toro 57-9610

SEAL 0-RING

$6.99

$

In Stock, only 1 left!

0

26

Toro 82-1310

WASHER-FLAT

$

$

Not available

30

Toro NN10775

WRENCH-OIL FILTER

$

$

Not available

36

Toro NN10520

OIL-PRESSURE SWITCH

$

$

Not available

38

Toro 92-0947

TUBE-OIL FILTER

$430.99

$

Usually ships in 3-6 days

0

39

Toro 71-6170

SEAL-OIL FILL TUBE

$13.99

$

In Stock, only 1 left!

0
