74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) PARKING BRAKE Parts Diagram

Zero-Turn Mower, Drive Unit Only

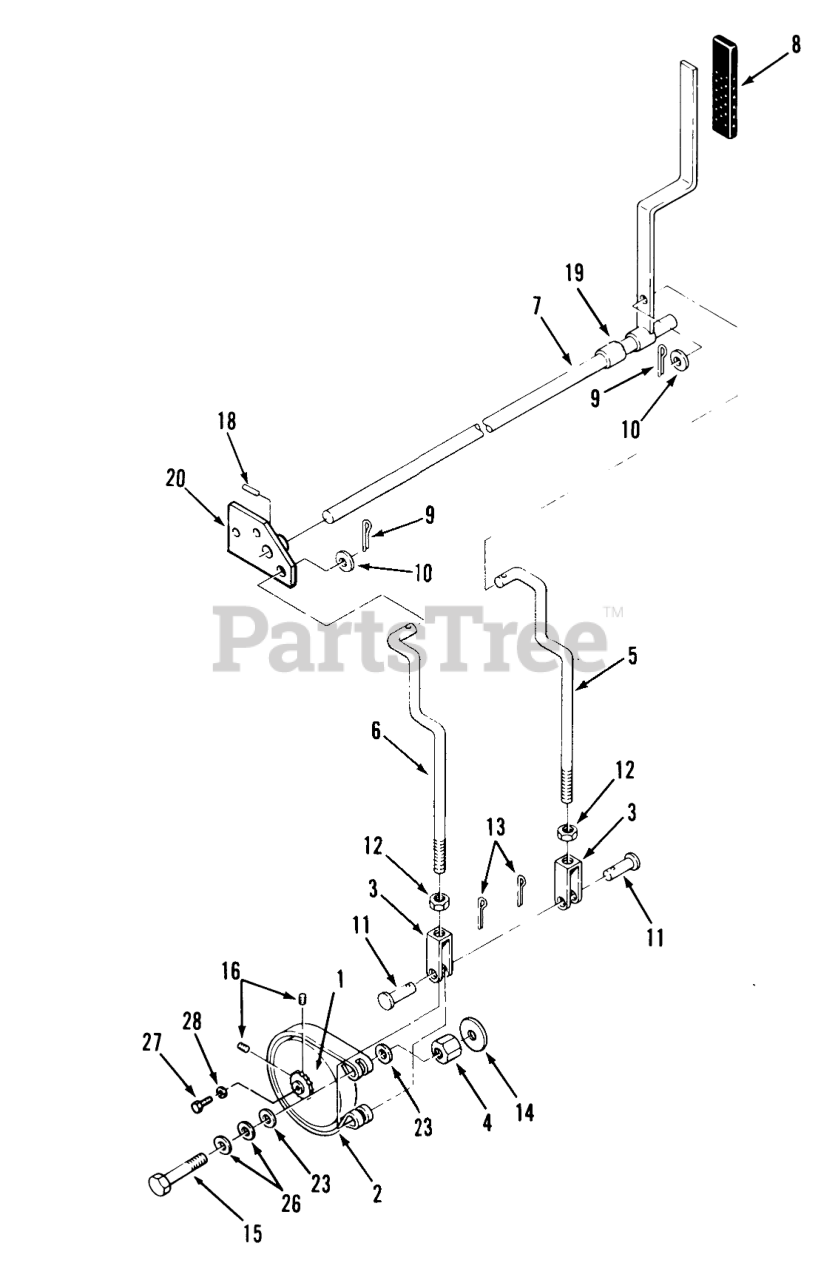

PARKING BRAKE Parts Diagram

  • Title

1

Toro 113518

ASS'Y-DRUM SPROCKET

$

$

Not available

2

Toro 113624

BRAKE-BAND

$

$

Not available

3

Toro 113623

ASSY-YOKE BRAKE

$

$

Not available

4

Toro 113690

NUT-COUPLING

$23.99

$

Usually ships in 3-6 days

0

5

Toro 115793

ROD-BRAKE L.H.

$

$

Not available

6

Toro 115794

ROD-BRAKE R.H.

$

$

Not available

7

Toro 113668

ASSY-PARKING BRK

$

$

Not available

8

Toro 111922

GRIP BRAKE20258-K

$3.99

$

Usually ships in 3-6 days

0

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

11

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

12

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 9

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

18

Toro 32121-114

SPIROL PIN H D

$1.99

$

Usually ships in 3-6 days

0

19

Toro 113665

SPACER-PARKING BR B

$

$

Not available

20

Toro 116478

ASSY-PARKING BRK B

$

$

Not available

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

28

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0
