74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) TRANSMISSION DRIVE Parts Diagram

Zero-Turn Mower, Drive Unit Only

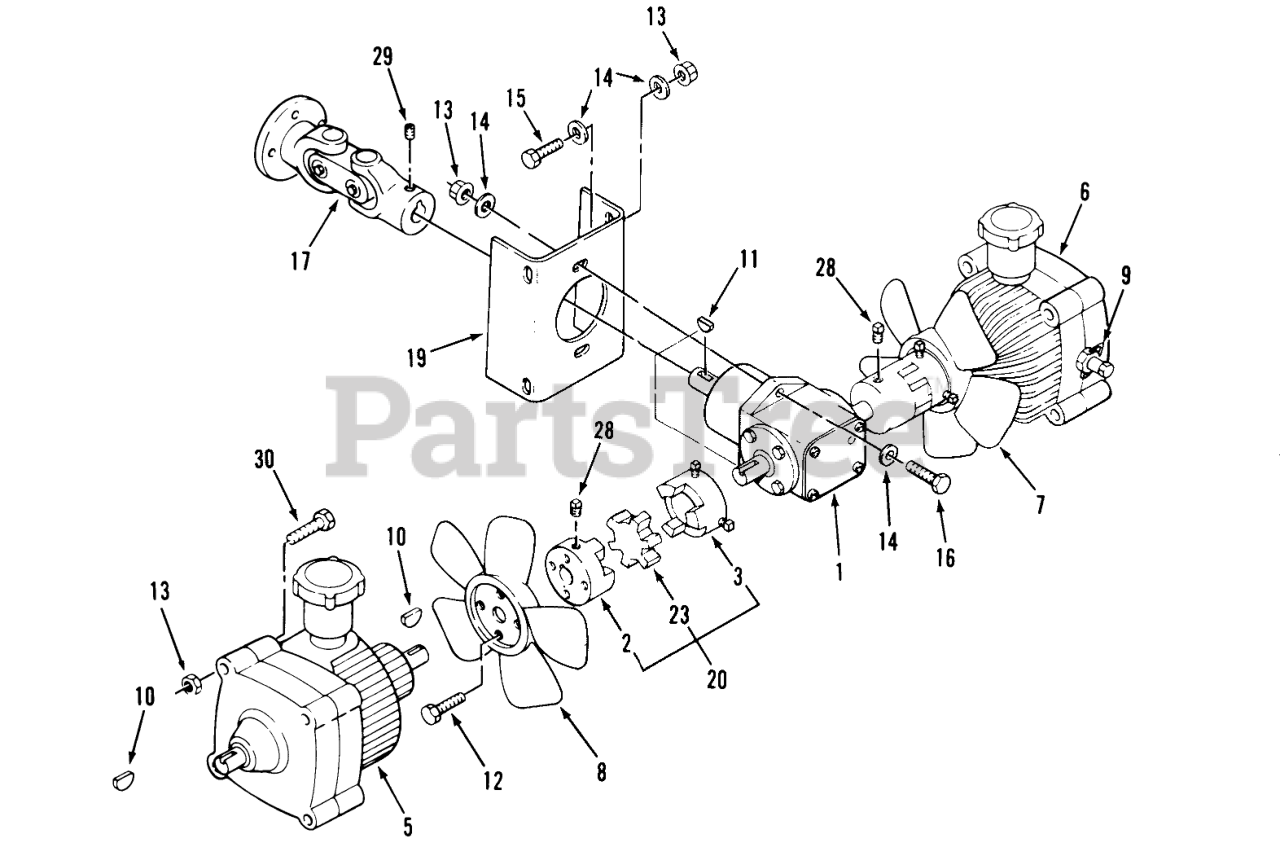

TRANSMISSION DRIVE Parts Diagram

  • Title

1

Toro 113640

GEAR BOX-T

$

$

Not available

2

Toro 115856

COUPLING-KEYED

$143.99

$

Usually ships in 3-6 days

0

3

Toro 115857

COUPLING-KEYED

$198.99

$

In Stock, only 1 left!

0

5

Toro 113568

TRANS-HYDRO CCW.

$4629.99

$

Usually ships in 3-6 days

0

6

Toro 113569

TRANS-HYDRO CW

$4674.99

$

Usually ships in 3-6 days

0

7

Toro 92-1799

BLADE-FAN L.H.

$

$

Not available

8

Toro 113650

BLADE-FAN R.H.

$

$

Not available

9

Toro 115960

CLIP-DUMP VALVE

$

$

Not available

10

Toro 937218

KEY-HIPRO

$3.99

$

Usually ships in 3-6 days

0

11

Toro 937225

KEY-HI-PRO

$4.99

$

In Stock, only 1 left!

0

12

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 113578

U-JOINT ASSY W/FLANGE

$1333.99

$

Usually ships in 3-6 days

0

19

Toro 117295

BRACKET-GEAR BOX B

$57.99

$

Usually ships in 3-6 days

0

20

Toro 113679

Coupler-Complete (Incl. Items 2, 3, & 23)
(Superseded to 99-5854)

$

$

Not available

23

Toro 113663

SPIDER-COUPLING

$55.99

$

Usually ships in 3-6 days

0

28

Toro 3248-6

1/2X1 CUP PT SETSCREW

$39.99

$

Usually ships in 3-6 days

0

29

Toro 3247-3

SCREW-SET

$8.99

$

In Stock, only 2 left!

0

30

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 18

0
