74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) TRANSMISSION DRIVE FRAME Parts Diagram

Zero-Turn Mower, Drive Unit Only

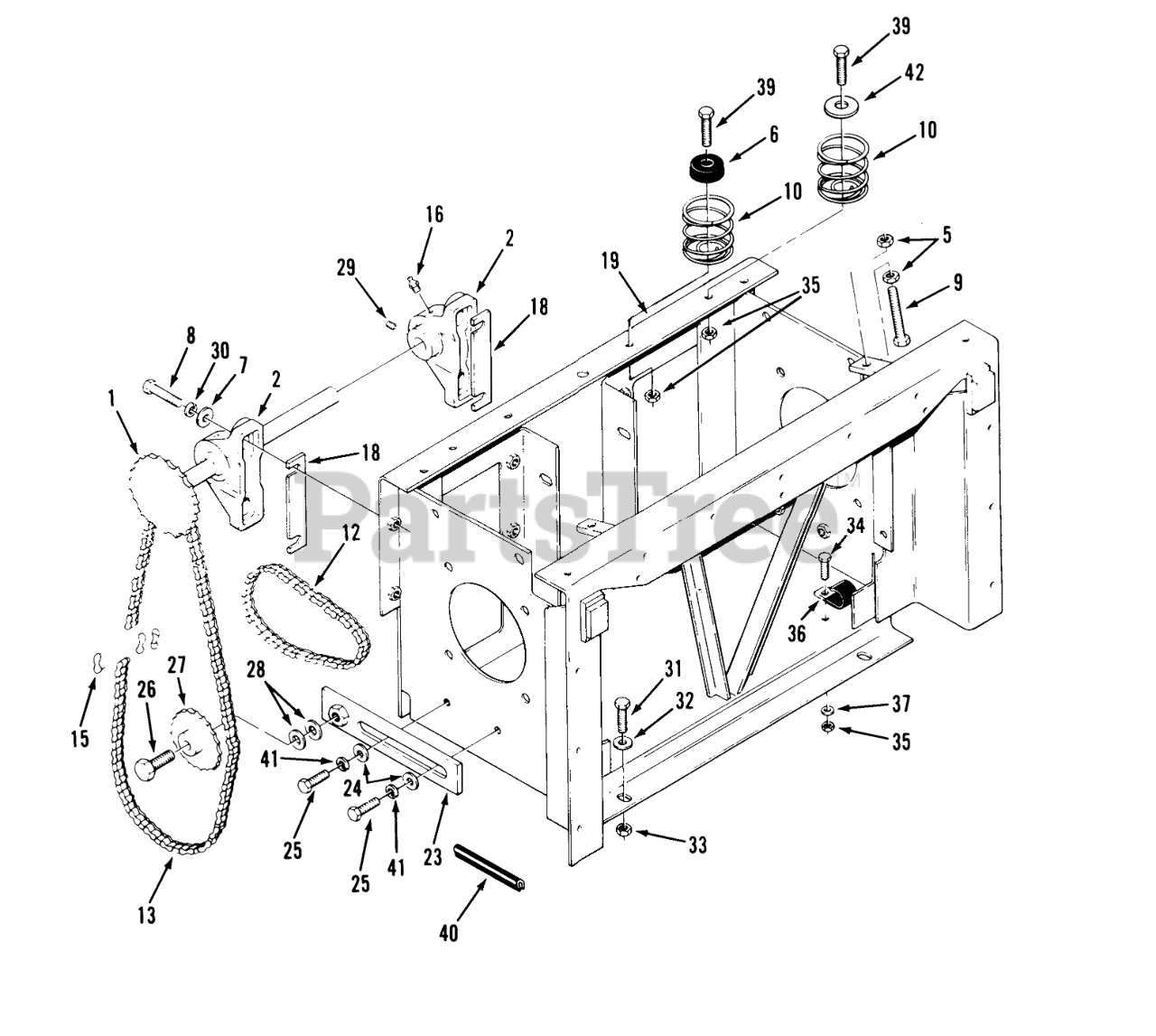

TRANSMISSION DRIVE FRAME Parts Diagram

  • Title

1

Toro 113671

ASSY-JACKSHAFT PLT

$

$

Not available

2

Toro 113531

Bearing-Pillow Block (Incl. Items 16 & 29)

$

$

Not available

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

6

Toro 116839

BUMPER

$25.99

$

Usually ships in 3-6 days

0

7

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

10

Toro 114497

SPRING-SEAT NYLON

$60.99

$

Usually ships in 3-6 days

0

12

Toro 113691

CHAIN-#50 PRIMARY

$

$

Not available

13

Toro 116735

ROLLER-CHAIN #50 SEC

$

$

Not available

15

Toro 109002

CONNECTING LINK
(Superseded to 2710-16)

$7.99

$

Usually ships in 3-6 days

0

16

Toro 113353

Fitting-Grease
(Superseded to 302-2)

$2.49

$

In Stock, Qty 6

0

18

Toro 113567

SHIM-PILLOW BLOCK

$

$

Not available

19

Toro 116888

WLDMT-FRAME TRANS B

$1976.99

$

Usually ships in 3-6 days

0

23

Toro 112304

ASSY-CHAIN TENSIO B

$

$

Not available

24

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 9

0

27

Toro 111887

IDLER SPROCKET 20288

$

$

Not available

28

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

29

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

30

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

31

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

39

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 115200

EDGE TRIM

$

$

Not available

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

42

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0
