74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) WHEELS AND TIRES Parts Diagram

Zero-Turn Mower, Drive Unit Only

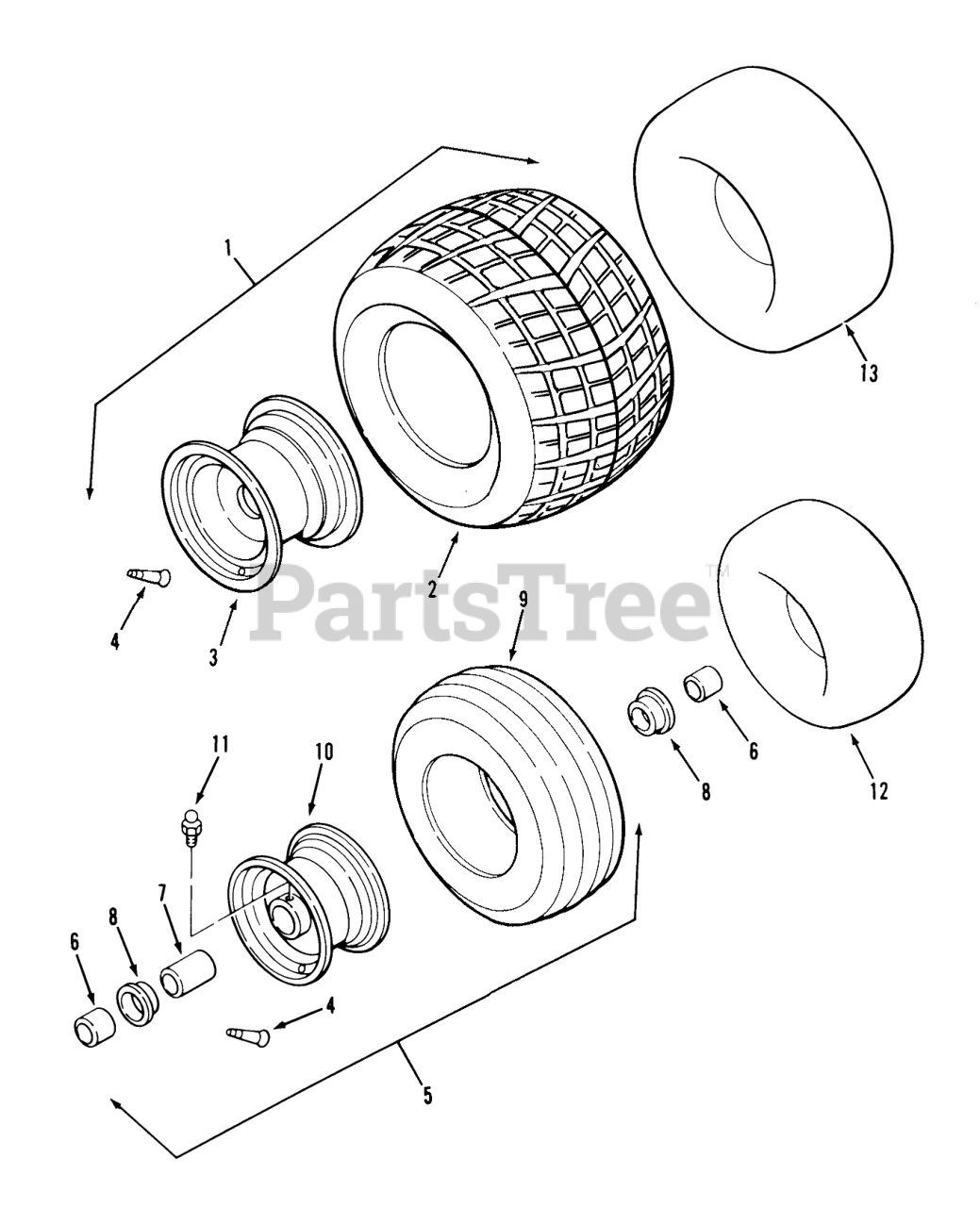

WHEELS AND TIRES Parts Diagram

  • Title

1

Rear Wheel & Tire-21 x 11.00-8 (Incl. Items 2, 3, & 4)

$

$

Not available

Rear Wheel & Tire, Knobby 21 x 12.00-8 (Incl. Items .# 2, 3, & 4) Optional

Note: Not illustrated

$

$

Not available

2

Toro 116973

TIRE 22 X 11.00-8
(Superseded to 121-9072)

$163.99

$

Usually ships in 3-6 days

0

Toro 88-6530

TIRE-REAR 22X11.00-8

Note: Not illustrated

$

$

Not available

3

Toro 117006

Wheel-Rear, Silver

$

$

Not available

Toro 111917

WHEEL PR SLVR 10238K

Note: Not illustrated

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

5

Front Wheel & Tire Assy (Incl. ltems 7, 8, 9, & 10)

$

$

Not available

6

Toro 92-1715

SPACER

$9.99

$

Usually ships in 3-6 days

0

7

Toro 10204

SPACER FRT WHEEL INN

$

$

Not available

8

Toro 10205

BEARING BALL

$

$

Not available

9

Toro 83-3560

TIRE-FRT 13X5.00-6

$

$

Not available

10

Toro 111916

WHEEL FT SLUV 10239K

$

$

Not available

11

Toro 1030

Zerk

$

$

Not available

12

Toro 5712

INNER TUBE

$

$

Not available

13

Toro 10127

Tube-Rear

$

$

Not available
