74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) Crankshaft, Camshaft And Flywheel Parts Diagram

Zero-Turn Mower, Drive Unit Only

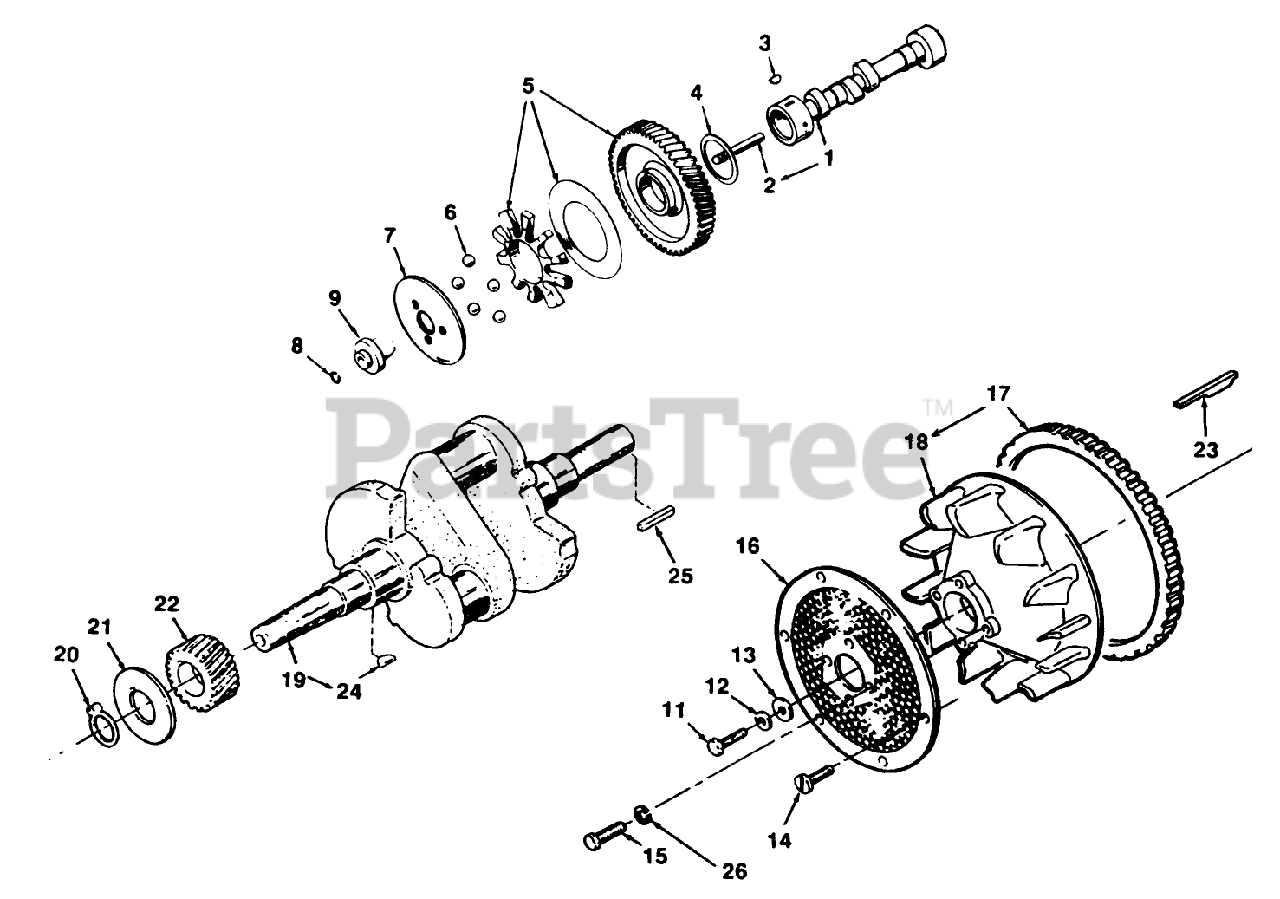

Crankshaft, Camshaft And Flywheel Parts Diagram

  • Title

1

Toro 82-0880

CAMSHAFT

$

$

Not available

2

Toro 59-0400

PIN-CENTER

$

$

Not available

3

Toro 57-9660

KEY

$

$

Not available

4

Toro 57-8230

WASHER-THRUST

$

$

Not available

5

Toro 57-8210

DISCONTINUED

$

$

Not available

6

Toro 57-9640

BEARING

$

$

Not available

7

Toro 59-0450

CUP-GOVERNOR

$

$

Not available

8

Toro 57-9090

RING

$

$

Not available

9

Toro 57-9130

HUB-GOVERNOR CUP

$

$

Not available

11

Toro 57-8150

DISCONTINUED

$

$

Not available

12

Toro 82-1320

WASHER-FLAT

$

$

Not available

13

Toro 59-0810

WASHER-FLAT

$

$

Not available

14

Toro NN10409

DISCONTINUED
(Superseded to 71-6340)

$

$

Not available

15

Toro 59-1120

HX HD LOCK CAPSCREW

$

$

Not available

16

Toro 79-6440

SCREEN-AIR INLET

$182.99

$

Usually ships in 3-6 days

0

17

Toro 57-8180

DISCONTINUED

$

$

Not available

18

Toro 82-0610

FLYWHEEL

$1760.99

$

Usually ships in 3-6 days

0

19

Toro NN10026

DISCONTINUED

$576.99

$

In Stock, only 2 left!

0

20

Toro 57-9710

RING

$

$

Not available

21

Toro 57-8140

DISCONTINUED

$

$

Not available

22

Toro 92-0941

GEAR-CRANKSHAFT

$

$

Not available

23

Toro 71-6190

KEY-FLYWHEEL

$

$

Not available

24

Toro 57-9660

KEY

$

$

Not available

25

Toro NN10331

DISCONTINUED
(Superseded to 82-1160)

$

$

Not available

26

Toro 82-1630

DISCONTINUED

$

$

Not available
