74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) ELECTRICAL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

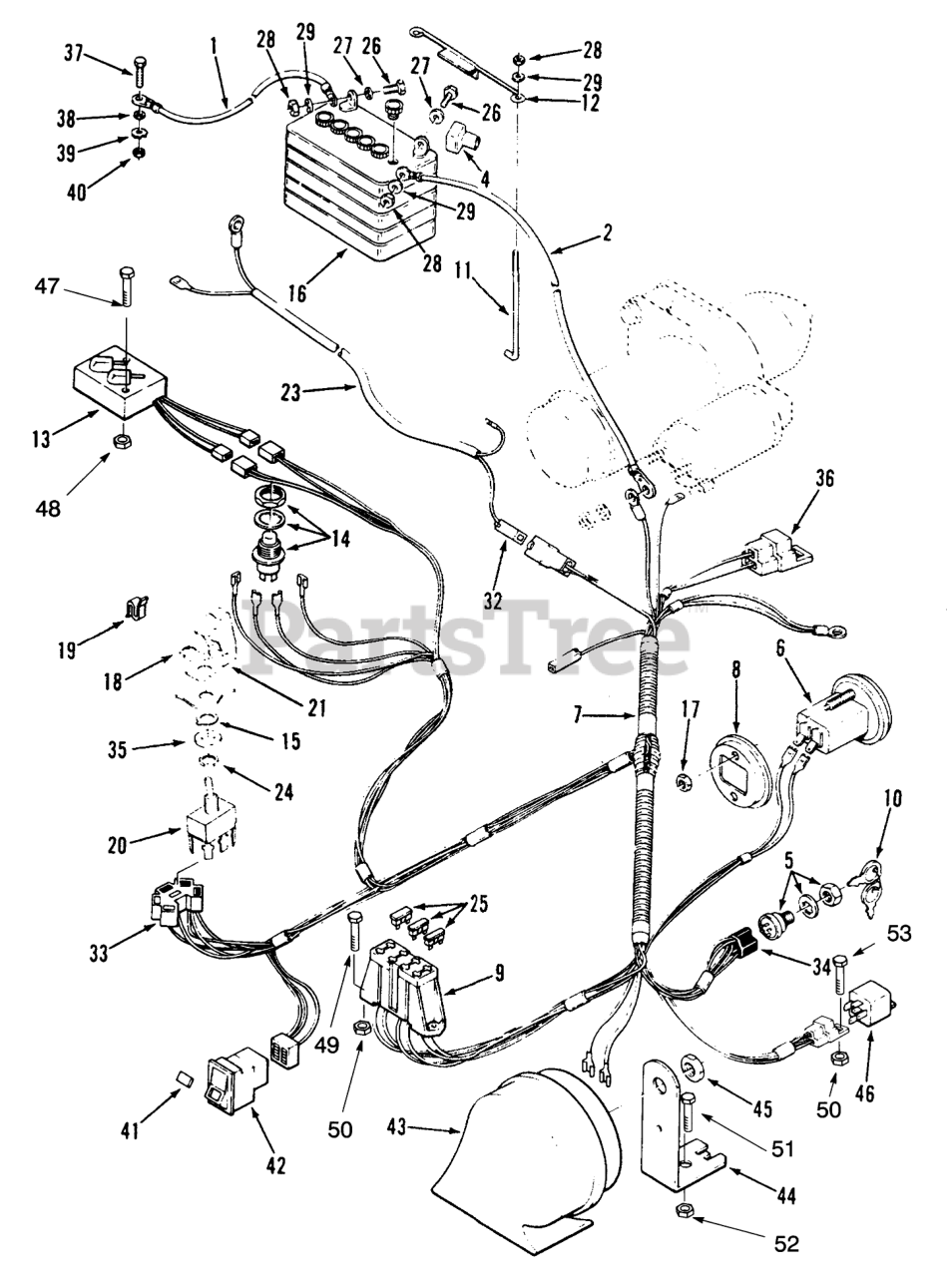

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111078

WIRE -BLACK

$22.99

$

Usually ships in 3-6 days

0

2

Toro 115023

ASS'Y-WIRE BATTERY

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 103990

Switch-Ignition (Incl. Nut 101884 & Screw 103990)

$27.99

$

In Stock, Qty 11

0

6

Toro 78-0020

Hourmeter (Incl. Ref. # 8)
(Superseded to 66-2950)

$

$

Not available

7

Toro 92-9810

Harness-Wiring (Incl. Ref.#9, 33, & 34)

$

$

Not available

8

Toro 78-3320

CLAMP-HOUR METER

$10.99

$

Usually ships in 3-6 days

0

9

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

10

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

11

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 3 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

13

Toro 116237

SWITCH-ASS'Y NEUTRAL

$

$

Not available

14

Toro 116194

SWITCH-PLUNGER

$

$

Not available

15

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

16

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

17

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

18

Toro 113179

DISC

$

$

Not available

19

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

20

Toro 92-9811

SWITCH-TOGGLE, SEALED
(Superseded to 139-1516)

$53.99

$

In Stock, only 1 left!

0

21

Toro 113050

COVER-PTO SWITCH

$71.99

$

Usually ships in 3-6 days

0

23

Toro NN10295

Harness-Wiring (Inc. Ref.#32)

$

$

Not available

24

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

25

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro NN10282

MALE CONNECTOR

$

$

Not available

33

Toro 1

Label-Emissions

$

$

Currently unavailable

34

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, Qty 7

0

35

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

36

Toro 109357

CONNECTOR BODY

$

$

Not available

37

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

41

Toro 116753

LENS-ENG TEMP

$

$

Not available

42

Toro 116752

Switch-Test (Incl. Ref.#41)

$

$

Not available

43

Toro 116749

Horn And Bracket Assembly (Inc. Ref.# 44 & 45)

$136.99

$

Usually ships in 3-6 days

0

44

Toro 116755

BRACKET-HORN

$

$

Not available

45

Toro 3296-65

LOCKNUT

$

$

Not available

46

Toro 48-4700

Relay
(Superseded to 116397)

$33.99

$

In Stock, only 4 left!

0

47

Toro 9107964

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

48

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

49

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

50

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

52

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

53

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0
