74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) Transmission Drive Linkage Parts Diagram

Zero-Turn Mower, Drive Unit Only

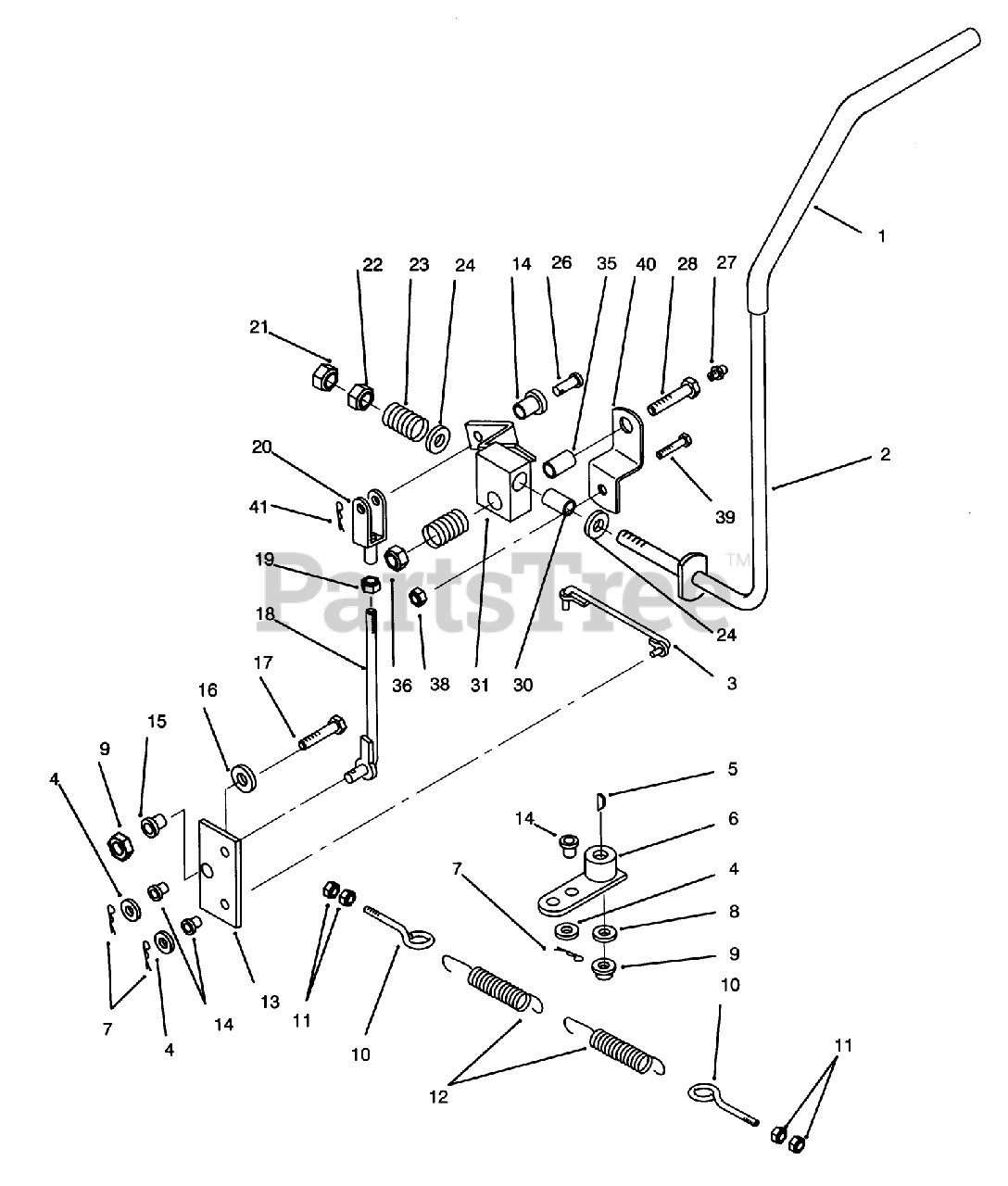

Transmission Drive Linkage Parts Diagram

  • Title

1

Toro 92-6519

GRIP-CUSHION

$

$

Not available

2

Toro 117561

DISCONTINUED

$

$

Not available

Toro 117560

DISCONTINUED

Note: Not illustrated

$

$

Not available

3

Toro 78-7560

ROD-STEERING R.H.

$186.99

$

Usually ships in 3-6 days

0

Toro 78-7570

DISCONTINUED

Note: Not illustrated

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

5

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

6

Toro 113680

See Supercession: 113680-03
(Superseded to 113680-03)

$

$

Not available

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 113688

DISCONTINUED

$

$

Not available

11

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

12

Toro 113081

SPG-NEUTRAL 20217-35

$15.99

$

In Stock, only 2 left!

0

13

Toro 79-1260

See Supercession: 79-1260-03
(Superseded to 79-1260-03)

$

$

Not available

14

Toro 113509

BUSHING-FLANGED

$10.99

$

In Stock, only 1 left!

0

15

Toro 104859

SPACER-LIFT LINK

$54.99

$

Usually ships in 3-6 days

0

16

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

17

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

18

Toro 113570

ASS'Y-ROD

$265.99

$

Usually ships in 3-6 days

0

19

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

20

Toro 282-2

YOKE

$34.99

$

Usually ships in 3-6 days

0

21

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 113632

SPRING

$

$

Not available

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

26

Toro 283-61

PIN-YOKE

$2.49

$

In Stock, only 2 left!

0

27

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

28

Toro 116460

BOLT-STEERING LEVER

$103.99

$

Usually ships in 3-6 days

0

30

Toro 113675

DISCONTINUED

$

$

Not available

31

Toro 114661

See Supercession: 114661-03
(Superseded to 114661-03)

$

$

Not available

Toro 114662

See Supercession: 114662-03
(Superseded to 114662-03)

Note: Not illustrated

$

$

Not available

35

Toro 115295

BUSHING

$8.99

$

Usually ships in 3-6 days

0

36

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 79-0560

STRAP-PIVOT

$

$

Not available

41

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 9

0
