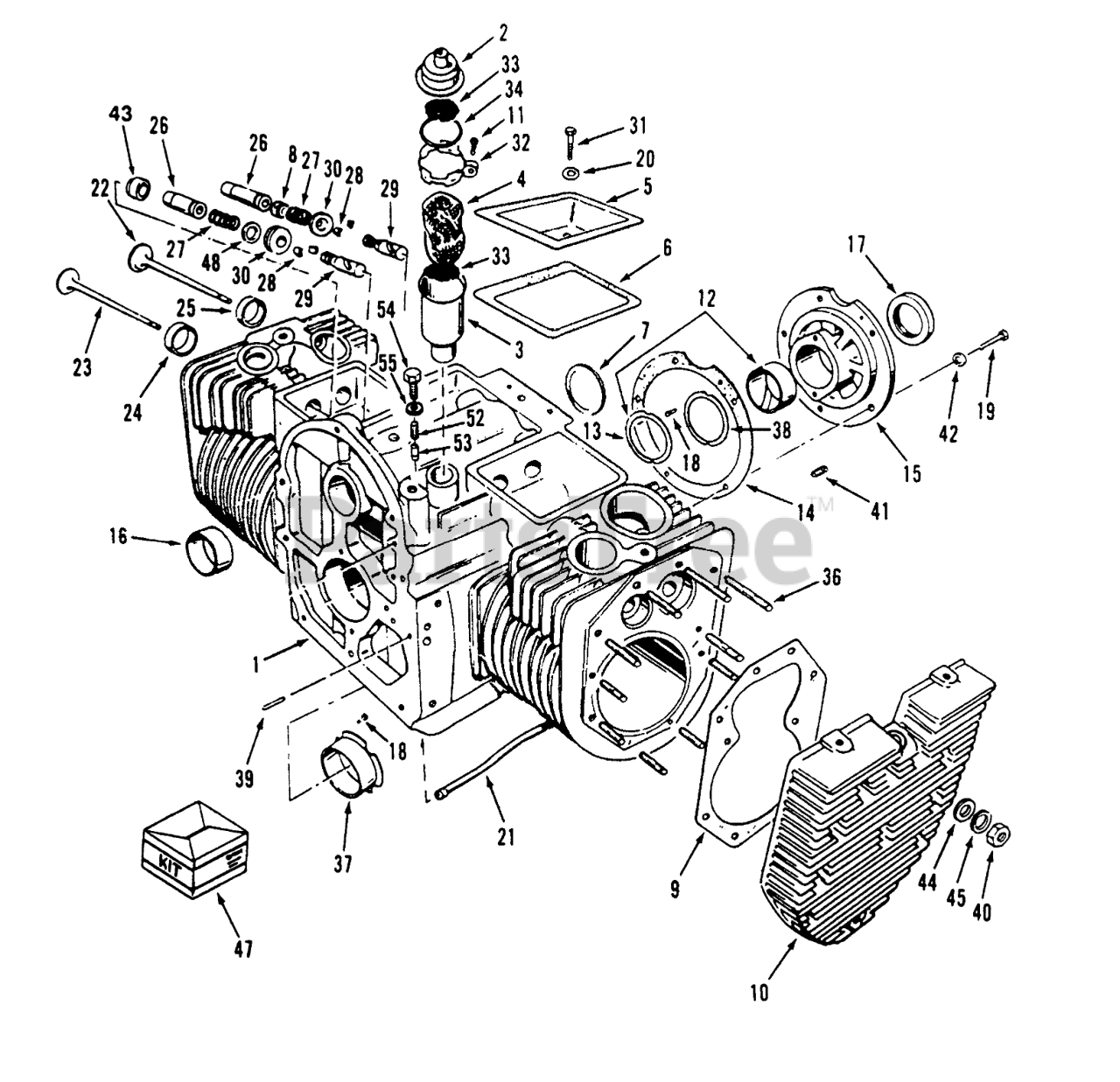

74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) ENGINE CYLINDER BLOCK P224 G SPEC. E Parts Diagram

Zero-Turn Mower, Drive Unit Only

ENGINE CYLINDER BLOCK P224 G SPEC. E Parts Diagram

  • Title

1

Toro 92-0924

Block-Short 24 HP. Spec E (Incl. Ref.# 3,7,13-16,18,21,24-26,30,36,38,& 39)

$

$

Not available

2

Toro 82-0550

BREATHER-CAP AND VALVE

$

$

Not available

3

Toro 82-0540

TUBE-BREATHER

$

$

Not available

4

Toro 57-8580

FILTER

$6.49

$

Usually ships in 3-6 days

0

5

Toro NN10045

VALVE COMPARTMENT

$

$

Not available

6

Toro 82-0260

GASKET-VALVE COVER

$

$

Not available

7

Toro 57-9690

PLUG

$7.99

$

Usually ships in 3-6 days

0

8

Toro 82-0270

SEAL-INTAKE VALVE

$

$

Not available

9

Toro 82-0130

GASKET-CYLINDER HEAD

$42.99

$

Usually ships in 3-6 days

0

10

Toro 82-0210

HEAD-CYLINDER

$

$

Not available

11

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

12

Toro 57-8050

BEARING KIT (STANDARD SLEEVE)

$236.99

$

Usually ships in 3-6 days

0

Toro 59-0020

BEARING-CRANKSHAFT (.002)

Note: Not illustrated

$

$

Not available

Toro 57-8060

BEARING KIT (.010)

Note: Not illustrated

$

$

Not available

Toro 59-0030

BEARING-CRANKSHAFT (.020)

Note: Not illustrated

$

$

Not available

Toro 59-0040

BEARING-CRANKSHAFT (.030)

Note: Not illustrated

$

$

Not available

13

Toro 57-8160

WASHER

$44.99

$

Usually ships in 3-6 days

0

14

Toro 57-8010

GASKET

$26.99

$

In Stock, only 1 left!

0

15

Toro 82-0020

PLATE-BEARING, REAR

$302.99

$

Usually ships in 3-6 days

0

16

Toro 57-8000

SLEEVE-BEARING

$133.99

$

Usually ships in 3-6 days

0

17

Toro 57-9590

SEAL

$36.99

$

In Stock, only 2 left!

0

18

Toro 59-0730

PIN-DRIVE

$

$

Not available

19

Toro 59-0880

HEX HD CAPSCREW

$

$

Not available

20

Toro 57-9740

WASHER

$

$

Not available

21

Toro 82-0480

TUBE-OIL, CRANKCASE

$

$

Not available

22

Toro 82-0220

Intake Valve

$

$

Not available

23

Toro 82-0230

Exhaust Valve
(Superseded to 99-8089)

$

$

Not available

24

Toro 82-0080

INSERT

$

$

Not available

Toro 82-0090

INSERT

Note: Not illustrated

$

$

Not available

Toro 82-0100

INSERT

Note: Not illustrated

$

$

Not available

Toro 82-0110

INSERT

Note: Not illustrated

$

$

Not available

Toro 82-0120

INSERT

Note: Not illustrated

$

$

Not available

25

Toro 82-0160

INSERT-VALVE SEAT

$

$

Not available

Toro 82-0180

INSERT-VAL SEAT

Note: Not illustrated

$38.99

$

Usually ships in 3-6 days

0

Toro 92-0925

INSERT-VALVE SEAT, INTAKE

Note: Not illustrated

$

$

Not available

Toro 92-0926

INSERT-VALVE SEAT, INTAKE

Note: Not illustrated

$

$

Not available

Toro 92-0927

INSERT-VALVE SEAT, INTAKE

Note: Not illustrated

$

$

Not available

26

Toro 82-0140

GUIDE-VALVE, EXHAUST

$76.99

$

Usually ships in 3-6 days

0

Toro 82-0150

GUIDE-VALVE, INTAKE

Note: Not illustrated

$

$

Not available

27

Toro 57-8250

SPRING

$

$

Not available

28

Toro 82-0250

LOCK-VALVE SPRING

$

$

Not available

29

Toro 57-8450

TAPPET

$

$

Not available

Toro 59-0260

TAPPET .002 OS

Note: Not illustrated

$

$

Not available

30

Toro 57-8270

ROTOCAP

$

$

Not available

31

Toro 82-1380

SCREW - CAP HEX HEAD

$

$

Not available

32

Toro 82-0530

Clamp

$

$

Not available

33

Toro 82-0560

SCREEN-BREATHER TUBE

$

$

Not available

34

Toro 82-0570

SEAL - O-RING

$6.49

$

Usually ships in 3-6 days

0

36

Toro 92-0928

STUD-CYLINDER HEAD

$

$

Not available

Toro 92-0929

Stud-Cylinder Head Top
(Superseded to 82-1230)

Note: Not illustrated

$

$

Not available

Toro 92-0932

Stud-Cylinder Head Mid.
(Superseded to 82-1240)

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

37

Toro 57-8020

KIT-BEARING, SLEEVE
(Superseded to 57-8030)

$

$

Not available

Toro 57-9360

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

Toro 57-8030

BEARING KIT (.010)

Note: Not illustrated

$

$

Not available

Toro 57-9800

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

Toro 59-0010

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

38

Toro 57-8170

SHIM

$7.49

$

Usually ships in 3-6 days

0

39

Toro 59-0750

PIN-GEAR COVER

$6.99

$

Usually ships in 3-6 days

0

40

Toro 82-0040

NUT-HEX

$

$

Not available

41

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

42

Toro 82-1310

WASHER-FLAT

$

$

Not available

43

Toro 82-0240

Cap-Exhaust Valve

$

$

Not available

44

Toro 82-1300

WASHER-FLAT HD, TREATED

$

$

Not available

45

Toro 82-1650

WASHER-LOCK, COMPRESS

$7.49

$

Usually ships in 3-6 days

0

47

Toro NN10923

KIT-GASKET CARB REM

$

$

Not available

48

Toro 82-0070

WASHER

$

$

Not available
