74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) PARKING BRAKE Parts Diagram

Zero-Turn Mower, Drive Unit Only

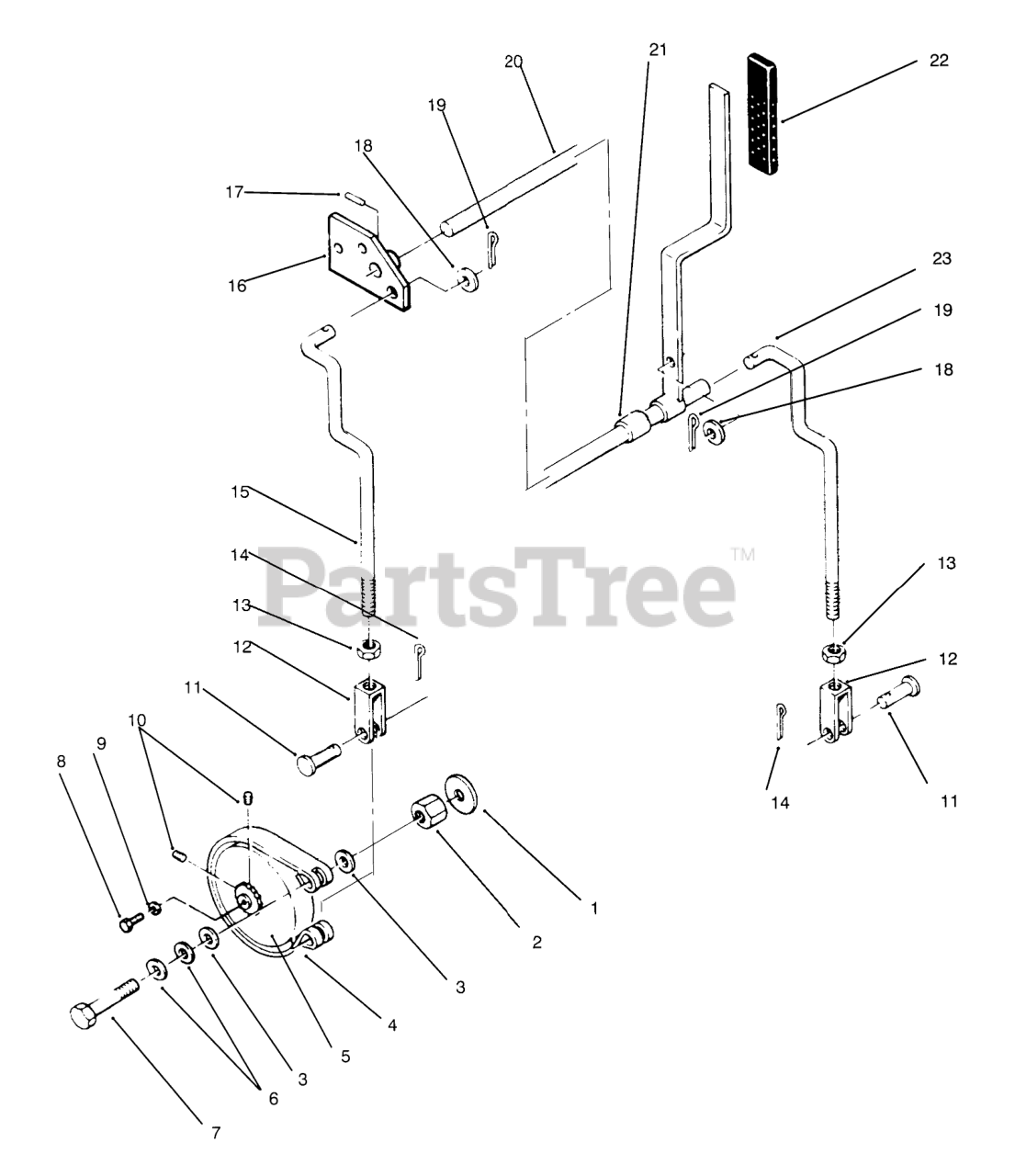

PARKING BRAKE Parts Diagram

  • Title

1

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Toro 113690

NUT-COUPLING

$23.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 113624

BRAKE-BAND

$

$

Not available

5

Toro 113518

ASS'Y-DRUM SPROCKET

$

$

Not available

6

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

7

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

9

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0

10

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 2 left!

0

11

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

12

Toro 113623

ASSY-YOKE BRAKE

$

$

Not available

13

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 14

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 115794

ROD-BRAKE R.H.

$

$

Not available

16

Toro 116478

ASSY-PARKING BRK B

$

$

Not available

17

Toro 32121-114

SPIROL PIN H D

$1.99

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

20

Toro 113668

ASSY-PARKING BRK

$

$

Not available

21

Toro 113665

SPACER-PARKING BR B

$

$

Not available

22

Toro 62-9130

GRIP-HANDLE

$7.49

$

Usually ships in 3-6 days

0

23

Toro 115793

ROD-BRAKE L.H.

$

$

Not available
