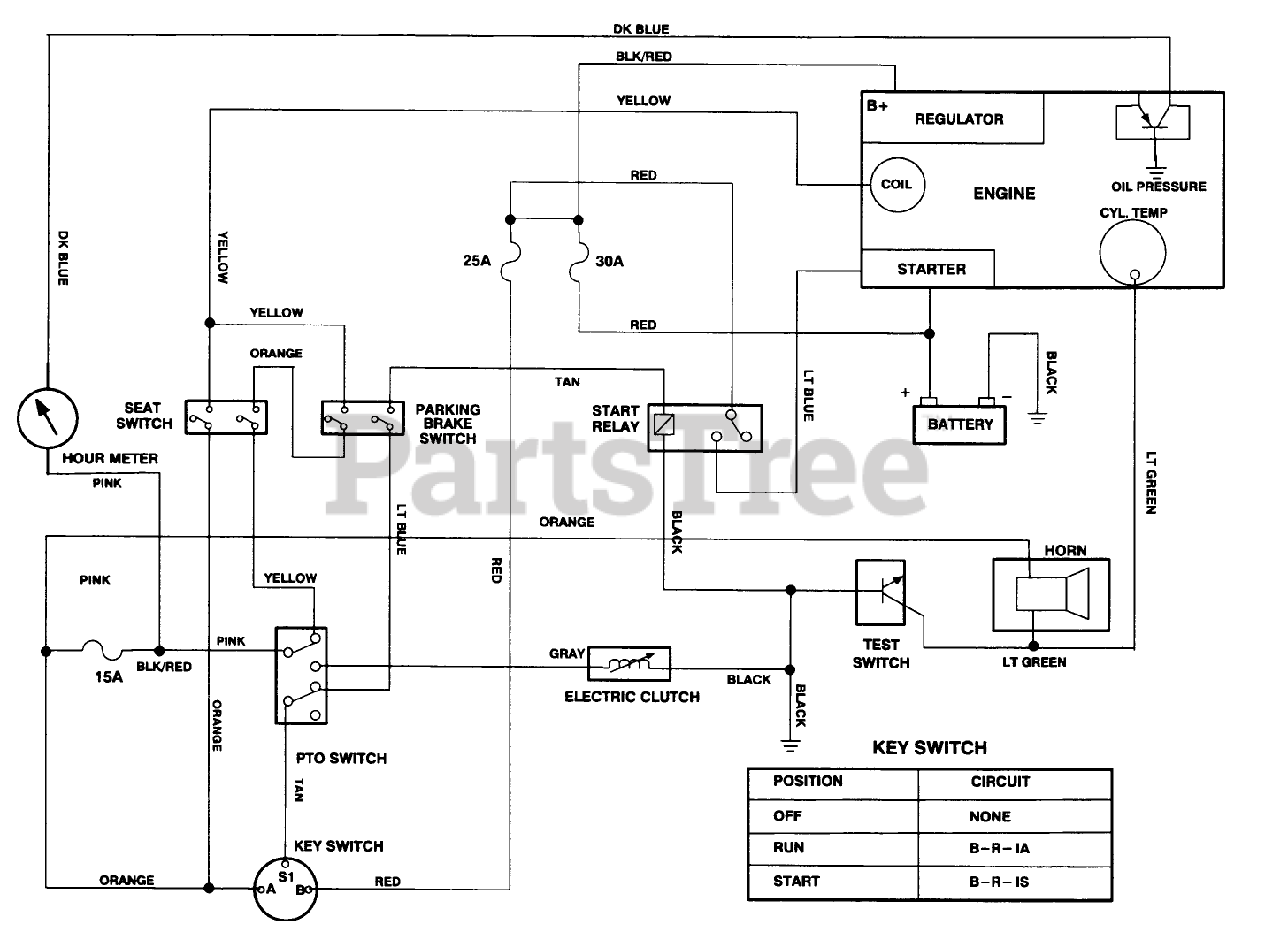

74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) ELECTRICAL SCHEMATIC Parts Diagram

Zero-Turn Mower, Drive Unit Only

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

Toro 92-9810

MAIN-HARNESS & DIAG

$

$

Not available
