74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) OIL PUMP AND FILTER Parts Diagram

Zero-Turn Mower, Drive Unit Only

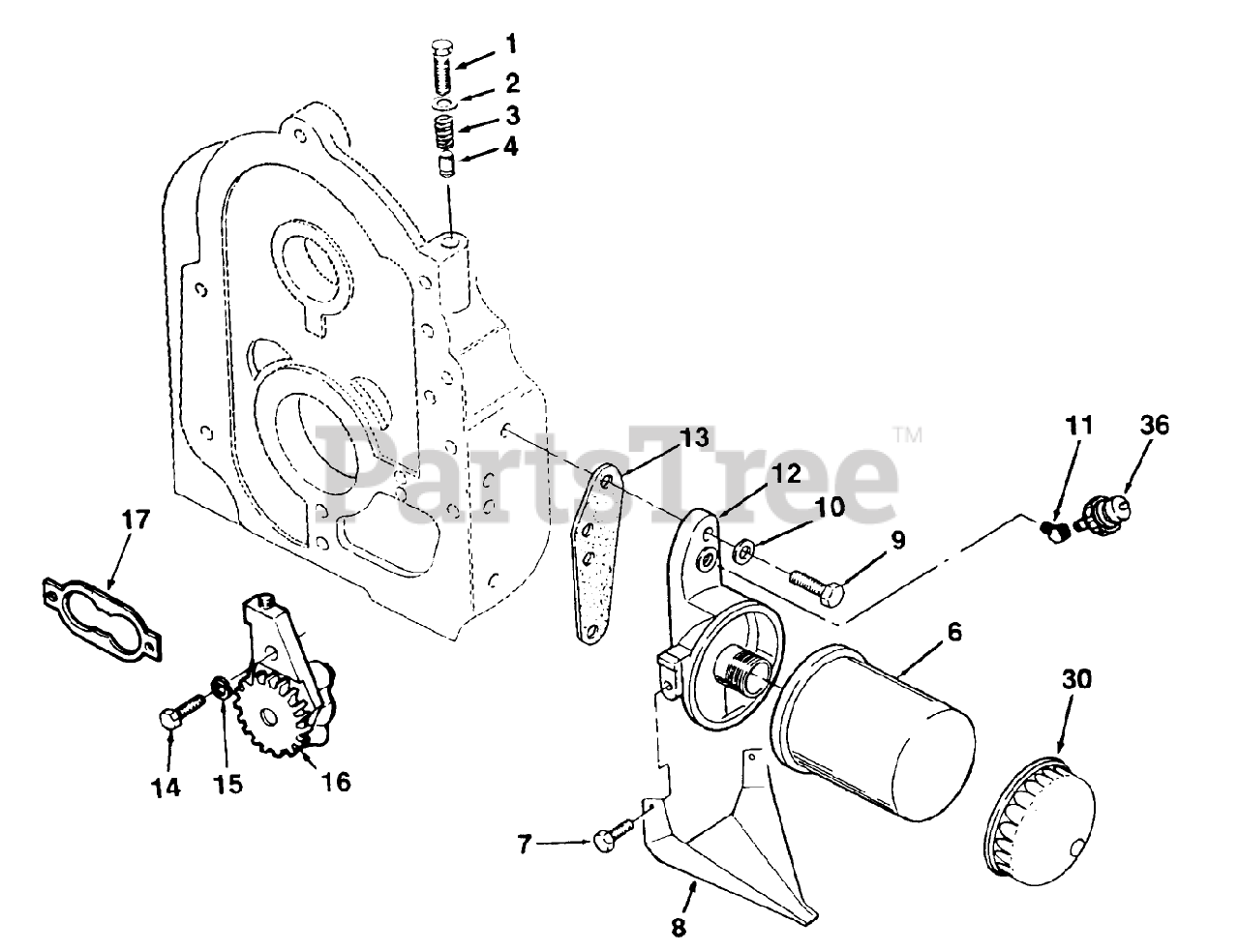

OIL PUMP AND FILTER Parts Diagram

  • Title

1

Toro 59-1160

HX HD CAPSCREW

$

$

Not available

2

Toro 57-9760

WASHER

$

$

Not available

3

Toro 59-0280

SPRING

$

$

Not available

4

Toro 57-8470

PLUNGER

$

$

Not available

6

Toro 57-8530

FILTER-OIL
(Superseded to 108-3817)

$8.49

$

In Stock, only 4 left!

0

7

Toro 82-1510

SCREW-HH

$

$

Not available

8

Toro 82-0510

DRAIN-OIL FILTER

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

10

Toro 57-9750

WASHER

$

$

Not available

11

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

12

Toro 82-0500

ADAPTER-OIL FILTER

$

$

Not available

13

Toro 82-0520

GASKET-OIL FILTER ADAPT

$

$

Not available

14

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

15

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

16

Toro 57-8480

PUMP

$

$

Not available

17

Toro 57-8460

GASKET KIT

$

$

Not available

30

Toro NN10775

WRENCH-OIL FILTER

$

$

Not available

36

Toro 94-6401

Switch-Oil Pressure

$

$

Currently unavailable
