74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) CASTER FORK AND WHEEL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

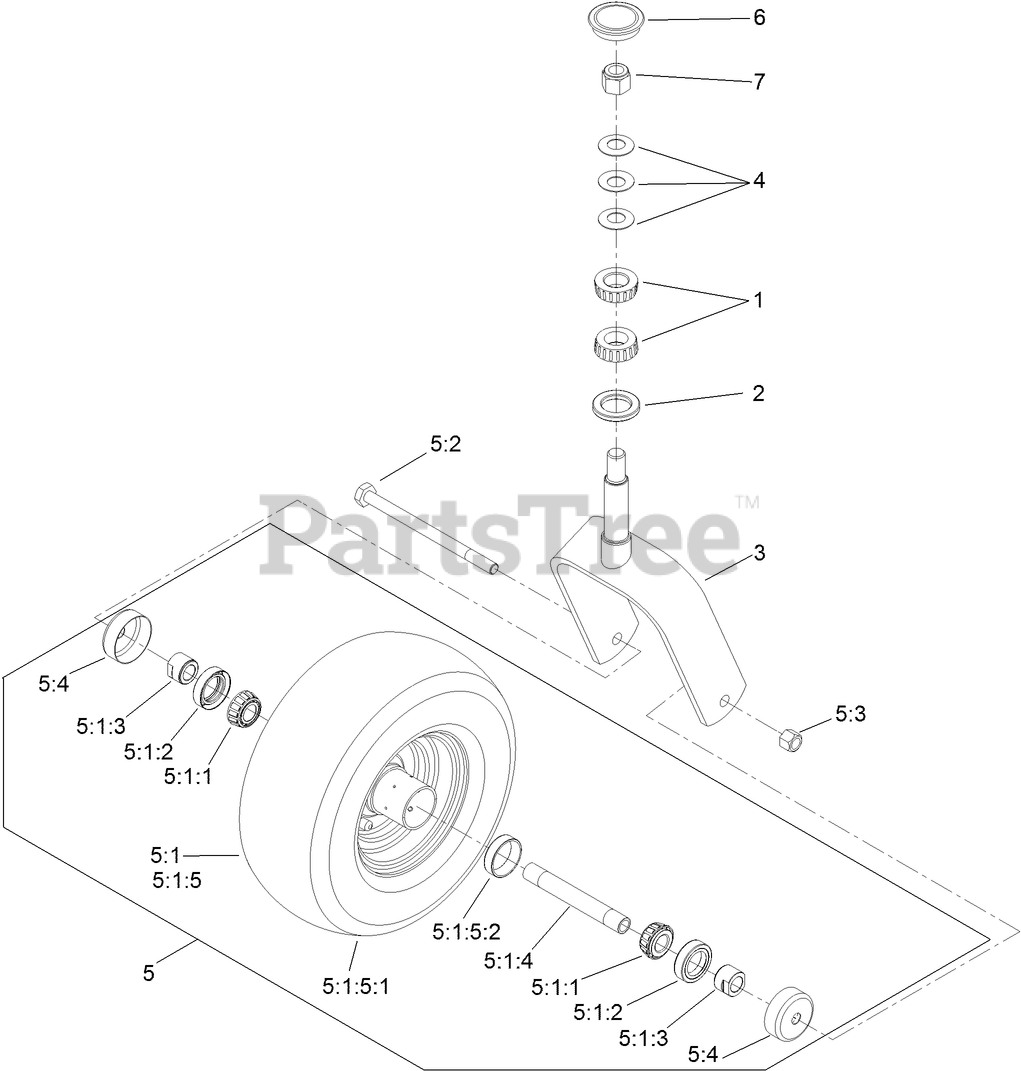

CASTER FORK AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$14.99

$

In Stock, Qty 20+

0

2

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 8

0

3

Toro 1-632511-01

CASTER
(Superseded to 116-8883)

$165.99

$

In Stock, only 3 left!

0

4

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

5

Toro 116-1949

WHEEL AND TIRE ASM

$

$

Not available

5:1

Tire and Wheel ASM

Note: Not serviced separately

$

$

Not available

5:1:1

Toro 1-633585

BEARING-CONE, TAPER

$22.99

$

In Stock, Qty 20+

0

5:1:2

Toro 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 13

0

5:1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, only 3 left!

0

5:1:4

Toro 103-3155

AXLE-CASTER
(Superseded to 126-5360)

$17.99

$

In Stock, only 2 left!

0

5:1:5

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

5:1:5:1

Toro 116-1952

TIRE

$

$

Not available

5:1:5:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

5:2

Toro 325-42

SCREW-HH

$15.99

$

In Stock, Qty 5

0

5:3

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

5:4

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

6

Toro 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 2 left!

0
