74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) RH TRANSAXLE ASSEMBLY NO. 120-7861 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

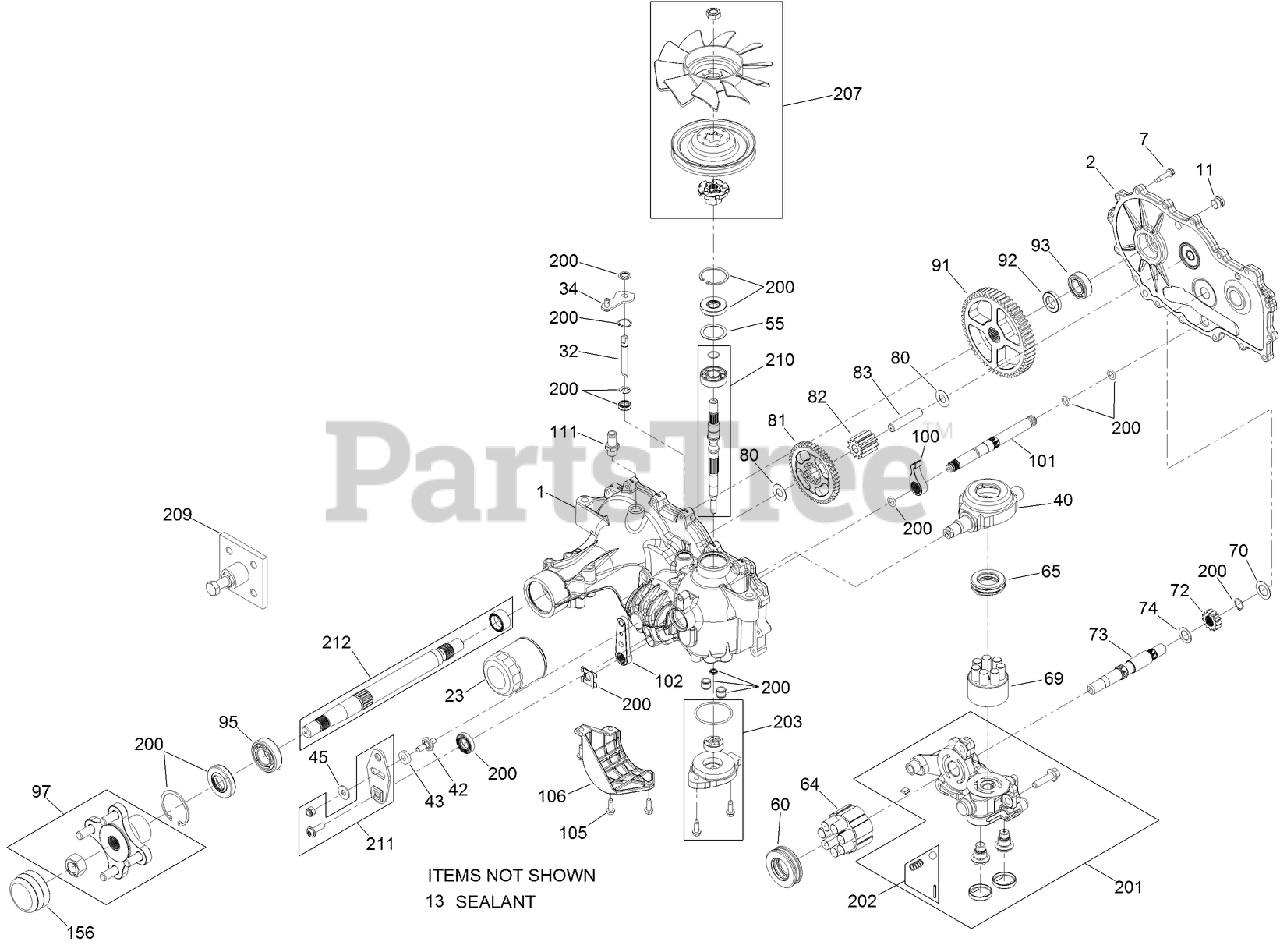

RH TRANSAXLE ASSEMBLY NO. 120-7861 Parts Diagram

  • Title

1

Toro 114-1676

MAIN HOUSING KIT

$598.99

$

Usually ships in 3-6 days

0

2

Toro 117-5358

RH HOUSING SIDE KIT

$188.99

$

Usually ships in 3-6 days

0

7

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 104-2189

PLUG-THREAD, STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, Qty 20+

0

32

Toro 114-1685

ROD-BYPASS

$34.99

$

Usually ships in 3-6 days

0

34

Toro 107-2490

ARM-BYPASS

$56.99

$

Usually ships in 3-6 days

0

40

Toro 104-5304

SWASHPLATE-TRUNNION

$193.99

$

Usually ships in 3-6 days

0

42

Toro 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

43

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

45

Toro 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

55

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

60

Toro 109-2865

BEARING-THRUST
(Superseded to 112-4154)

$101.99

$

Usually ships in 3-6 days

0

64

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$241.99

$

Usually ships in 3-6 days

0

65

Toro 94-6922

BEARING-THRUST

$61.99

$

In Stock, only 3 left!

0

69

Toro 110-8561

PUMP BLOCK ASM

$344.99

$

Usually ships in 3-6 days

0

70

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

72

Toro 120-7972

GEAR-13T

$96.99

$

Usually ships in 3-6 days

0

73

Toro 114-1691

SHAFT-MOTOR

$168.99

$

Usually ships in 3-6 days

0

74

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

81

Toro 120-7973

GEAR-46T

$84.99

$

Usually ships in 3-6 days

0

82

Toro 120-7974

GEAR-11T

$72.99

$

Usually ships in 3-6 days

0

83

Toro 104-5329

PIN-JACKSHAFT

$111.99

$

Usually ships in 3-6 days

0

91

Toro 114-1694

GEAR-54T

$135.99

$

In Stock, only 2 left!

0

92

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

93

Toro 114-1696

BEARING-BALL

$53.99

$

Usually ships in 3-6 days

0

95

Toro 120-7976

BEARING-BALL
(Superseded to 130-8477)

$23.99

$

Usually ships in 3-6 days

0

97

Toro 109-5939

HUB KIT

$101.99

$

In Stock, only 4 left!

0

100

Toro 114-1697

PAWL-BRAKE

$18.99

$

Usually ships in 3-6 days

0

101

Toro 120-7977

BRAKE SHAFT KIT

$128.99

$

Usually ships in 3-6 days

0

102

Toro 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

105

Toro 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

106

Toro 120-7981

GUARD-FILTER, RH

$33.99

$

Usually ships in 3-6 days

0

111

Toro 109-3278

ADAPTER-STRAIGHT

$120.99

$

Usually ships in 3-6 days

0

156

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

In Stock, only 1 left!

0

200

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

$88.99

$

Usually ships in 3-6 days

0

201

Toro 120-7982

RH CENTER SECTION CHARGE KIT

$495.99

$

Usually ships in 3-6 days

0

202

Toro 114-8464

CHARGE RELIEF KIT

$22.99

$

Usually ships in 3-6 days

0

203

Toro 114-8465

CHARGE KIT

$110.99

$

Usually ships in 3-6 days

0

207

Toro 121-2988

FAN AND PULLEY KIT
(Superseded to 135-7344)

$95.99

$

Usually ships in 3-6 days

0

209

Toro 114-8467

PULLER-HUB, 4 BOLT
(Superseded to 130-8482)

$256.99

$

Usually ships in 3-6 days

0

210

Toro 117-5361

INPUT SHAFT KIT
(Superseded to 121-3248)

$267.99

$

Usually ships in 3-6 days

0

211

Toro 117-5362

CONTROL ARM KIT

$28.99

$

In Stock, only 2 left!

0

212

Toro 114-8470

AXLE SHAFT KIT

$263.99

$

Usually ships in 3-6 days

0
