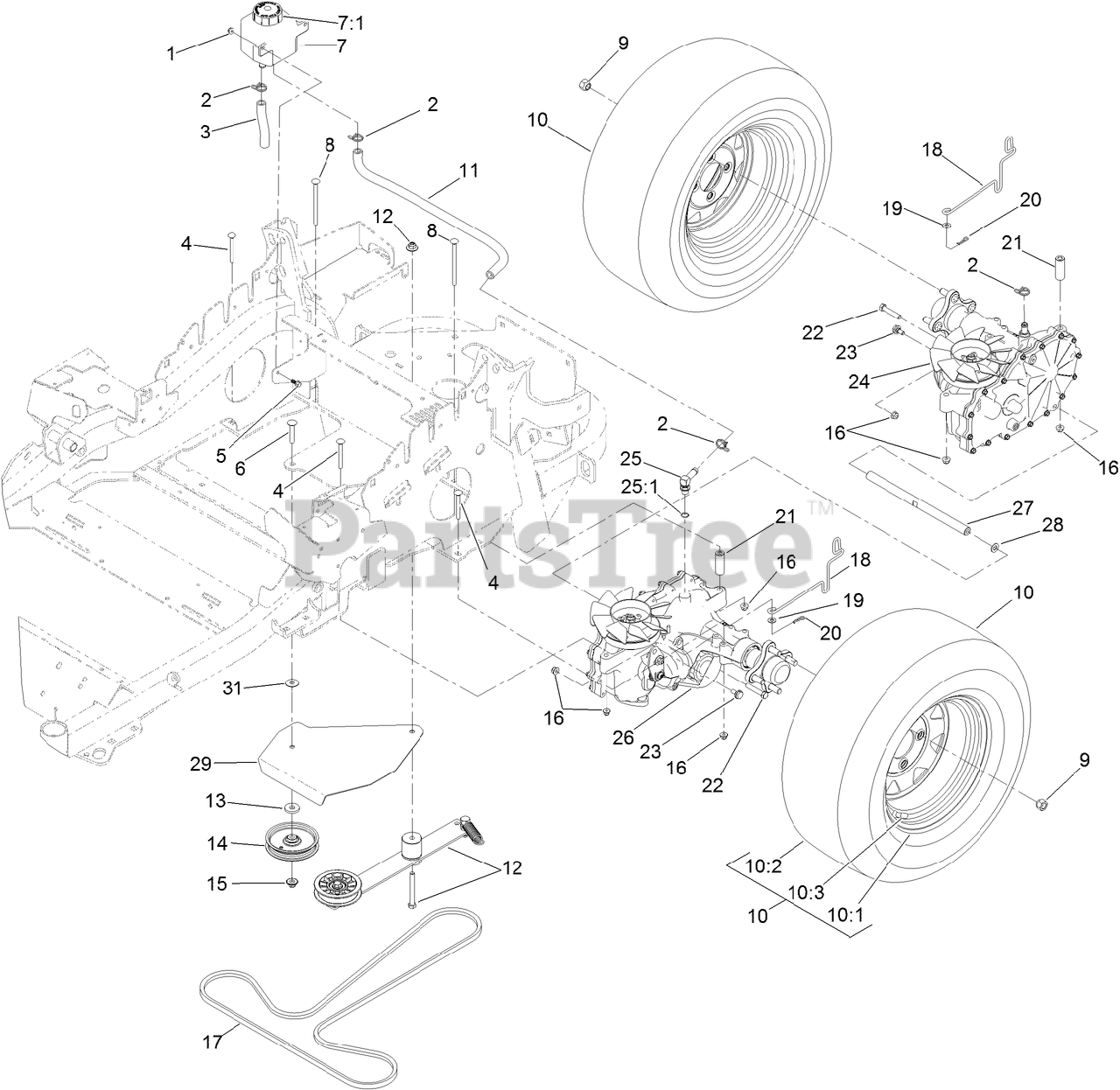

74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) HYDRO DRIVE SYSTEM ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

HYDRO DRIVE SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

3

Toro 119-2642

HOSE-HYD

$8.49

$

Usually ships in 3-6 days

0

4

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 13

0

5

Toro 99-6810

SCREW-HHF

$3.99

$

In Stock, only 2 left!

0

6

Toro 117-9971

BOLT-CARRIAGE

$4.49

$

Usually ships in 3-6 days

0

7

Toro 109-2250

TANK-HYD

$69.99

$

In Stock, Qty 7

0

7:1

Toro 109-3320

CAP-RESERVOIR, HYD

$29.99

$

In Stock, only 3 left!

0

8

Toro 3230-30

SCREW-CARR

$12.99

$

In Stock, only 3 left!

0

9

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

10

Toro 127-9504

WHEEL AND TIRE ASM

$434.99

$

Usually ships in 3-6 days

0

10:1

Toro 127-9505

WHEEL

$175.99

$

Usually ships in 3-6 days

0

10:2

Toro 120-3271

TIRE
(Superseded to 142-4282)

$209.99

$

Usually ships in 3-6 days

0

10:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

11

Toro 119-2689

HOSE-HYD

$41.99

$

Usually ships in 3-6 days

0

12

HYDRO IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

13

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

14

Toro 93-1622

PULLEY-IDLER

$44.99

$

In Stock, Qty 20+

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 114860

BELT-V

$44.99

$

In Stock, Qty 14

0

18

Toro 125-8950

ROD-BYPASS

$18.99

$

Usually ships in 3-6 days

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

21

Toro 109-3652

SPACER-HYDRO

$13.99

$

Usually ships in 3-6 days

0

22

Toro 94-7972

SCREW-HH W/LOCTITE

$5.49

$

In Stock, only 2 left!

0

23

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 20+

0

24

Toro 130-2850

RH TRANSAXLE ASM

$3021.99

$

Usually ships in 3-6 days

0

25

Toro 109-6449

FITTING-ELBOW, 90

$35.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

26

Toro 130-2851

LH TRANSAXLE ASM

$3021.99

$

Usually ships in 3-6 days

0

27

Toro 117-8585

SHAFT-CROSS, HYDRO

$46.99

$

Usually ships in 3-6 days

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 125-4777-01

PLATE-GUARD

$

$

Not available

31

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0
