74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) DECK ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

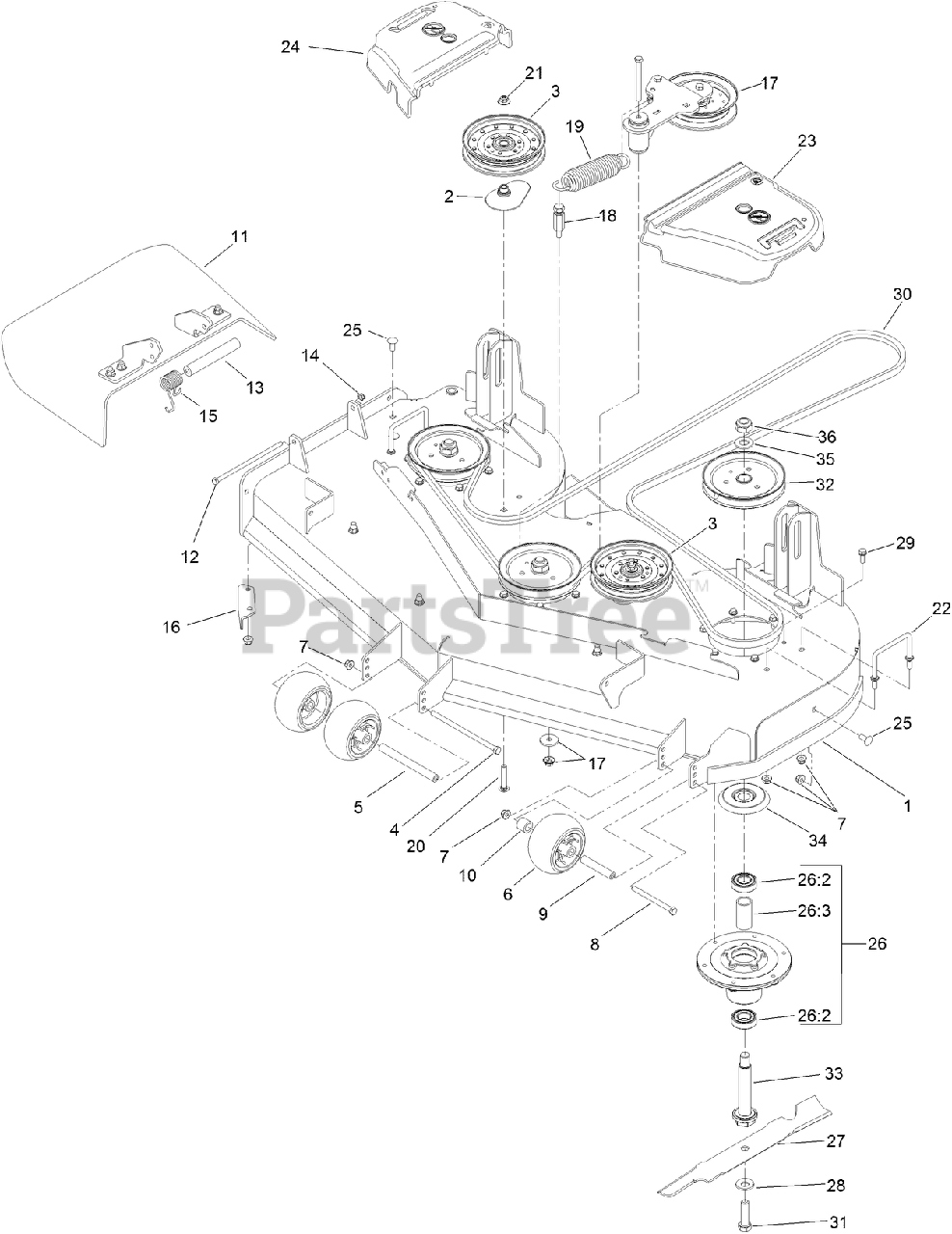

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 120-2351

DECK DECAL ASM

$2076.99

$

Usually ships in 3-6 days

0

2

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

3

Toro 116-4670

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$60.99

$

In Stock, Qty 13

0

4

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, Qty 20+

0

5

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

6

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

9

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

10

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

11

Toro 120-2451

DEFLECTOR ASM

$232.99

$

Usually ships in 3-6 days

0

12

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

13

Toro 105-4622

SPACER

$10.99

$

In Stock, only 4 left!

0

14

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

15

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, Qty 6

0

16

Toro 107-8541-01

BAFFLE-DISCHARGE

$20.99

$

Usually ships in 3-6 days

0

17

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

18

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

19

Toro 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 20+

0

20

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 6

0

23

Toro 109-6936

COVER-BELT, LH

$37.99

$

In Stock, only 1 left!

0

24

Toro 109-6935

COVER-BELT, RH

$37.99

$

In Stock, only 1 left!

0

25

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

26

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$101.99

$

In Stock, Qty 20+

0

26:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

26:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, Qty 11

0

27

Toro 120-2379-03

BLADE-HI FLOW, 18 IN
(Superseded to 120-2379)

$29.99

$

In Stock, Qty 7

0

28

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, Qty 20+

0

29

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

30

Toro 114-5857

BELT-V

$166.99

$

Usually ships in 3-6 days

0

31

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

32

Toro 120-7855

PULLEY

$53.99

$

Usually ships in 3-6 days

0

33

Toro 120-2505

SPINDLE-SHAFT

$56.99

$

In Stock, Qty 5

0

34

Toro 117-7210

SHIELD-BEARING

$9.99

$

In Stock, Qty 20+

0

35

Toro 92-5836

WASHER

$5.49

$

In Stock, Qty 6

0

36

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0
