74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) DECK HEIGHT CONTROL Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

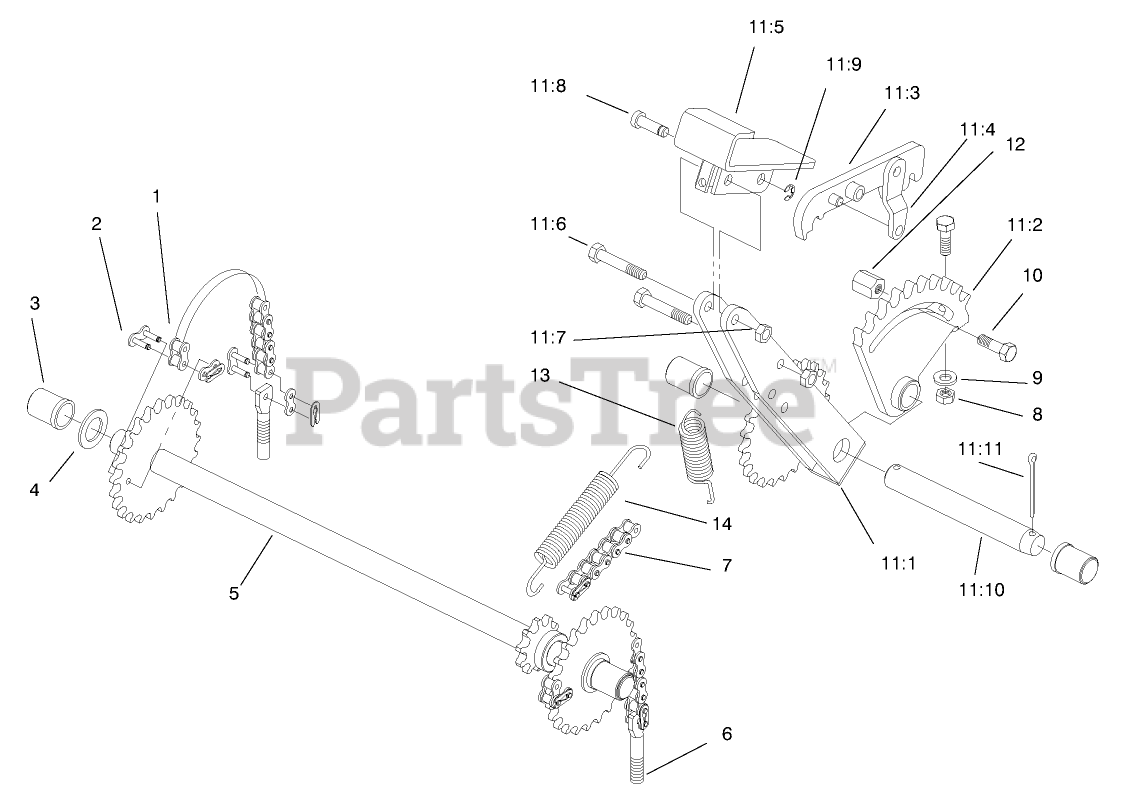

DECK HEIGHT CONTROL Parts Diagram

  • Title

1

Toro 113699

CHAIN-DECK LIFT

$46.99

$

Usually ships in 3-6 days

0

2

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$5.99

$

In Stock, only 1 left!

0

3

Toro 113687

BEARING-FLANGED

$

$

Not available

4

Toro 9202254

WASHER

$3.49

$

In Stock, only 2 left!

0

5

Toro 113684

ASM-Sprocket
(Superseded to 113684-03)

$295.99

$

Usually ships in 3-6 days

0

6

Toro 113697

EYE-BOLT 3/8-16X2.50

$

$

Not available

7

Toro 115855

CHAIN-FOOT PEDAL DR

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11:1

Toro 112957

ASSY-LVR ARM 1022 B

$120.99

$

Usually ships in 3-6 days

0

11:2

Toro 112958

HEIGHT CONTROL SP B

$

$

Not available

11:3

Toro 112956

LIFT-ARM PWL B

$

$

Not available

11:4

Toro 112955

PIVOT-LINK B

$

$

Not available

11:5

Toro 112954

PEDAL-FOOT 10218- B

$

$

Not available

11:6

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

11:7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11:8

Toro 114613

PIN-LOCK

$

$

Not available

11:9

Toro 100307

E RING

$

$

Not available

11:10

Toro 113149

PIN-PEDAL

$

$

Not available

11:11

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

11

Toro 115024

ASM-Deck Hgt Control

$

$

Currently unavailable

12

Toro 112941

HEX-STOP NUT N-140

$

$

Not available

13

Toro 113081

SPG-NEUTRAL 20217-35

$13.99

$

In Stock, only 1 left!

0

14

Toro 114183

SPRING - EXTENSION

$92.99

$

Usually ships in 3-6 days

0
