74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) ELECTRICAL SYSTEMS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

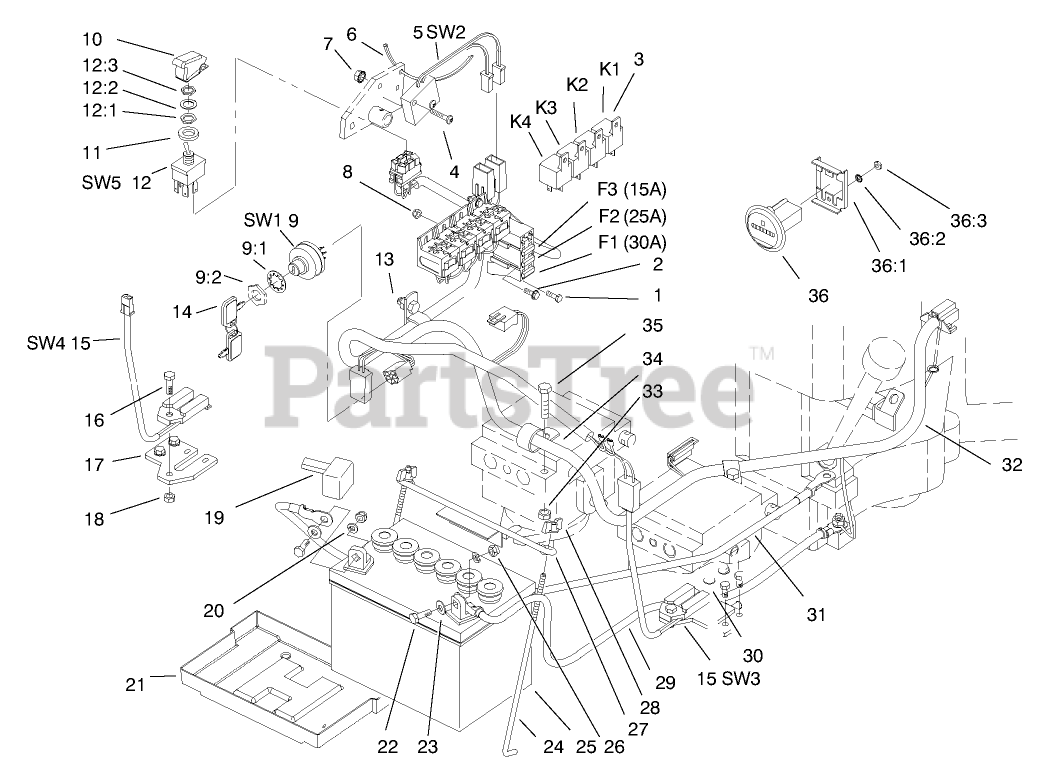

ELECTRICAL SYSTEMS Parts Diagram

  • Title

1

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 6

0

2

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

3

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

4

Toro 9107964

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

5

Toro 116237

SWITCH-ASS'Y NEUTRAL

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 12

0

7

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, Qty 11

0

9:1

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

9:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

10

Toro 113050

COVER-PTO SWITCH

$71.99

$

Usually ships in 3-6 days

0

11

Toro 9202424

Spacer
(Superseded to 920242)

$6.49

$

Usually ships in 3-6 days

0

12

Toro 92-9811

SWITCH-TOGGLE, SEALED
(Superseded to 139-1516)

$53.99

$

In Stock, only 1 left!

0

12:1

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

12:2

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

12:3

Toro 113179

DISC

$

$

Not available

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

15

Toro 684368

Switch ASM
(Superseded to 98-2861)

$

$

Not available

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 94-6184

PLATE - SWITCH MOUNT

$

$

Not available

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

20

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 94-6146

RETAINER-BATTERY

$13.99

$

Usually ships in 3-6 days

0

25

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

26

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

27

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

29

Toro 94-6168

WIRE-GROUND, BATTERY

$38.99

$

Usually ships in 3-6 days

0

30

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

31

Toro 94-6204

WIRE - BATTERY POSITIVE

$

$

Not available

32

Toro 94-6203

Harness-Main
(Superseded to 99-5862)

$

$

Not available

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

35

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 78-0020

Hourmeter
(Superseded to 66-2950)

$

$

Not available

36:1

Toro 78-3320

CLAMP-HOUR METER

$10.99

$

Usually ships in 3-6 days

0

36:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

36:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0
