74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) HYDRAULIC SYSTEMS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

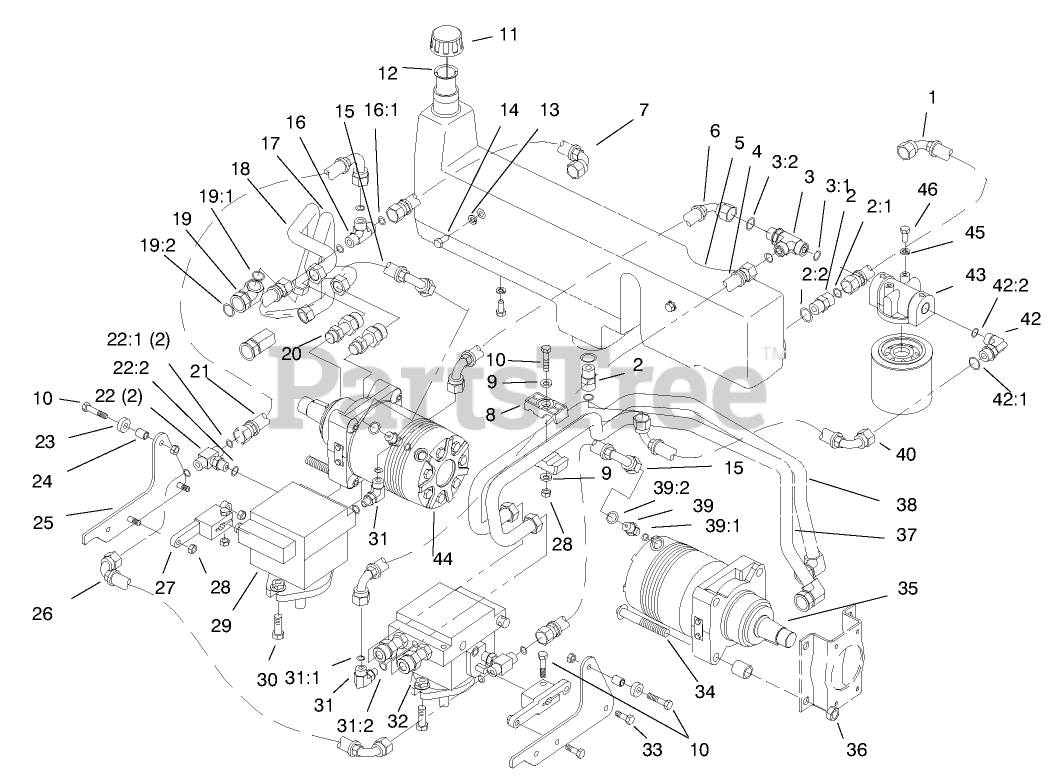

HYDRAULIC SYSTEMS Parts Diagram

  • Title

1

Toro 94-6244

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

2

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

2:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

2:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

3

Toro 340-109

FITTING-TEE

$68.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

3:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 94-6246

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

5

Toro 94-6133

RESERVOIR - OIL

$865.99

$

Usually ships in 3-6 days

0

6

Toro 94-6247

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

7

Toro 94-6249

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

8

Toro 56-7971

CLAMP-TUBE

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 94-6160

ASM - OIL CAP

$

$

Not available

12

Toro 94-6159

SCREEN - FILLER

$

$

Not available

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 94-6251

ASSEMBLY - HYDRAULIC HOSE

$142.99

$

Usually ships in 3-6 days

0

16

Toro 340-20

TEE - 11/16 ORS

$11.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

17

Toro 94-6153

Tube ASM-Right
(Superseded to 95-3258)

$

$

Not available

18

Toro 94-6149

Tube ASM-Right
(Superseded to 95-3258)

$

$

Not available

19

Toro 340-17

FITTING-ELBOW-90

$58.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 14

0

19:2

Toro 237-80

O-RING

$6.49

$

In Stock, only 3 left!

0

20

Toro 94-6150

Fitting-Hydraulic
(Superseded to 340-4)

$11.99

$

In Stock, only 3 left!

0

21

Toro 94-6248

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

22

Toro 340-94

ADAPTER

$47.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

22:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

23

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

24

Toro 88-7450

SPACER-LEVER, CONTROL

$13.99

$

Usually ships in 3-6 days

0

25

Toro 94-6151

Arm-Follower
(Superseded to 94-6151-03)

$

$

Not available

26

Toro 94-6245

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

27

Toro 82-3790

ARM-PUMP

$

$

Not available

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 82-8220

HYDRAULIC PUMP

$2816.99

$

Usually ships in 3-6 days

0

30

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 340-97

FITTING-ELBOW 90

$41.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

31:2

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

32

Toro 32128-42

NUT-HF

$1.49

$

In Stock, Qty 5

0

33

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 3274-100

SCREW-HSH

$10.99

$

Usually ships in 3-6 days

0

35

Toro 94-6157

MOTOR - WHEEL LH

$3078.99

$

Usually ships in 3-6 days

0

36

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 94-6152

Tube ASM-Left
(Superseded to 95-3257)

$

$

Not available

38

Toro 94-6155

Tube ASM-Left
(Superseded to 95-3257)

$

$

Not available

39

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

39:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

40

Toro 94-6243

ASSEMBLY - HYDRAULIC HOSE

$

$

Not available

41

Toro 67-8110

CARTRIDGE-FILTER, OIL

$23.99

$

In Stock, only 3 left!

0

42

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 1 left!

0

42:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

42:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

43

Toro 86-9080

HEAD-FILTER

$117.99

$

Usually ships in 3-6 days

0

44

Toro 94-6156

MOTOR - WHEEL RH

$3078.99

$

Usually ships in 3-6 days

0

45

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

46

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

Toro 505-79

OIL-TRANS/HYD (PER TORO DS 730)

$

$

Currently unavailable

47

Toro 76-0800

SEAL KIT

Note: Not illustrated

$95.99

$

Usually ships in 3-6 days

0
