74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) PARKING BRAKE Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

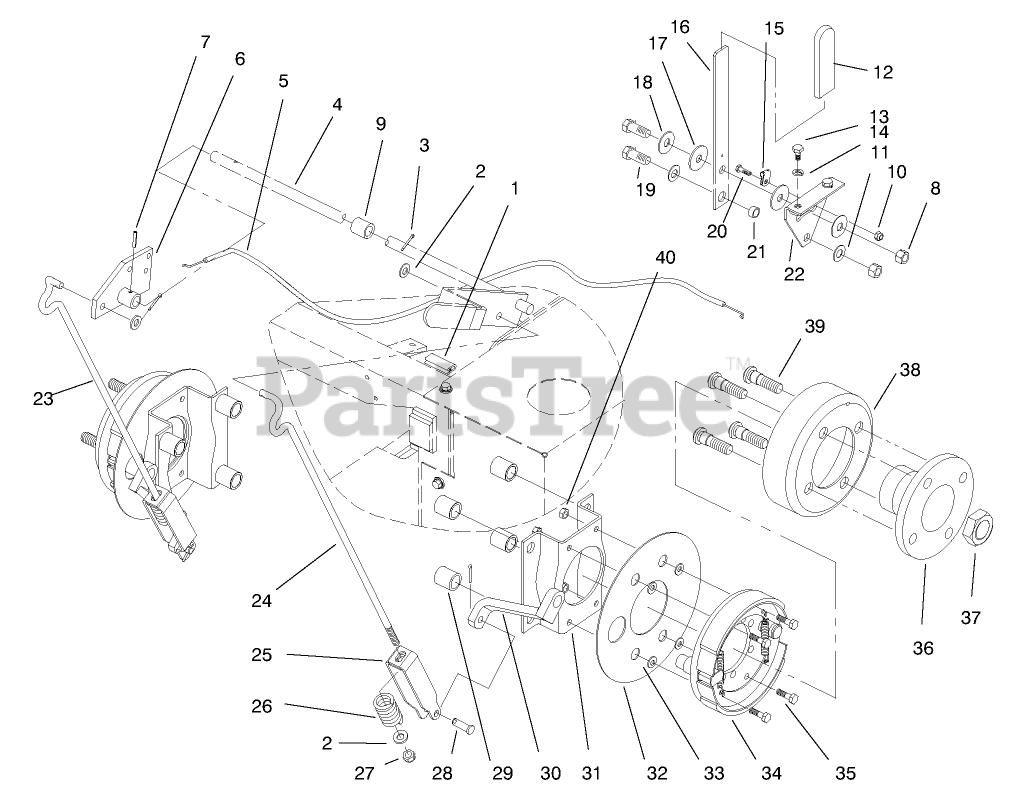

PARKING BRAKE Parts Diagram

  • Title

1

Toro 115200

EDGE TRIM

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

4

Toro 94-6166

WA - BRAKE HANDLE B

$

$

Not available

5

Toro 94-6154

ASSEMBLY - CONTROL

$17.99

$

Usually ships in 3-6 days

0

6

Toro 116478

ASSY-PARKING BRK B

$

$

Not available

7

Toro 32121-114

SPIROL PIN H D

$1.99

$

Usually ships in 3-6 days

0

8

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

9

Toro 113665

SPACER-PARKING BR B

$

$

Not available

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 62-9130

GRIP-HANDLE

$7.49

$

Usually ships in 3-6 days

0

13

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

14

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 2412-58

CLAMP

$

$

Not available

16

Toro 79-4800

Handle
(Superseded to 79-4800-03)

$45.99

$

Usually ships in 3-6 days

0

17

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

18

Toro 100365

WASHER-SPRING DISC

$

$

Not available

19

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 6

0

21

Toro 6331

SPACER CLUTCH ARM

$

$

Not available

22

Toro 94-6262

CONTROL BRACKET WA B

$

$

Not available

23

Toro 94-6164

ROD - RH BRAKE

$

$

Not available

24

Toro 94-6163

ROD - LH BRAKE

$59.99

$

Usually ships in 3-6 days

0

25

Toro 94-6226

Clevis-Brake
(Superseded to 94-6226-03)

$

$

Not available

26

Toro 94-6207

SPRING - COMPRESSION B

$

$

Not available

27

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 10

0

28

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

29

Toro 92-1715

SPACER

$9.99

$

Usually ships in 3-6 days

0

30

Toro 94-6182

WA - BRAKE LEVER B

$

$

Not available

31

Toro 84-2000

Bracket-Brake
(Superseded to 84-2000-03)

$

$

Not available

32

Toro 83-9340

SHIELD-BRAKE, GRASS

$12.99

$

Usually ships in 3-6 days

0

33

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 71-1500

BrakeASM
(Superseded to 104-7705)

$201.99

$

Usually ships in 3-6 days

0

35

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 93-6838

Hub-Wheel
(Superseded to 93-6838-03)

$93.99

$

In Stock, only 1 left!

0

37

Toro 26-3790

NUT-LOCK

$28.99

$

Usually ships in 3-6 days

0

38

Toro 10-6850

DRUM-BRAKE

$62.99

$

In Stock, only 1 left!

0

39

Toro 85-6540

STUD-DRIVE

$9.99

$

In Stock, only 1 left!

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
