74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) SEAT AND FENDERS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

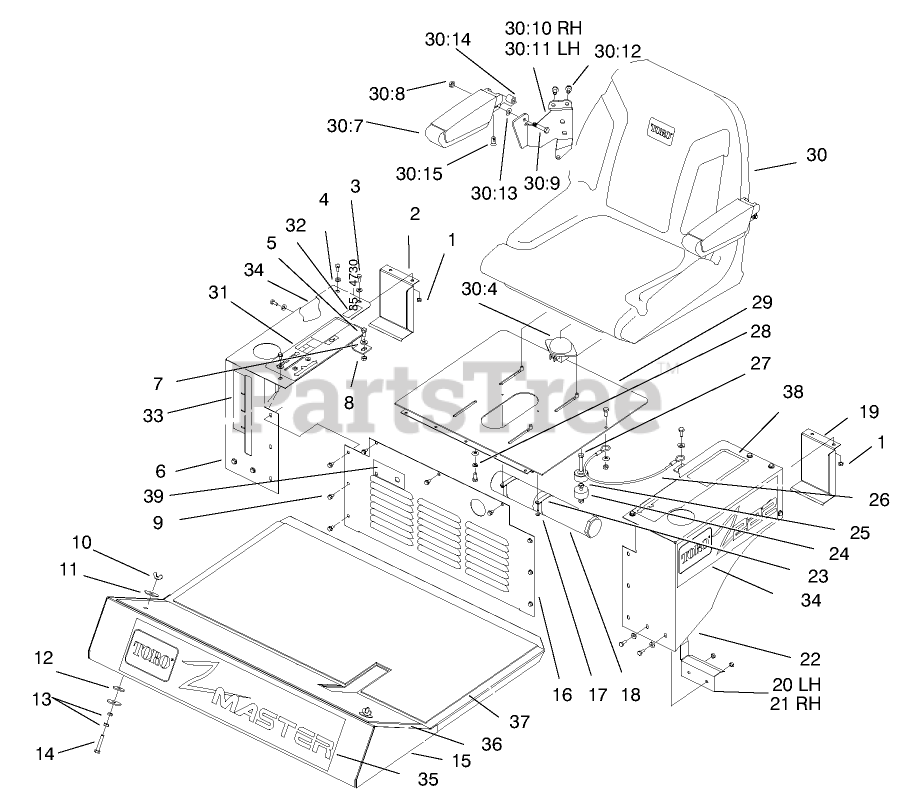

SEAT AND FENDERS Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 111909

Bracket-Fender Rear RH
(Superseded to 111909-01)

$

$

Not available

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 94-6263

ASM - RH FENDER W/DECALS

$

$

Not available

7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 9155854

Nut-Wing
(Superseded to 915585)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

12

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

14

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

15

Toro 111891

Floor Pan
(Superseded to 111891-01)

$

$

Not available

16

Toro 79-2710

Front Panel
(Superseded to 79-2710-01)

$

$

Not available

17

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

18

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

19

Toro 111910

Bracket-Fender Rear LH
(Superseded to 111910-01)

$

$

Not available

20

Toro 111912

Bracket-Fender Frt LH
(Superseded to 111912-01)

$

$

Not available

21

Toro 111911

Bracket-Fender Frt RH
(Superseded to 111911-01)

$

$

Not available

22

Toro 94-6266

ASM - LH FENDER W/DECALS

$608.99

$

Usually ships in 3-6 days

0

23

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

24

Toro 94-6148

SPACER - SEAT

$

$

Not available

25

Toro 116839

BUMPER

$25.99

$

Usually ships in 3-6 days

0

26

Toro 115850

Cable

$

$

Not available

27

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

28

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 94-6127

Seat Plate ASM
(Superseded to 94-6127-01)

$

$

Not available

30

Toro 94-6286

OLYMPIC SEAT--W/ARMRESTS

$

$

Not available

30:4

Toro 92-6282

SWITCH-SEAT

$33.99

$

In Stock, only 3 left!

0

30:7

Toro 69-1180

ARMREST

$192.99

$

Usually ships in 3-6 days

0

30:8

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30:9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30:10

Toro 69-0770

BRACKET-ARM, RH

$133.99

$

Usually ships in 3-6 days

0

30:11

Toro 69-0760

BRACKET-ARM, LH

$133.99

$

Usually ships in 3-6 days

0

30:12

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

30:13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30:14

Toro 92-7301

SPACER

$10.99

$

Usually ships in 3-6 days

0

30:15

Toro 92-7318

SCREW

$2.99

$

Usually ships in 3-6 days

0

30:1

Toro 92-6534

SHELL

$

$

Not available

30:2

Toro 92-6533

SEAT CUSHION KIT

$356.99

$

Usually ships in 3-6 days

0

30:3

Toro 351-78

EDGING

$

$

Not available

30:5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

30:6

Toro 351-80

CLIP

$11.99

$

Usually ships in 3-6 days

0

31

Toro 94-6234

DECAL - DANGER

$

$

Not available

32

Toro 85-4730

DECAL-ONLY, HYD OIL

$2.99

$

Usually ships in 3-6 days

0

33

Toro 94-6233

DECAL - FUEL GUAGE

$

$

Not available

34

Toro 94-6232

DECAL - Z 222

$

$

Not available

35

Toro 94-6231

DECAL - Z MASTER

$

$

Not available

36

Toro 94-6222

ABRASIVE - FLOOR

$96.99

$

Usually ships in 3-6 days

0

37

Toro 94-6221

ABRASIVE - FLOOR

$150.99

$

Usually ships in 3-6 days

0

38

Toro 94-6235

DECAL - DANGER

$

$

Not available

39

Toro 114574

DECAL-CHOKE/IGNITION

$

$

Not available
