74162 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240003000) (2004) FRONT FRAME ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

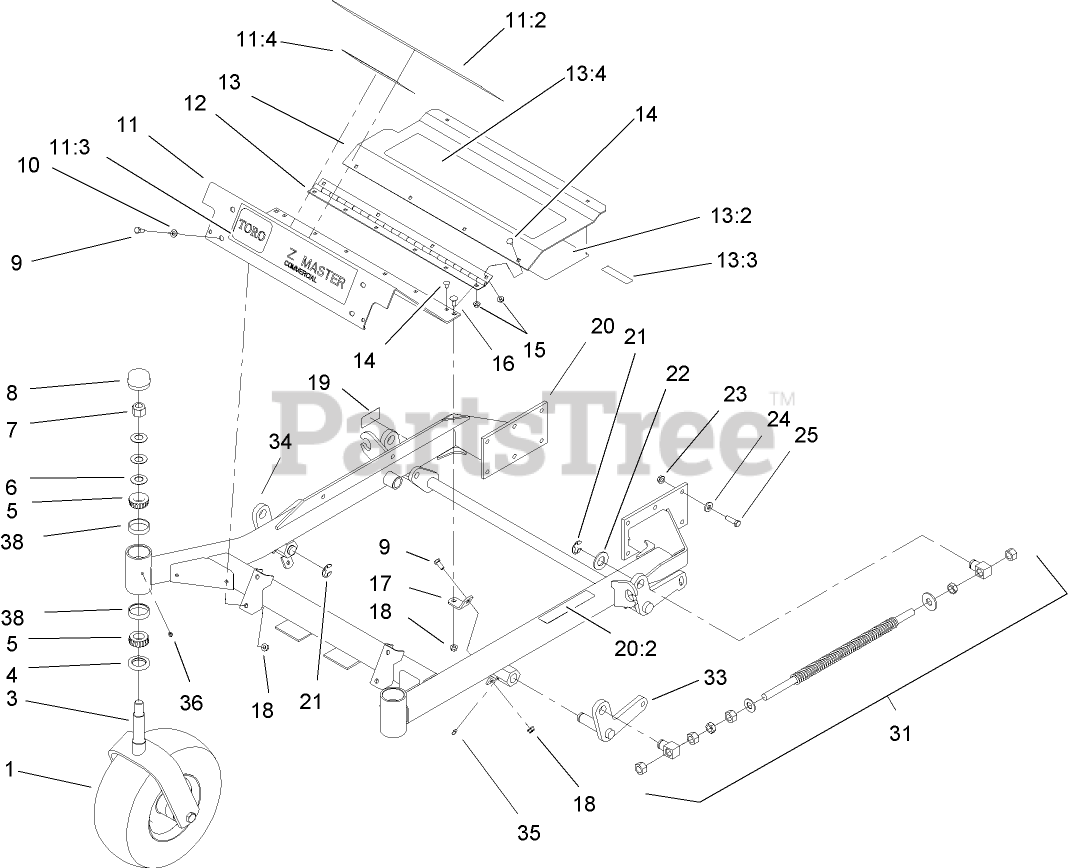

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 1-634662

CASTER WHEEL ASM

$246.99

$

In Stock, only 2 left!

0

3

Toro 1-632511-01

CASTER
(Superseded to 116-8883)

$142.99

$

In Stock, Qty 7

0

4

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

5

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 14

0

6

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

8

Toro 1-543513

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 107-2107

FLOORPAN ASM

$

$

Not available

11:2

Toro 1-633553

PAD-ANTISKID

$12.99

$

In Stock, Qty 15

0

11:3

Toro 106-7451

DECAL

$27.99

$

In Stock, Qty 5

0

11:4

Toro 107-2112

DECAL-WARNING

$18.99

$

In Stock, only 4 left!

0

12

Toro 1-653049

HINGE-FLOORPAN

$47.99

$

Usually ships in 3-6 days

0

13

Toro 99-3930

FOOTREST ASM

$212.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-3924

DECAL-SERVICE

$

$

Not available

13:3

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 10

0

13:4

Toro 1-633553

PAD-ANTISKID

$12.99

$

In Stock, Qty 15

0

14

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 99-3870-01

BRACKET-FLOORPAN

$

$

Not available

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 105-2625

DECAL-STD, SAFETY

$

$

Not available

20

Toro 107-1783

FRONT FRAME ASM

$

$

Not available

20:2

Toro 1-633818

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

21

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

22

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, Qty 6

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 103-1987

Front Spring ASM

$88.99

$

In Stock, only 1 left!

0

33

Toro 107-1791-01

LH FRONT DECK LIFT ASM

$

$

Not available

34

Toro 107-1792-01

RH FRONT DECK LIFT ASM

$

$

Not available

35

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 17

0

36

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

38

Toro 254-72

BEARING-CUP, TAPERED

$9.99

$

In Stock, Qty 20+

0
