74162 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240003000) (2004) IGNITION/ELECTRICAL ASSEMBLY KOHLER CV493S-27520 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

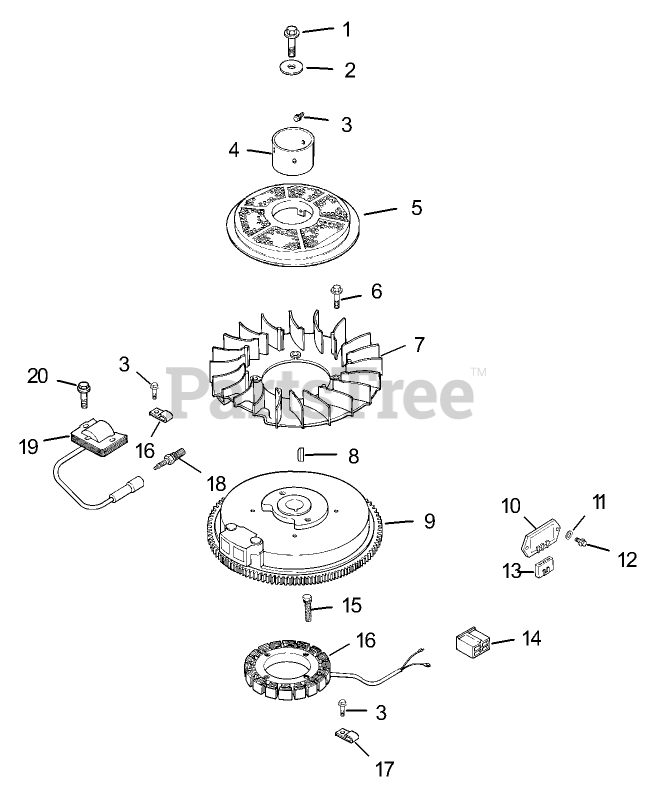

IGNITION/ELECTRICAL ASSEMBLY KOHLER CV493S-27520 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

2

Kohler 12 468 03-S

WASHER-FLAT (13/32)

$6.49

$

In Stock, only 1 left!

0

3

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, Qty 13

0

4

Kohler 12 109 03-S

Cup-Mounting, Screen

$

$

Not available

5

Kohler 12 162 09-S

Screen-Grass

$40.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 12 157 03-S

Fan

$

$

Not available

8

Kohler X-42-15-S

KEY (3/16 X 5/8)

$2.99

$

In Stock, only 2 left!

0

9

Kohler 12 025 53-S

Flywheel
(Superseded to 12 025 49-S)

$

$

Not available

10

Kohler 41 403 09-S

Rectifier-Regulator
(Superseded to 41 403 10-S)

$105.99

$

In Stock, only 2 left!

0

11

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

$2.49

$

In Stock, Qty 5

0

12

Kohler M-639016-S

Screw-HF (M6x1.0x16)

$2.49

$

In Stock, only 3 left!

0

13

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 11

0

14

Kohler 41 155 02-S

Connector (5 contact)

$2.99

$

Usually ships in 2-5 days

0

15

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

16

Kohler 237878-S

Kit, stator (Includes Terminal 25 452 01-S)

$149.99

$

In Stock, Qty 10

0

17

Kohler X-728-1-S

Clip

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

$20.99

$

Usually ships in 2-5 days

0

19

Kohler 12 584 04-S

Module-Ignition

$32.99

$

In Stock, Qty 17

0

20

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

Usually ships in 2-5 days

0

Kohler X-25-5-S

Washer-Steel

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 518 05-S

Lead

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 12 518 01-S

Lead

Note: Not illustrated

$19.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Not illustrated

$4.99

$

In Stock, only 1 left!

0
