74167 TE (Z 153) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) DECK ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

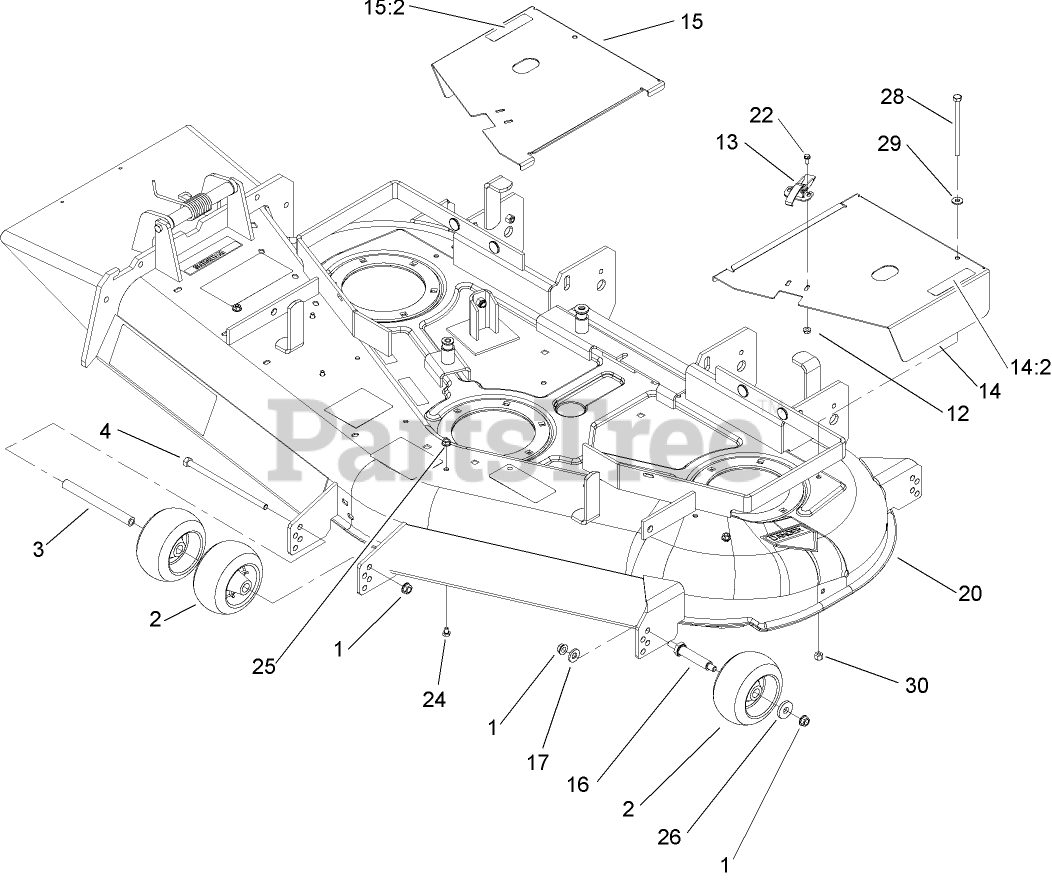

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

3

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

4

Toro 323-28

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

13

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

14

Toro 107-3986

LH COVER ASM

$

$

Not available

14:2

Toro 98-1977

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

15

Toro 107-3985

RH COVER ASM

$

$

Not available

15:2

Toro 98-1977

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

16

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

17

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Toro 107-3989

DECK AND DEFLECTOR ASM

$3696.99

$

Usually ships in 3-6 days

0

22

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

24

Toro 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

28

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
