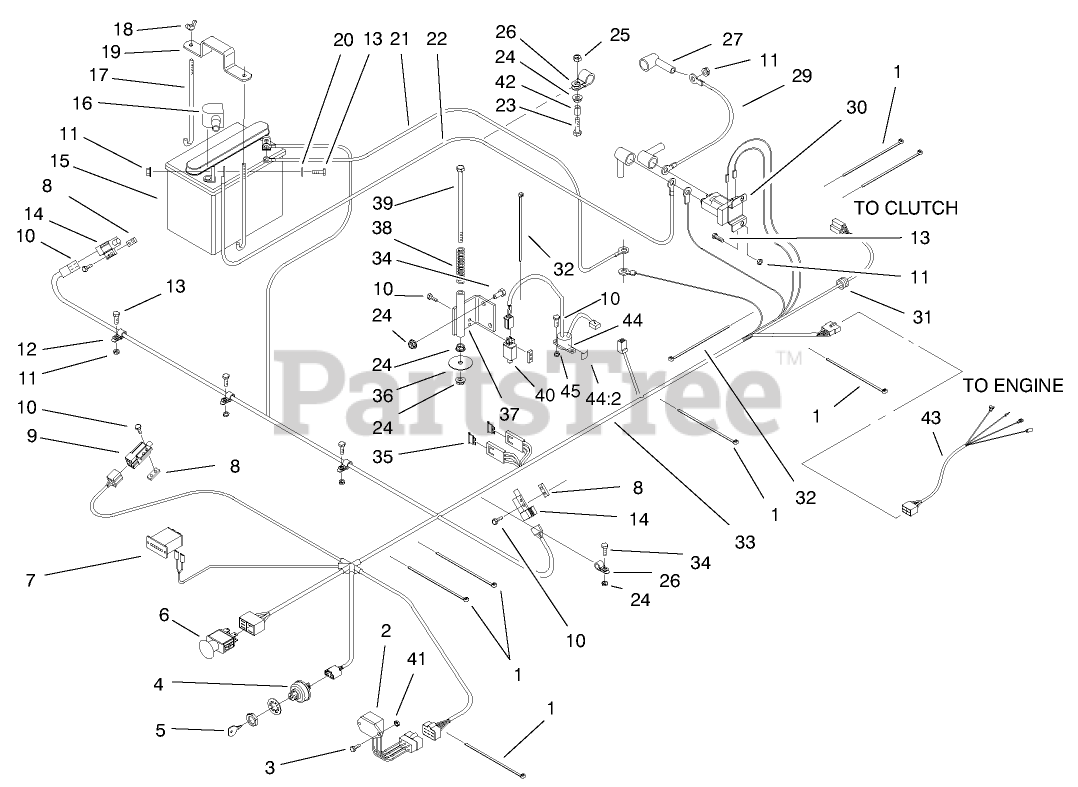

74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) Electrical System Assembly Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical System Assembly Parts Diagram

  • Title

1

Toro E303335

See Supercession: 1-303335
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2

Toro E543316

See Supercession: 1-543316
(Superseded to 1-543316)

$207.99

$

In Stock, only 2 left!

0

3

Toro E807533

See Supercession: 1-807533
(Superseded to 1-807533)

$1.99

$

In Stock, Qty 12

0

4

Toro E543070

See Supercession: 1-543070
(Superseded to 1-543070)

$47.99

$

In Stock, Qty 15

0

5

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

6

Toro E633673

See Supercession: 103-5221
(Superseded to 103-5221)

$63.99

$

In Stock, Qty 7

0

7

Toro E513374

See Supercession: 1-513374
(Superseded to 1-513374)

$76.99

$

In Stock, Qty 5

0

8

Toro E633181

See Supercession: 1-633181
(Superseded to 1-633181)

$7.49

$

In Stock, only 3 left!

0

9

Toro E633110

See Supercession: 1-633110
(Superseded to 1-633110)

$25.99

$

In Stock, Qty 5

0

10

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro E323229

See Supercession: 1-323229
(Superseded to 1-323229)

$3.49

$

Usually ships in 3-6 days

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro E633111

See Supercession: 1-633111
(Superseded to 1-633111)

$23.99

$

In Stock, Qty 5

0

15

Toro E603479

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

16

Toro E543391

See Supercession: 109-2407
(Superseded to 109-2407)

$5.99

$

In Stock, only 2 left!

0

17

Toro E633651

See Supercession: 1-633651
(Superseded to 1-633651)

$8.99

$

In Stock, Qty 20+

0

18

Toro E543792

See Supercession: 1-543792
(Superseded to 1-543792)

$6.99

$

In Stock, Qty 20+

0

19

Toro E633652

See Supercession: 1-633652-03
(Superseded to 1-633652-03)

$24.99

$

In Stock, only 3 left!

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

21

Toro E523282

DISCONTINUED
(Superseded to 1-523282)

$

$

Not available

22

Toro E523281

See Supercession: 109-7630
(Superseded to 109-7630)

$46.99

$

In Stock, only 2 left!

0

23

Toro E800279

See Supercession: 322-12
(Superseded to 322-12)

$2.49

$

In Stock, Qty 13

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro E804256

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

26

Toro E633396

See Supercession: 1-633396
(Superseded to 1-633396)

$5.99

$

Usually ships in 3-6 days

0

27

Toro E543393

See Supercession: 1-543393
(Superseded to 1-543393)

$5.99

$

Usually ships in 3-6 days

0

29

Toro E633306

See Supercession: 109-7620
(Superseded to 109-7620)

$

$

Not available

30

Toro E513075

See Supercession: 117-1197
(Superseded to 117-1197)

$50.99

$

Usually ships in 3-6 days

0

31

Toro E543286

See Supercession: 1-543286
(Superseded to 1-543286)

$13.99

$

Usually ships in 3-6 days

0

32

Toro E303287

See Supercession: 1-303287
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

33

Toro E653154

See Supercession: 1-653154
(Superseded to 1-653154)

$378.99

$

In Stock, only 2 left!

0

34

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro E816001

See Supercession: 1-816001
(Superseded to 1-816001)

$6.99

$

In Stock, only 3 left!

0

36

Toro E653036

See Supercession: 1-653036
(Superseded to 1-653036)

$5.99

$

In Stock, only 2 left!

0

37

Toro E652072

See Supercession: 1-652072-03
(Superseded to 1-652072-03)

$

$

Not available

38

Toro E523415

See Supercession: 1-523415
(Superseded to 1-523415)

$37.99

$

In Stock, only 1 left!

0

39

Toro E800282

See Supercession: 1-800282
(Superseded to 1-800282)

$5.99

$

In Stock, only 1 left!

0

40

Toro E513152

See Supercession: 1-513152
(Superseded to 1-513152)

$14.99

$

In Stock, Qty 10

0

41

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro E633082

See Supercession: 1-633082
(Superseded to 1-633082)

$12.99

$

In Stock, only 1 left!

0

43

Toro E613262

See Supercession: 1-613262
(Superseded to 1-613262)

$45.99

$

Usually ships in 3-6 days

0

44

Toro E644427

See Supercession: 112-8349
(Superseded to 112-8349)

$

$

Not available

44:2

Toro E643401

See Supercession: 1-643401
(Superseded to 1-643401)

$6.49

$

Usually ships in 3-6 days

0

45

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+
