74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) FUEL SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

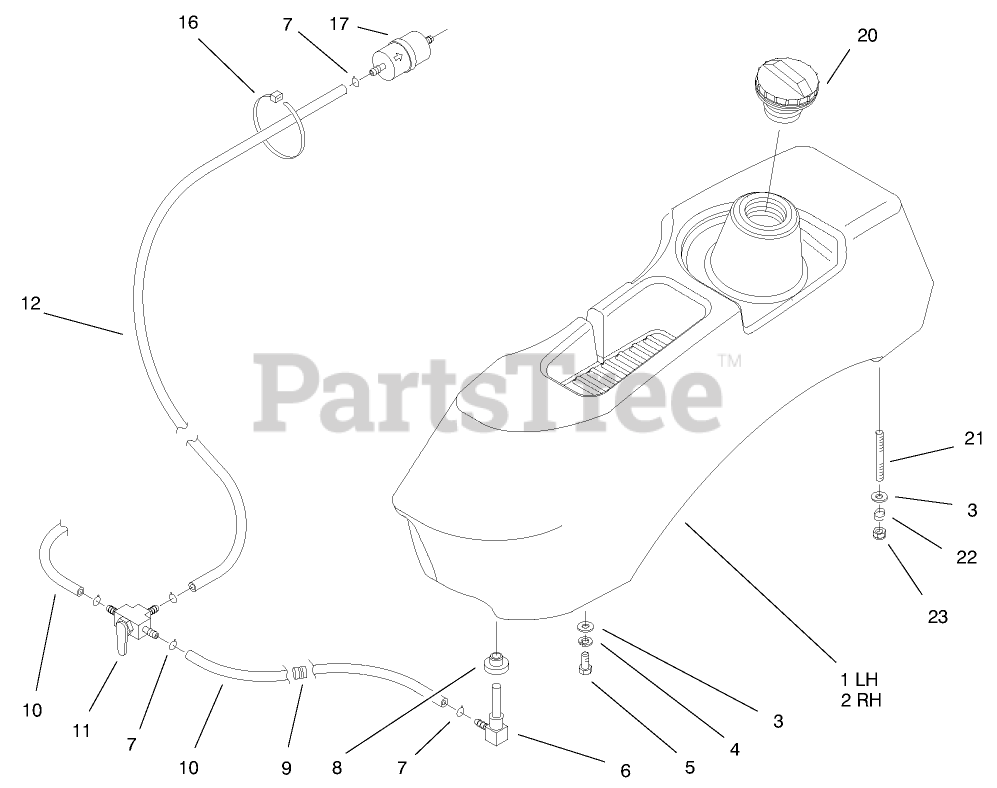

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 99-4606

TANK-FUEL, LH
(Superseded to 108-2753)

$

$

Not available

2

Toro 99-4605

TANK-FUEL, RH
(Superseded to 105-3639)

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro E543277

Elbow
(Superseded to 1-543277)

$13.99

$

In Stock, Qty 20+

0

7

Toro E303007

Clamp
(Superseded to 1-303007)

$5.49

$

In Stock, Qty 11

0

8

Toro E513645

Bushing
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

9

Toro E543296

Grommet-Fuel Line
(Superseded to 1-543296)

$8.99

$

In Stock, only 3 left!

0

10

Toro E543526

Fuel Line
(Superseded to 109-0302)

$13.99

$

In Stock, only 3 left!

0

11

Toro E633347

Valve-Fuel Line
(Superseded to 1-633347)

$79.99

$

In Stock, Qty 8

0

12

Toro E633348

Fuel Line
(Superseded to 1-633348)

$20.99

$

In Stock, only 1 left!

0

16

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

17

Toro 49019-7001

Filter-Fuel

$

$

Not available

20

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$30.99

$

In Stock, only 2 left!

0

21

Toro E633023

Stud
(Superseded to 1-633023)

$6.99

$

In Stock, only 2 left!

0

22

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

In Stock, Qty 12

0

23

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0
