74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) BLADE, SPINDLE AND BELT ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

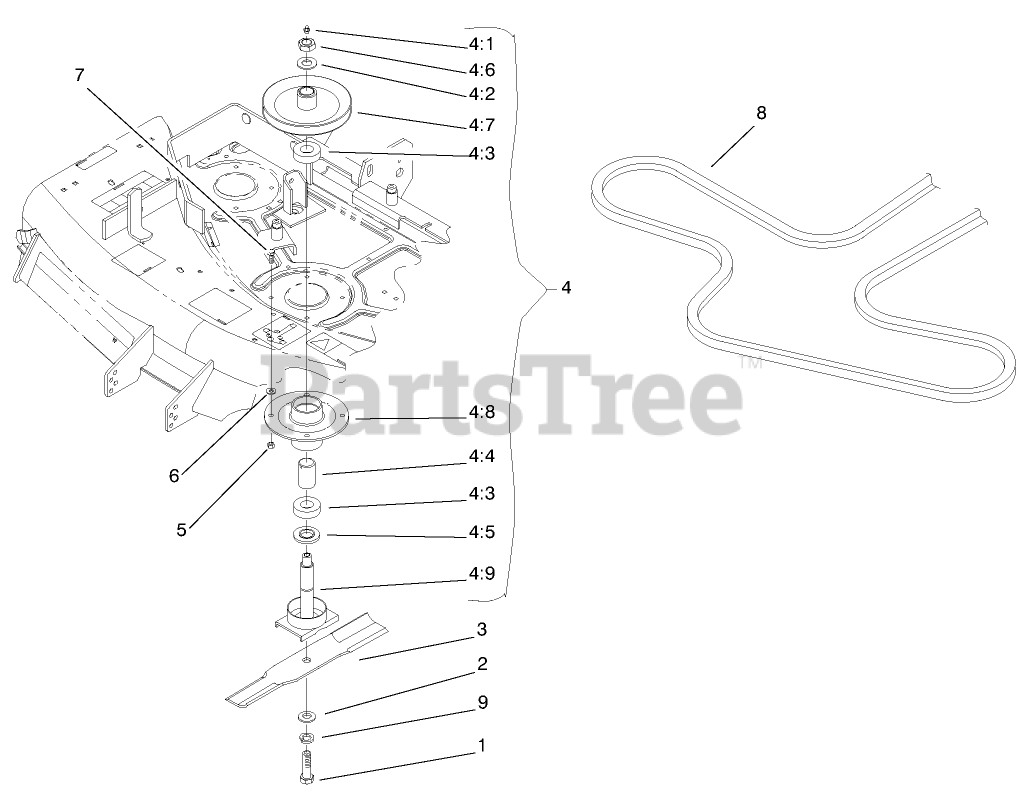

BLADE, SPINDLE AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 19

0

2

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

3

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$31.99

$

In Stock, only 4 left!

0

4

Toro 99-3934

Spindle Housing ASM
(Superseded to 100-3977)

$330.99

$

In Stock, only 1 left!

0

4:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

4:2

Toro 7-4150

WASHER

$1.49

$

In Stock, only 2 left!

0

4:3

Toro 251-257

BEARING-BALL

$14.99

$

In Stock, only 3 left!

0

4:4

Toro 67-7580

SPACER-BEARING

$

$

Not available

4:5

Toro 67-7570

SPACER-SPINDLE

$14.99

$

In Stock, only 2 left!

0

4:6

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

4:7

Toro 99-4631

PULLEY ASM

$

$

Not available

4:8

Toro 67-7590

HOUSING-SPINDLE

$350.99

$

Usually ships in 3-6 days

0

4:9

Toro 99-3912

SPINDLE SHAFT ASM

$261.99

$

In Stock, only 1 left!

0

5

Toro 32151-1

7/8X046 IN SNAP RING

$0.99

$

Usually ships in 3-6 days

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 98-3780

V-BELT, DRIVE

$133.99

$

In Stock, only 3 left!

0

9

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
