74173 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) AIR-FILTER/MUFFLER ASSEMBLY KAWASAKI FH601V-S07 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

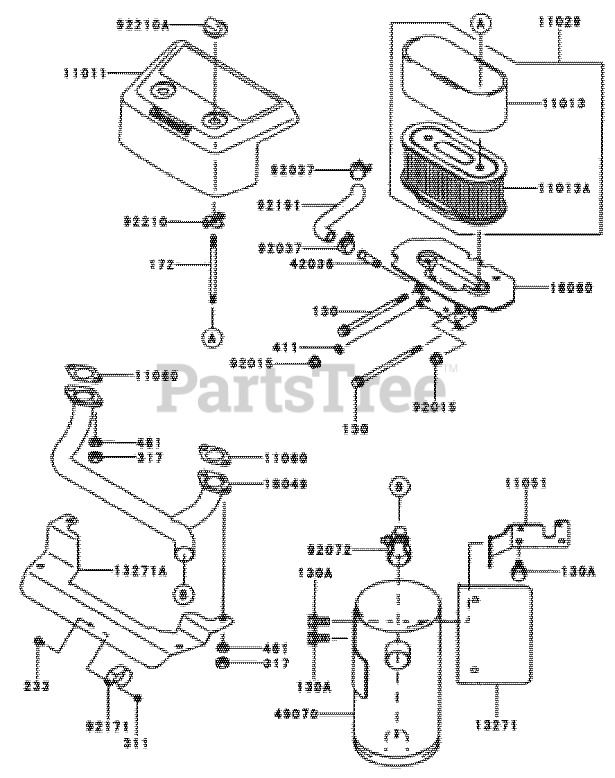

AIR-FILTER/MUFFLER ASSEMBLY KAWASAKI FH601V-S07 Parts Diagram

  • Title

461

Toro 461F0800

Washer-Spring (8mm)

$

$

Currently unavailable

11011

Kawasaki 11011-7003

Case-Air Filter
(Superseded to 11011-6001)

$26.99

$

In Stock, Qty 14

0

11013

Kawasaki 11013-7009

Element-Filter, Air
(Superseded to 11013-7003)

$7.49

$

In Stock, Qty 20+

0

11013A

Toro 11013-7010

Element-Air Filter

$

$

Currently unavailable

11029

Kawasaki 11029-7002

Element-Assy-AirFilter
(Superseded to 11029-7012)

$26.99

$

In Stock, only 2 left!

0

11051

Kawasaki 11051-7002-9H

Bracket

$10.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

Gasket-Muffler

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7008-9X

Plate

$24.99

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-7009-9X

Plate
(Superseded to 13271-7009)

$42.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7001

Pipe-Intake
(Superseded to 16060-6005)

$42.99

$

Usually ships in 2-5 days

0

18049

Kawasaki 18049-7003

Pipe-Exhaust
(Superseded to 18088-7007)

$123.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7002

Sleeve

$

$

Not available

49070

Kawasaki 49070-7004

Muffler-Comp
(Superseded to 49070-7013)

$234.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 92037-2079

Clamp
(Superseded to 92173-7003)

$2.49

$

In Stock, only 4 left!

0

92072

Toro 92072-7005

Band

$

$

Currently unavailable

92171

Kawasaki 92171-7002

Clamp

$6.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-7006

Tube

$

$

Not available

92210

Kawasaki 92210-7004

NUT (M6)

$3.49

$

In Stock, Qty 20+

0

92210A

Toro 92210-7008

Nut

$

$

Currently unavailable

130

Kawasaki 130B06105

Bolt-Flanged (6X10.5 )
(Superseded to 130AA06105)

$2.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

172

Kawasaki 172G0690

Bolt-Stud (6X90)
(Superseded to 172BA0690)

$3.49

$

In Stock, Qty 17

0

233

Kawasaki 233B0416

SCREW (4X16)
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0

311

Toro 311B0400

Nut-Hex (4mm)

$

$

Currently unavailable

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 20+

0

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 11

0
