74174 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 3 OIL PAN/LUBRICATION ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

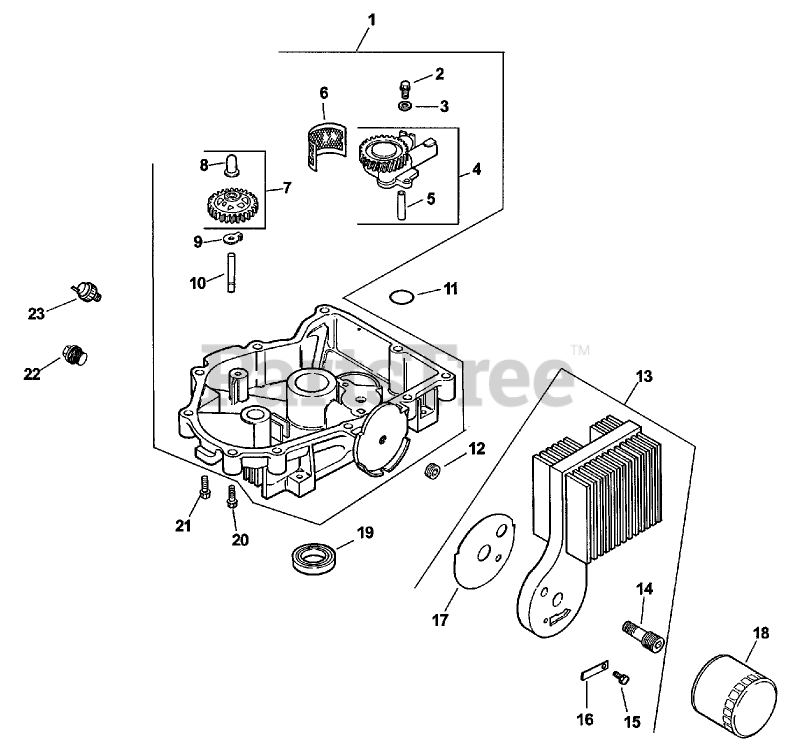

GROUP 3 OIL PAN/LUBRICATION ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 199 07-S

Pan, oil assembly (Includes 2-10)
(Superseded to 24 199 35-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$337.99

$

In Stock, only 2 left!

0

2

Toro M-0645025-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

Toro M-0631005-S

Washer-Flat

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

Kohler 24 393 08-S

Oil pump assembly (Includes 5)
(Superseded to 24 393 51-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 24 123 05-S

Tube, oil pickup
(Superseded to 24 381 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 24 162 26-S

Screen-oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, only 3 left!

0

7

Kohler 24 043 12-S

Kit, governor gear w/pin (Includes 8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$76.99

$

In Stock, Qty 6

0

8

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 20+

0

9

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

10

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 12

0

11

Kohler 24 153 08-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

In Stock, Qty 20+

0

12

Kohler X-75-32-S

Plug, hex. ctsk. 3/8"
(Superseded to 25 139 62-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

13

Kohler 24 755 52-S

Kit, oil cooler (Includes 14-17)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 28 136 01-S

Nipple-Filter, Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

Usually ships in 2-5 days

0

15

Kohler M-448010-S

Screw, hex. cap

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 24 402 02-S

Reed-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

Kohler 24 041 29-S

Gasket-Adapter, Oil Filter
(Superseded to 24 041 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, Qty 5

0

18

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

19

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 20+

0

20

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 20+

0

21

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 20+

0

22

Kohler X-75-10-S

Plug, Sq. Hd.
(Superseded to 25 139 57-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

23

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, Qty 5

0
