74174 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 9 ENGINE CONTROLS ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

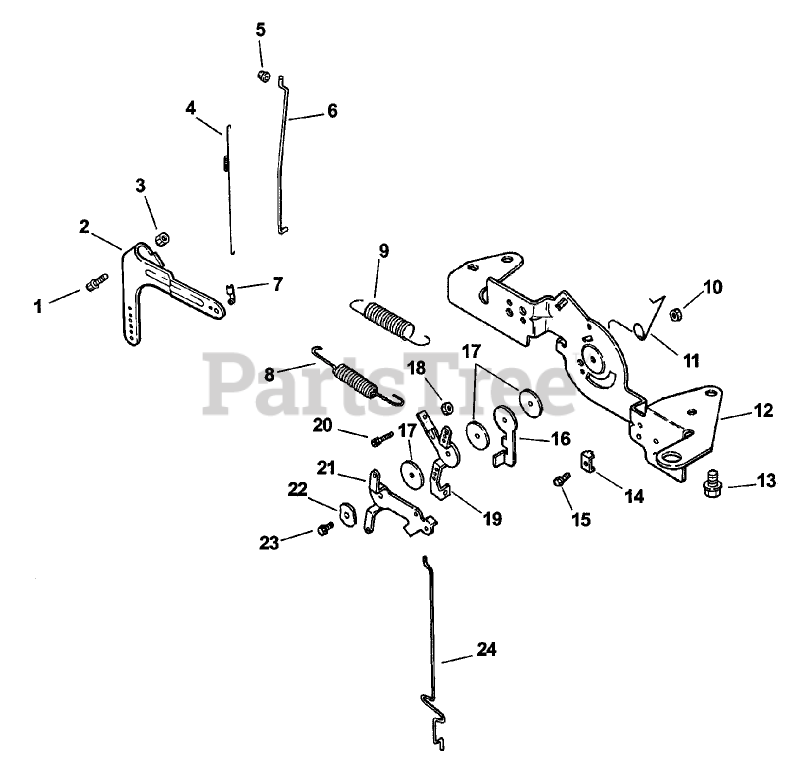

GROUP 9 ENGINE CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro SM-0642025-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

Kohler 24 090 14-S

Lever-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Toro M-0641060-S

Nut-Hex Flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

Kohler 24 089 01-S

SPRING-LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 8

0

5

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 14

0

6

Kohler 24 079 04-S

LINKAGE-THROTTLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 20+

0

8

Kohler 24 089 51-S

Spring-Limiter, Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

9

Kohler 24 089 15-S

Spring-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0

10

Toro M-0547050-S

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

11

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 1 left!

0

12

Kohler 24 126 56-S

Bracket-Control
(Superseded to 24 126 263-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

In Stock, only 1 left!

0

13

Toro M-0645016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

14

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 1 left!

0

15

Toro M-0545016-S

Screw, hex. flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

16

Kohler 24 090 07-S

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

17

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

18

Toro M-0446030-S

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

19

Kohler 24 090 03-S

Lever-Control, Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

Usually ships in 2-5 days

0

20

Toro M-0403025-S

Screw, hex. cap

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

21

Kohler 24 090 05-S

LEVER-CHOKE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 5

0

22

Kohler 41 468 03-S

WASHER-SPRING (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

23

Toro M-0545020-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

24

Kohler 24 079 05-S

Linkage, choke
(Superseded to 24 079 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0
