74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) MAIN FRAME ASSEMBLY Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

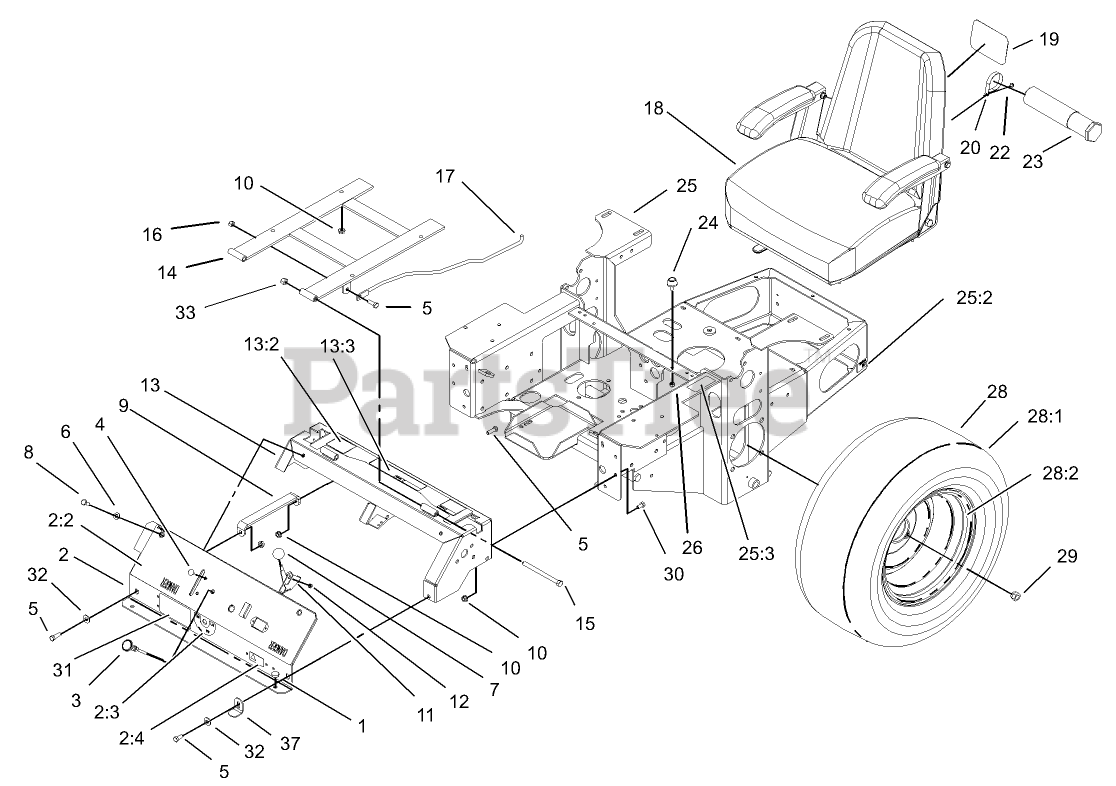

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

2

Toro 106-6591

Console ASM

$

$

Not available

2:2

Toro 106-6590

DECAL-PANEL, CONTROL

$

$

Not available

2:3

Toro 99-8937

DECAL-VALVE, FUEL

$

$

Not available

2:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

3

Toro 1-603336

CONTROL-CHOKE

$38.99

$

In Stock, Qty 13

0

4

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 1-653089-03

BRACKET
(Superseded to 103-7935-03)

$

$

Not available

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 1-633696

THROTTLE CABLE ASM

$59.99

$

In Stock, Qty 16

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 105-6124

CONSOLE

$

$

Not available

13:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

13:3

Toro 99-8944

DECAL-BATTERY

$

$

Not available

14

Toro 1-632187-03

FRAME-SEAT
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 103-1731

ROD-RETAINER, SEAT

$19.99

$

In Stock, only 1 left!

0

18

Toro 1-633705

SEAT ASM

$1388.99

$

Usually ships in 3-6 days

0

19

Toro 99-4693

DECAL

$22.99

$

In Stock, Qty 5

0

20

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

22

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

24

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

25

Toro 106-6557

Main Frame ASM

$

$

Not available

25:2

Toro 93-8069

DECAL-SURFACE, HOT

$12.99

$

Usually ships in 3-6 days

0

25:3

Toro 105-6183

Decal-Release, Drive

$

$

Not available

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Toro 1-653010

WHEEL AND TIRE ASM

$518.99

$

Usually ships in 3-6 days

0

28:1

Toro 1-653160

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

28:2

Toro 1-653158

WHEEL

$185.99

$

Usually ships in 3-6 days

0

29

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

30

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Toro 99-4603

DECAL-Z147

$

$

Not available

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 99-8947-03

STOP-COVER

$

$

Not available
